15021 S - Troy-Bilt Junior V Rear-Tine Tiller (SN: M0100970 - M0108416) TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

Junior V Rear-Tine Tiller

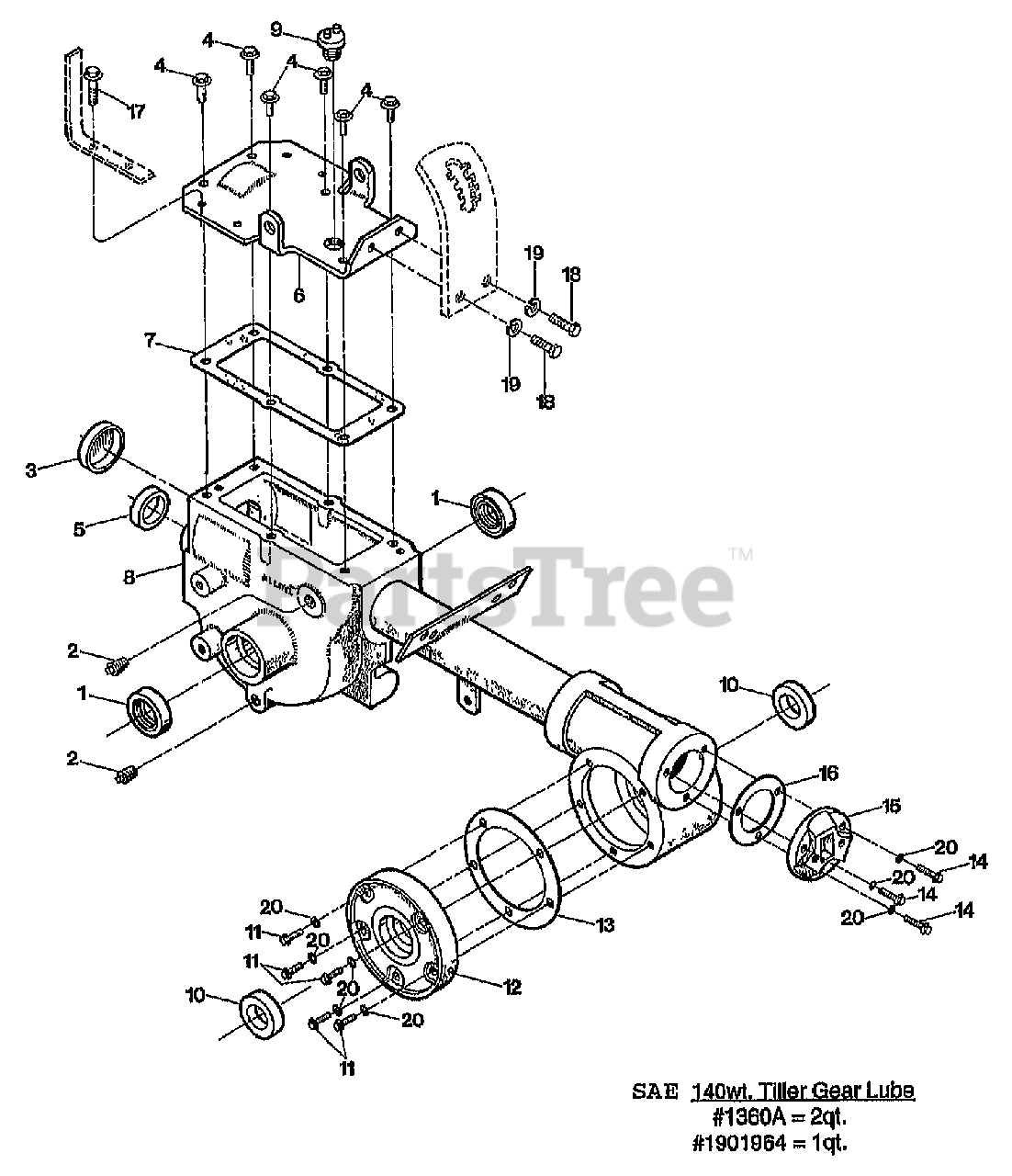

TRANSMISSION HSG. & SEALS/GASKETS Parts Diagram

  • Title
1

Troy-Bilt 9621

SEAL-OIL-DOUBLE LIP, WHEEL SHAFT, RH & LH
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT, OIL LEVEL HOLE & GEAR OIL DRAIN HOLE.
(Superseded to 1105620)

$4.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 97076

SEAL-BORE TRANSMISSION
(Superseded to 721-04001)

$10.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 90044

SCR-HFLK 5/16-18X.75 ZP

$

$

Currently unavailable

5

Troy-Bilt 9600

SEAL-PINION SHAFT PT/85030/00

$

$

Currently unavailable

6

Troy-Bilt 11513

KIT-COVER TRANS W/HDW (INCL. FOUR NO. 17 & TWO EA. OF NO. 18 & 19)

$

$

Currently unavailable

7

Troy-Bilt 20694

GASKET-TRANS COVER
(Superseded to GW-20694P)

$5.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 50262

ASSM-TRANS A-UNIT JR W/UP

$

$

Currently unavailable

9

Troy-Bilt 9467

PLUG-OIL FILL 3/4-10 FOR GEAR OIL FILL HOLE ON TRANSMISSION COVER.
(Superseded to GW-9467)

$5.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 97073

SEAL-TILLER SHAFT TILLER SHAFT RH & LH
(Superseded to 921-04035)

$11.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 9780

SCR-HH 1/4-20X.625

$

$

Currently unavailable

12

Troy-Bilt 20873

COVER-TILLER HSG MACH TILLER HOUSING LH ( INCL. 5 SCREWS NO.11)
(Superseded to GW-20873)

$108.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1129-1

GASKET-TILLER COVER .010" THICK (FITS ALL COVERS)
(Superseded to GW-1129-1099)

$8.99

$

In Stock, Qty 17

0

14

Troy-Bilt 9773

SCR-HFLK 1/4-20X.875

$

$

Currently unavailable

15

Troy-Bilt 1115

CAP-REAR #1115

$

$

Currently unavailable

16

Troy-Bilt 1124-2

GASKET-BRG COVER
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 18

0

17

Troy-Bilt 90045

SCR-HFLK 5/16-18X1.00 ZP

$

$

Currently unavailable

18

Troy-Bilt 9709

SCR-HH 3/8-16X.75 G5 ZP

$

$

Currently unavailable

19

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

20

0

WASHER, NYLON

$

$

Not available

Troy-Bilt 1360A

OIL (1901964)

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
