150202-0009-H8 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

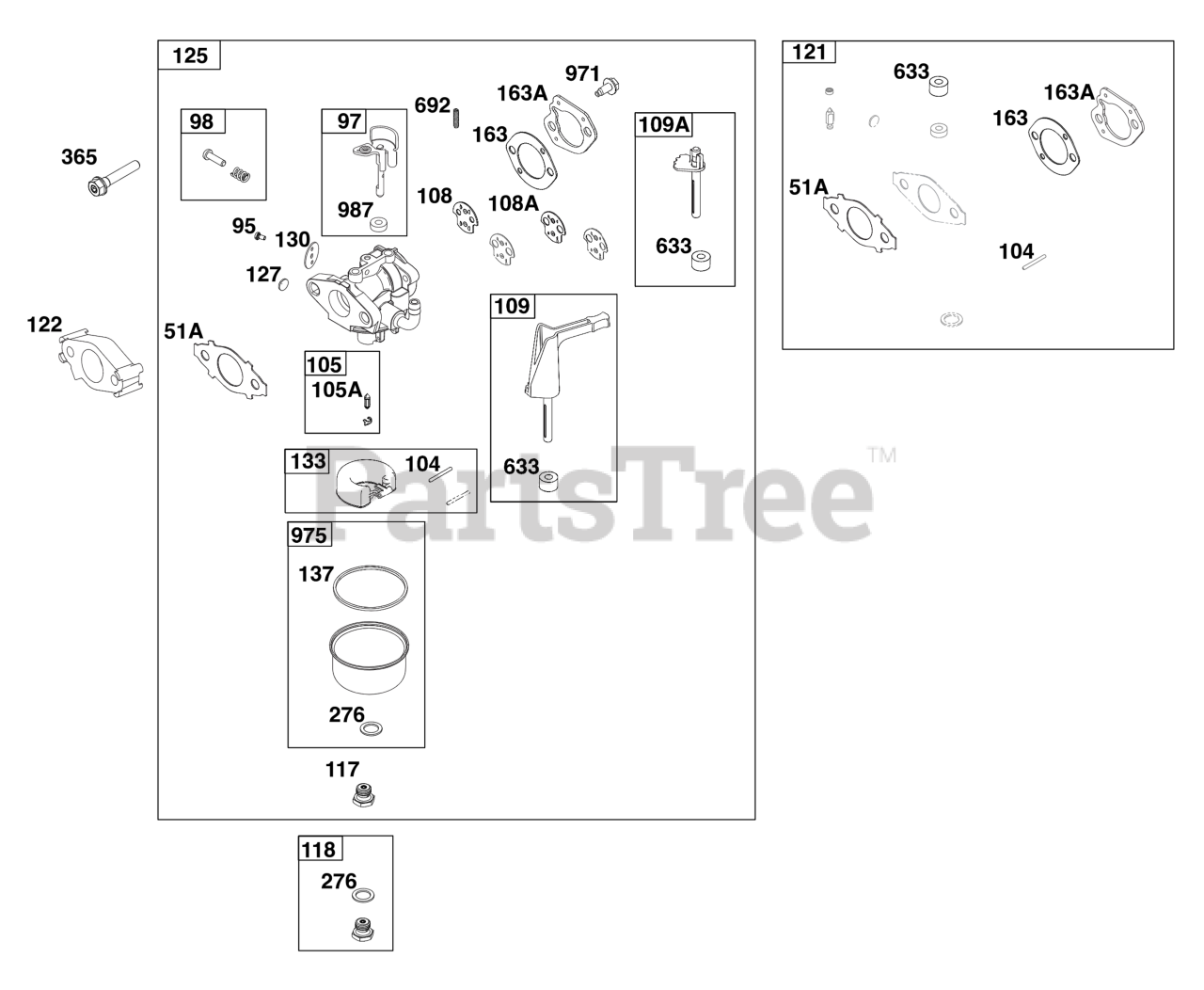

Carburetor Group Parts Diagram

  • Title
51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 691636

Screw (Throttle Valve)

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 797628

Shaft-Throttle

$28.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 797156

Kit-Idle Speed

$12.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 797622

Pin-Float Hinge

$3.99

$

In Stock, Qty 10

0

105

Briggs & Stratton 595324

Valve-Float Needle

$18.99

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 797139

Valve-Float Needle

$15.99

$

In Stock, only 4 left!

0

108

$9.49

$

Usually ships in 2-12 days

0

108A

$9.49

$

In Stock, only 2 left!

0

109

$28.99

$

In Stock, Qty 9

0

109A

$16.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 798652

Jet-Main

Note: (Standard)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 799178

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 792006

Kit-Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$28.99

$

In Stock, Qty 20+

0

122

Briggs & Stratton 791717

Spacer-Carburetor

$13.99

$

Usually ships in 2-12 days

0

125

$92.99

$

In Stock, only 1 left!

0

127

$4.99

$

In Stock, only 2 left!

0

130

Briggs & Stratton 797630

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 797136

Float-Carburetor

$14.99

$

In Stock, only 2 left!

0

137

Briggs & Stratton 797625

Gasket-Float Bowl

$7.99

$

In Stock, Qty 8

0

163

Briggs & Stratton 696024

Gasket-Air Cleaner

$5.99

$

In Stock, Qty 20+

0

163A

Briggs & Stratton 792870

Gasket-Air Cleaner

$6.49

$

In Stock, only 4 left!

0

276

Briggs & Stratton 797632

Washer-Sealing

$7.99

$

In Stock, Qty 12

0

365

Briggs & Stratton 699484

Screw

Note: (Carburetor/Throttle Body)

$3.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

692

Briggs & Stratton 797624

Spring-Detent

$5.49

$

Usually ships in 2-12 days

0

971

SCREW

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

975

$43.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 797629

SEAL, Choke/Throttle Shaft

$4.49

$

In Stock, only 1 left!

0
