15020 S - Troy-Bilt Pony VII Rear-Tine Tiller (SN: S0242650 - S0254903) ELECTRIC START ASSEMBLY Parts Diagram

Pony VII Rear-Tine Tiller

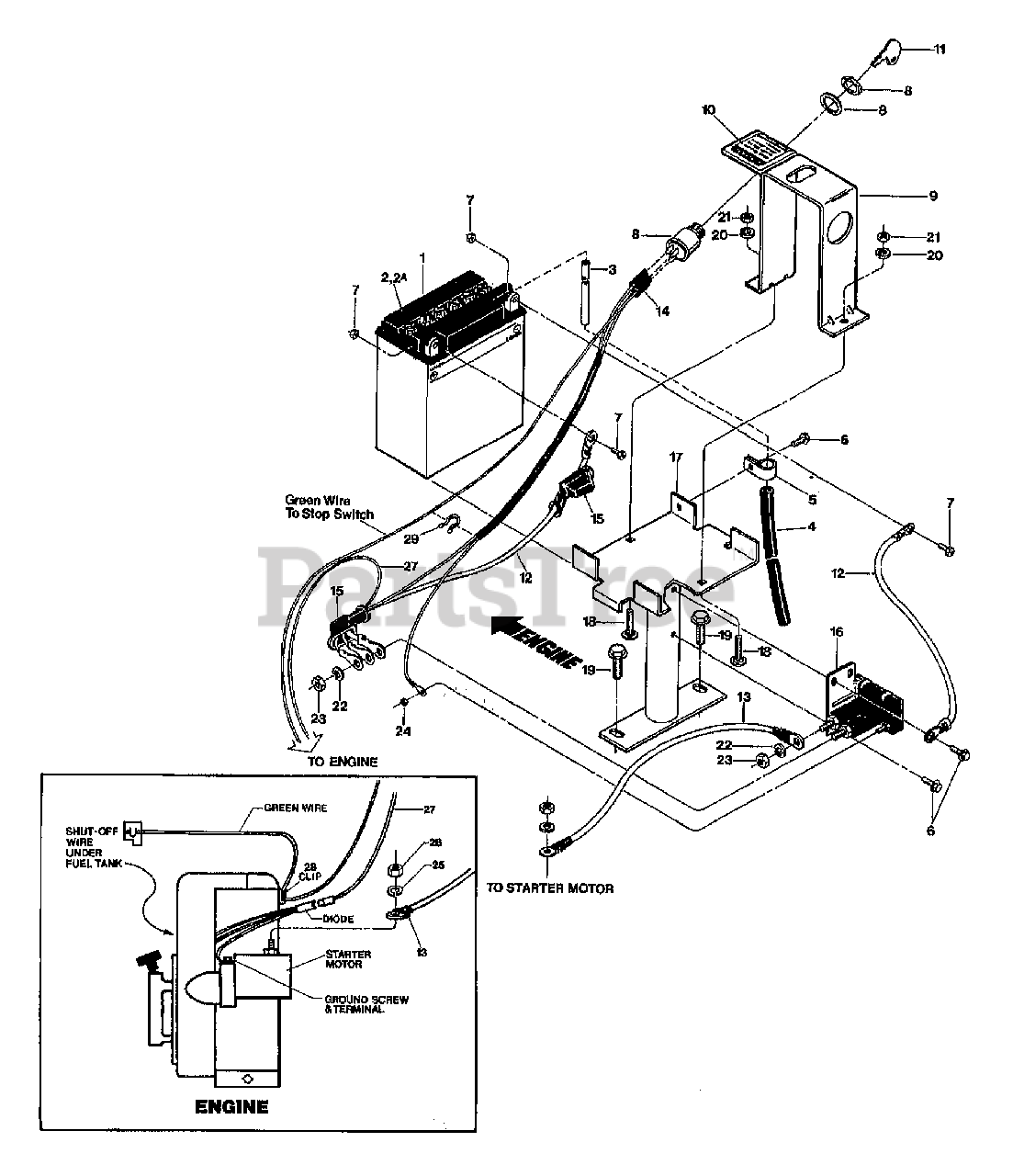

ELECTRIC START ASSEMBLY Parts Diagram

  • Title
1

MTD 96512

BATTERY - 12 VOLT, 12 AMPHERE (INCL. 7)

$

$

Not available

2

MTD 9462

CAP-YELLOW

$

$

Not available

2A

MTD 9248

CAP-BATTERY WHITE (PONY)

$

$

Not available

3

MTD 9009

TUBE-VENT BATTERY/HSE

$

$

Not available

4

MTD 1475

TUBING-RUBBER (HARD PLASTIC)

$

$

Not available

5

MTD 9224

CLAMP

$

$

Not available

6

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 11361

HDW PKG-BATTERY TERMINAL

$

$

Currently unavailable

8

Troy-Bilt 20897

ASSM-KEYSWITCH W/DECAL

$

$

Currently unavailable

9

Troy-Bilt 20898

KEY PLATE/CLAMP PNT

$

$

Currently unavailable

10

Troy-Bilt 20820

DECAL-KEYSWITCH

$

$

Currently unavailable

11

Troy-Bilt 9243

KEYS(1 PAIR) FOR SWITCH

$

$

Currently unavailable

12

MTD 96509

CABLE-BATTERY-12"

$

$

Not available

13

Troy-Bilt 96510

CABLE-BATTERY 12"
(Superseded to GW-96510)

$11.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 20857

ASSM-HARNESS 2647/20857 (AVAIL. AS COMPLETE ASSEMBLY ONLY).

$

$

Currently unavailable

?14A

MTD 1915337

KIT-ENG GROUND WIRE 15009

$

$

Not available

15

Troy-Bilt 97020

BOOT-BATTERY CABLE
(Superseded to GW-97020)

$

$

Not available

16

Troy-Bilt 96514

SOLENOID (INCL. NUTS & WASHER FOR CABLES AND WIRES)
(Superseded to GW-96514099)

$48.99

$

In Stock, Qty 6

0

17

Troy-Bilt 20837

BRKT-BATTERY OPC PNT
(Superseded to GW-20837)

$

$

Not available

18

MTD 9566

SCR-CARR 1/4-20X1.25

$

$

Not available

19

Troy-Bilt 90045

SCR-HFLK 5/16-18X1.00 ZP

$

$

Currently unavailable

20

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

21

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

22

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

23

Troy-Bilt 9826

NUT-HEX 5/16-24

$

$

Currently unavailable

24

Troy-Bilt 9853

NUT W/LKWASHER #10-32 ZP
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

25

0

LOCKWASHER - #10 (NOT AVAIL. FROM FACTORY)

$

$

Not available

26

0

NUT - HEX, #10-24 (NOT AVAIL. FROM FACTORY)

$

$

Not available

27

Troy-Bilt 1554

WIRE-RECHARGE 5&7 BRIGGS

$

$

Currently unavailable

28

Troy-Bilt 9218

CLIP-SPECIAL
(Superseded to GW-9218)

$

$

Not available

29

Troy-Bilt 9265

TIE-TWIST LOCK
(Superseded to GW-9265)

$

$

Not available
