15011 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: E0047261 & Above) MAIN DRIVE SHAFT & GEAR ASSEMBLY Parts Diagram

Econo-Horse Rear-Tine Tiller

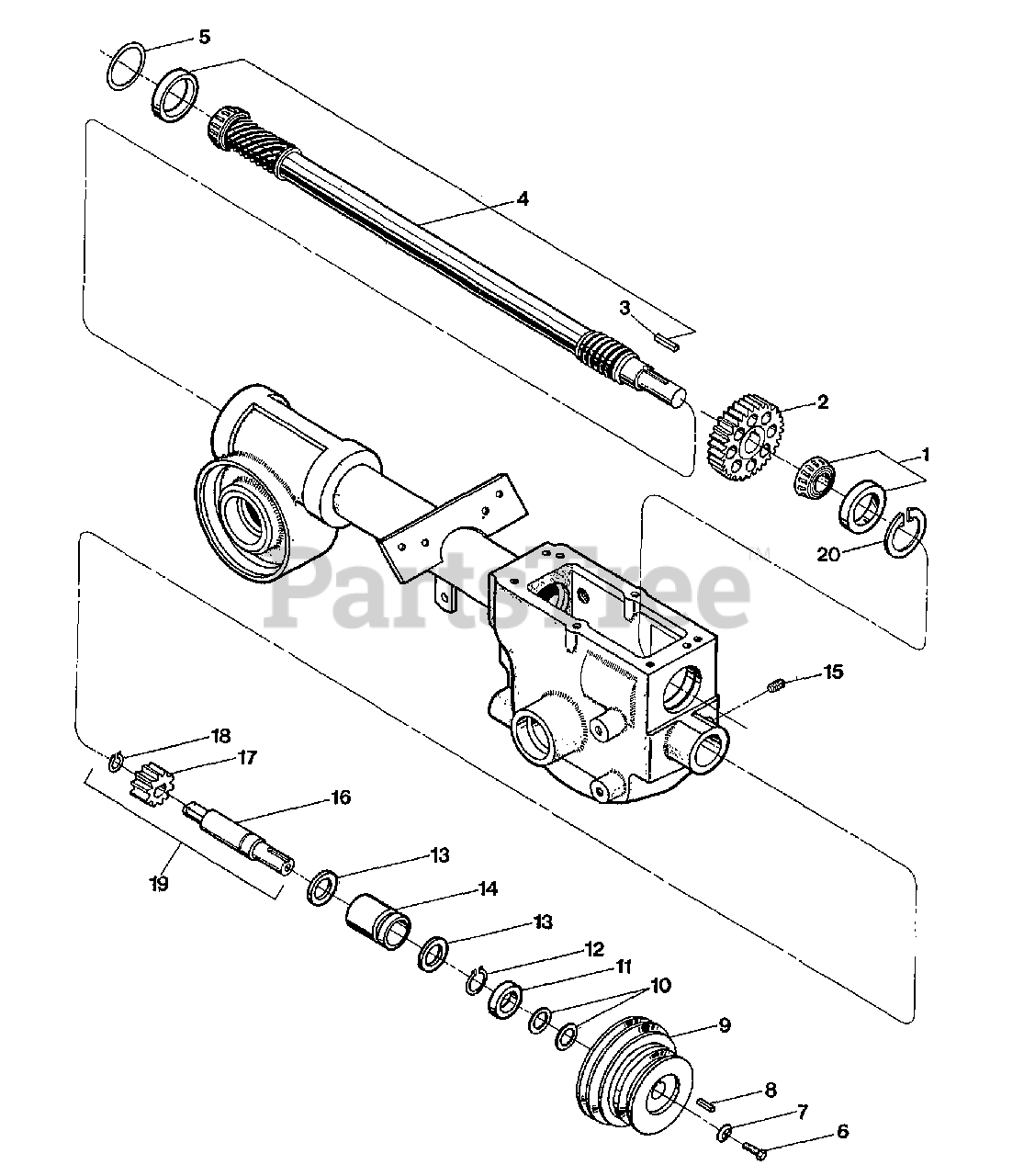

MAIN DRIVE SHAFT & GEAR ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 1714

KIT-BRG CONE&RACE-DRIVESHAFT (FRONT OF DRIVE SHAFT)
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

2

Troy-Bilt 20718

GEAR-SPUR 30 TEETH
(Superseded to 717-04690)

$39.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

4

MTD 11603

KIT-DRIVESHAFT SMFR

$

$

Not available

4

Troy-Bilt 10360

KIT-DRIVESHAFT

$

$

Not available

5

Troy-Bilt 1224-1

SHIM-1.75X1.5X.01
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1224-2

SHIM-1.75X1.5X.03
(Superseded to 736-04307)

$4.49

$

In Stock, only 3 left!

0

5

Troy-Bilt 1224-3

SHIM-1.75X1.5X.005
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1325C

SHIM SET-DRIVESHAFT-HORSE
(Superseded to GW-1325C)

$15.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 9655

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 15

0

7

Troy-Bilt 9944

WASHER-.827X.331X.098
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 19

0

8

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 20507

PULLEY-TRANS MACH, 3 GROOVES (TWO FOR FORWARD SPEEDS; ONE FOR REVERSE SPEEDS)

$

$

Currently unavailable

10

Troy-Bilt 1440

WASHER # .875 X .65 X .06
(Superseded to 736-04079)

$4.99

$

In Stock, Qty 7

0

11

Troy-Bilt 85030

SEAL-PINION SHAFT PT/85030/00

$

$

Currently unavailable

12

Troy-Bilt 9500

RING-RETAIN EXT .707 ID (SNAP-IN)
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 9953

WASHER-1.022X.752X .059
(Superseded to GW-9953)

$

$

Not available

14

Troy-Bilt 9428

BUSHING-1.24X.75X1.8 GRVD
(Superseded to GW-9428)

$37.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 9677

SCR-SS 5/16-18X.375
(Superseded to GW-9677)

$3.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 20791

SHAFT-PINION(P-V)
(Superseded to 711-05388)

$84.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 20792

GEAR-PINION P/M
(Superseded to 717-04689)

$22.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 9093

RING-BOWED EXT .461 ID
(Superseded to GW-9093)

$6.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 20799

PINION W/GEAR&SNAP RING (INCL. ONE EACH OF 16-18)
(Superseded to GW-20799)

$

$

Not available

20

Troy-Bilt 9517

RING-RETAINING 5000-181
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1360A

OIL GEAR LUBE 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL GEAR LUBE 1 QT 140WT

$

$

Currently unavailable
