15011 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: E0036752 - E0047260) HANDLE BARS & CONTROL LEVERS Parts Diagram

Econo-Horse Rear-Tine Tiller

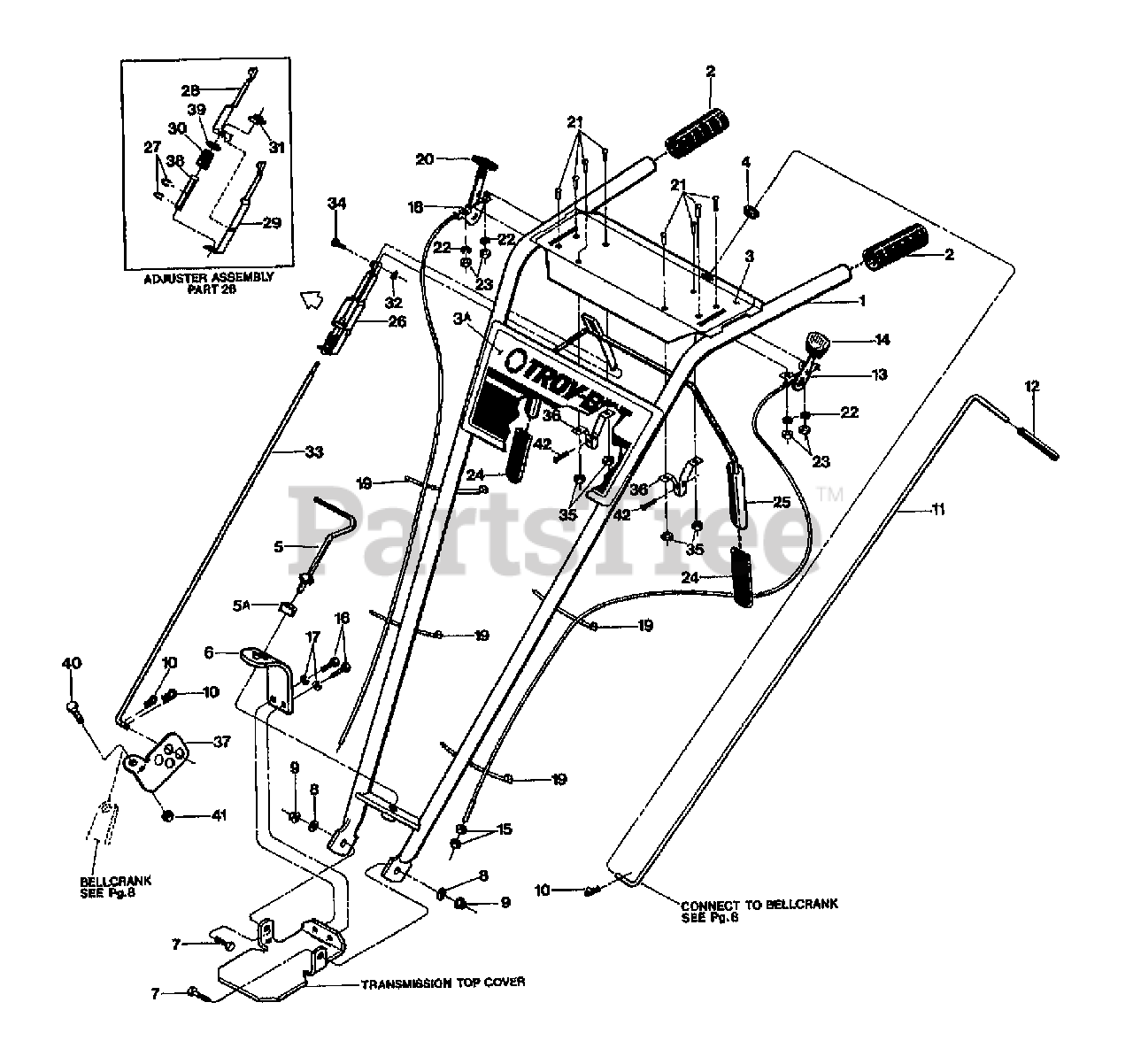

HANDLE BARS & CONTROL LEVERS Parts Diagram

  • Title

1

Troy-Bilt 2726

ASSM-HANDLEBAR W/GRIPS (INCL. 2,3,3A,4)

$

$

Currently unavailable

2

Troy-Bilt 9125

GRIP-H/BAR SMOOTH
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 2714

DECAL-CONTROL PANEL

$

$

Currently unavailable

3A

Troy-Bilt 2723

DECAL-GRAPHICS PANEL ECONO (NAME & LOGO)

$

$

Currently unavailable

4

MTD 9251

BUSHING-NYLON (PART OF OPERATOR CONTROL PANEL)

$

$

Not available

5

MTD 20703

ASSM-STUD H/B

$

$

Not available

5A

Troy-Bilt 9955

WASHER-1.0X.38X.375
(Superseded to 736-04445)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 20753

PLATE-HANDLEBAR ADJUST

$

$

Currently unavailable

7

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

8

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE (HANDLEBAR ATTACHMENT)
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP (HANDLEBAR ATTACHMENT)
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

10

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

11

MTD 20830

ROD-REV W/GRIP OPC - COMPLETE (INCL. #9198)

$

$

Not available

12

Troy-Bilt 9198

GRIP-CONTROL ROD

$

$

Currently unavailable

13

Troy-Bilt 9442

CABLE-WHEEL CLUTCH OPC (INCL. 14,15,19,21-23)
(Superseded to GW-9442P)

$40.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 9057

KNOB-WHEEL DRIVE CABLE
(Superseded to GW-9057)

$8.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 9826

NUT-HEX 5/16-24

$

$

Currently unavailable

16

Troy-Bilt 9709

SCR-HH 3/8-16X.75 G5 ZP

$

$

Currently unavailable

17

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

18

Troy-Bilt 9445

CABLE-THROTTLE ECONO OPC (INCL. 20)

$

$

Currently unavailable

19

Troy-Bilt 9202

TIE-RED(PLASTIC) TO SECURE CABLES TO HANDLEBAR
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 9212

KNOB-THROTTLE CABLE
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

21

Troy-Bilt 9722

SCR-RH M10-32X.5 MACH

$

$

Currently unavailable

22

Troy-Bilt 9909

WASHER-LK M10

$

$

Currently unavailable

23

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable

24

Troy-Bilt 9390

GRIP-PADDLE SM FRAME OPC
(Superseded to GW-9390)

$4.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 20863

BAIL W/GRIPS OPC (INCL. TWO GRIPS, #24)
(Superseded to 1918840)

$116.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 20862

ASSM-ADJUSTMENT OPC (INCL. 27-30,38-39)
(Superseded to GW-20862)

$

$

Not available

27

Troy-Bilt 9532

RING-KLIP .500 ZINC
(Superseded to GW-9532)

$3.99

$

Usually ships in 3-6 days

0

28

MTD 20808

ADJUSTER-RT SIDE OPC

$

$

Not available

29

Troy-Bilt 20809

ADJUSTER-LT SIDE OPC
(Superseded to GW-20809)

$

$

Not available

30

MTD 9059

SPRING-ADJUSTER OPC

$

$

Not available

31

MTD 9522

WELDNUT 5/16-18

$

$

Not available

32

MTD 9386

RING-KLIP .188 DIA

$

$

Not available

33

MTD 20831

ROD-CONTROL OPC
(Superseded to GW-20831)

$

$

Not available

34

Troy-Bilt 97083

ASSM-PIN & CLIP (SMALL FRAME)

$

$

Currently unavailable

35

Troy-Bilt 9853

NUT W/LKWASHER #10-32 ZP
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 20806

BRACKET-BAIL OPC
(Superseded to GW-20806)

$8.99

$

Usually ships in 3-6 days

0

37

MTD 20888

SWIVEL-SMALL FRAME

$

$

Not available

38

MTD 9432

BUSHING-.5X.334X2.88

$

$

Not available

39

MTD 9973

WASHER-.75X.51X.06 ZP

$

$

Not available

40

Troy-Bilt 9701

SCR-HH 1/4-20X.75 G5 ZP

$

$

Currently unavailable

41

Troy-Bilt 9811

NUT-LK 1/4-20

$

$

Currently unavailable

42

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0
