15010 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: 150100100101 & Above) WHEEL & TILLER SHAFT ASSEMBLY Parts Diagram

Econo-Horse Rear-Tine Tiller

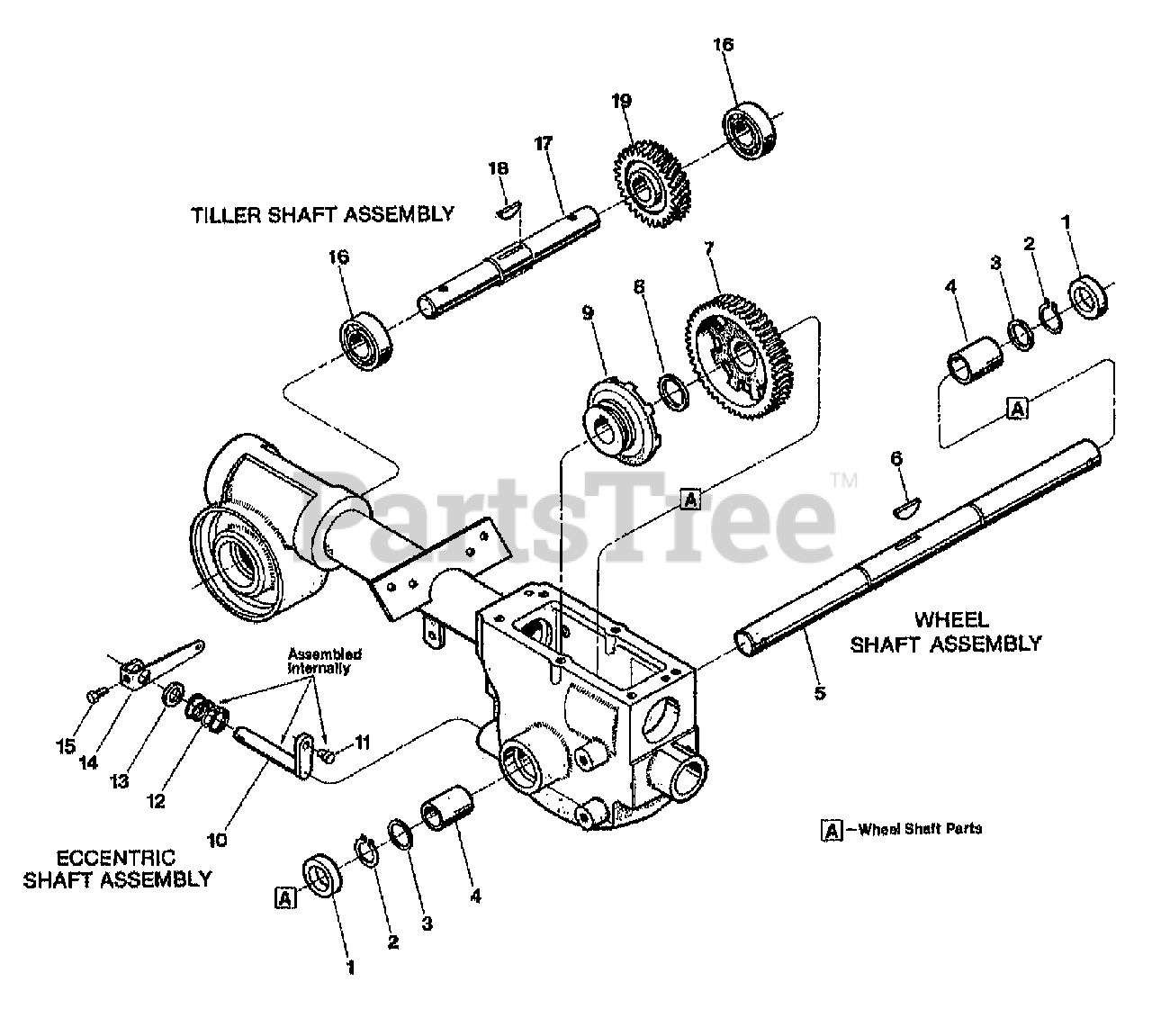

WHEEL & TILLER SHAFT ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 9621

SEAL-OIL WHEELSHAFT
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9511

RING-HEAVY EXT .906 ID
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-1

SHIM-1.375X1.015X.062
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1166-2

SHIM-1.375X1.015X.030"
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

Troy-Bilt 1166-3

SHIM-1.375X1.015X.015"
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

Troy-Bilt 1166-4

SHIM-1.375X1.015X.010"
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1086

BUSHING-1.25X1.005X1.5
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 8

0

5

Troy-Bilt 2494

WHEELSHAFT W/KEY (AXLE) - (INCL. 6)
(Superseded to 753-05579)

$

$

Not available

6

Troy-Bilt 9373

KEY-HI PRO .25X1.312
(Superseded to GW-9373)

$10.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 20914

GEAR-WHEEL DRIVE MACH
(Superseded to GW-20914)

$194.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 9935

WASHER-1.468X1.016X.062
(Superseded to GW-9935)

$3.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 20712

CLUTCH-MACH
(Superseded to GW-20712)

$89.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 20879

WELD-ECCENTRIC
(Superseded to 611-04002)

$81.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 1442

PIN-.375 X .72
(Superseded to 738-04448)

$8.49

$

In Stock, Qty 5

0

12

Troy-Bilt 9055

SPRING-.850 X .875 LONG
(Superseded to GW-9055)

$7.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 9622

SEAL-OIL ECCENTRIC
(Superseded to 921-04034)

$10.99

$

In Stock, Qty 20+

0

14

MTD 20757

LEVER-CABLE ADJ PNT

$

$

Not available

15

Troy-Bilt 9743

SCR-HH 1/4-20X.5 GR5 YEL

$

$

Currently unavailable

16

Troy-Bilt 97074

BEARING-BALL
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

17

Troy-Bilt 20896

SHAFT-W/KEY (TILLER)
(Superseded to GW-20896)

$110.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 1104

KEY-WOODRUFF .25X1.12
(Superseded to GW-1104)

$9.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 20913

WORM GEAR - BRONZE, TILLER DRIVE
(Superseded to GW-20913)

$201.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 20776

WORM GEAR - BRONZE

$

$

Currently unavailable

Troy-Bilt 1360A

OIL GEAR LUBE 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL GEAR LUBE 1 QT 140WT

$

$

Currently unavailable
