15008 S - Troy-Bilt Pony VII Rear-Tine Tiller (SN: S0242650 - S0254903) HOOD & DEPTH REGULATOR Parts Diagram

Pony VII Rear-Tine Tiller

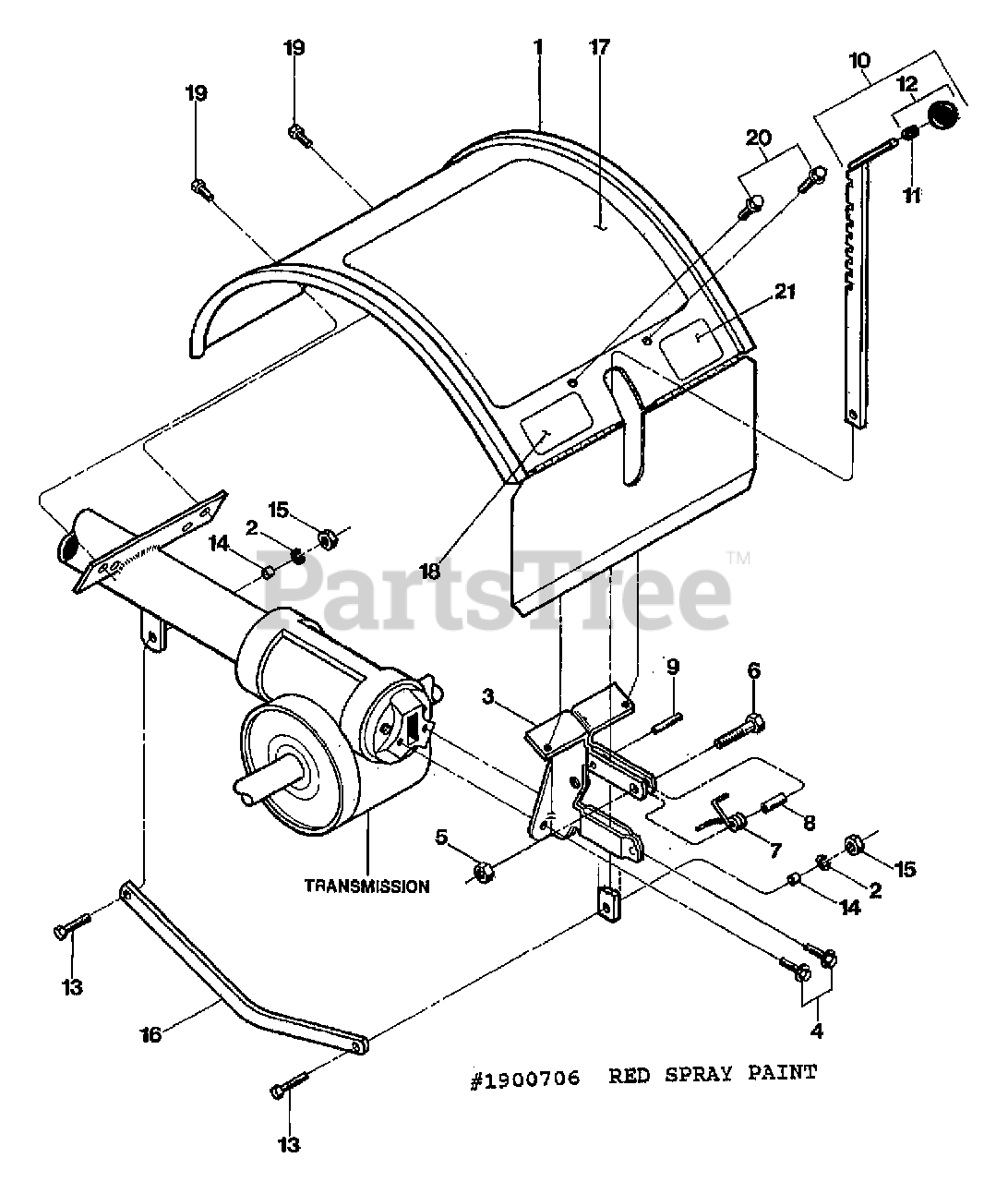

HOOD & DEPTH REGULATOR Parts Diagram

  • Title
1

Troy-Bilt 20861

HOOD W/DECALS PONY OPC (INCL. 17, 18 & 21)
(Superseded to 686-04078-0638)

$184.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

3

Troy-Bilt 2527

BRKT W/ROLL PIN (9308)(INCL. 9)
(Superseded to GW-2527)

$158.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 90044

SCR-HFLK 5/16-18X.75 ZP

$

$

Currently unavailable

5

Troy-Bilt 9811

NUT-LK 1/4-20

$

$

Currently unavailable

6

Troy-Bilt 9734

SCR-HH 1/4-20X1.0

$

$

Currently unavailable

7

Troy-Bilt 9384

SPRING-TORSION
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 9

0

8

Troy-Bilt 9438

SPACER-.250X.343X.375

$

$

Currently unavailable

9

Troy-Bilt 9308

PIN-ROLL .25 X 1 (SPIRAL)
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0

10

Troy-Bilt 1117A

DEPTH REGULATOR W/KNOB (INCL. 11 & 12)
(Superseded to 1900864)

$86.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 9119

KNOB-CONTROL (INCL. 11)
(Superseded to GW-9119)

$11.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

14

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

16

Troy-Bilt 20775

DRAG BAR-BENT
(Superseded to 1916185001)

$

$

Not available

17

Troy-Bilt 20816

DECAL-HOOD OPER INST OPC

$

$

Currently unavailable

18

Troy-Bilt 20855

DECAL-HOOD LOGO PONY OPC (MODEL NAME DECAL)

$

$

Currently unavailable

19

Troy-Bilt 9553

SCR-HWH 5/16-18 X .5 STH
(Superseded to 710-0607)

$6.99

$

In Stock, Qty 11

0

20

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 20814

DECAL-TINE WARN SM FRAME

$

$

Currently unavailable

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
