15008 S - Troy-Bilt Pony VII Rear-Tine Tiller (SN: S0242650 - S0254903) ENGINE, PULLEYS & BELTS Parts Diagram

Pony VII Rear-Tine Tiller

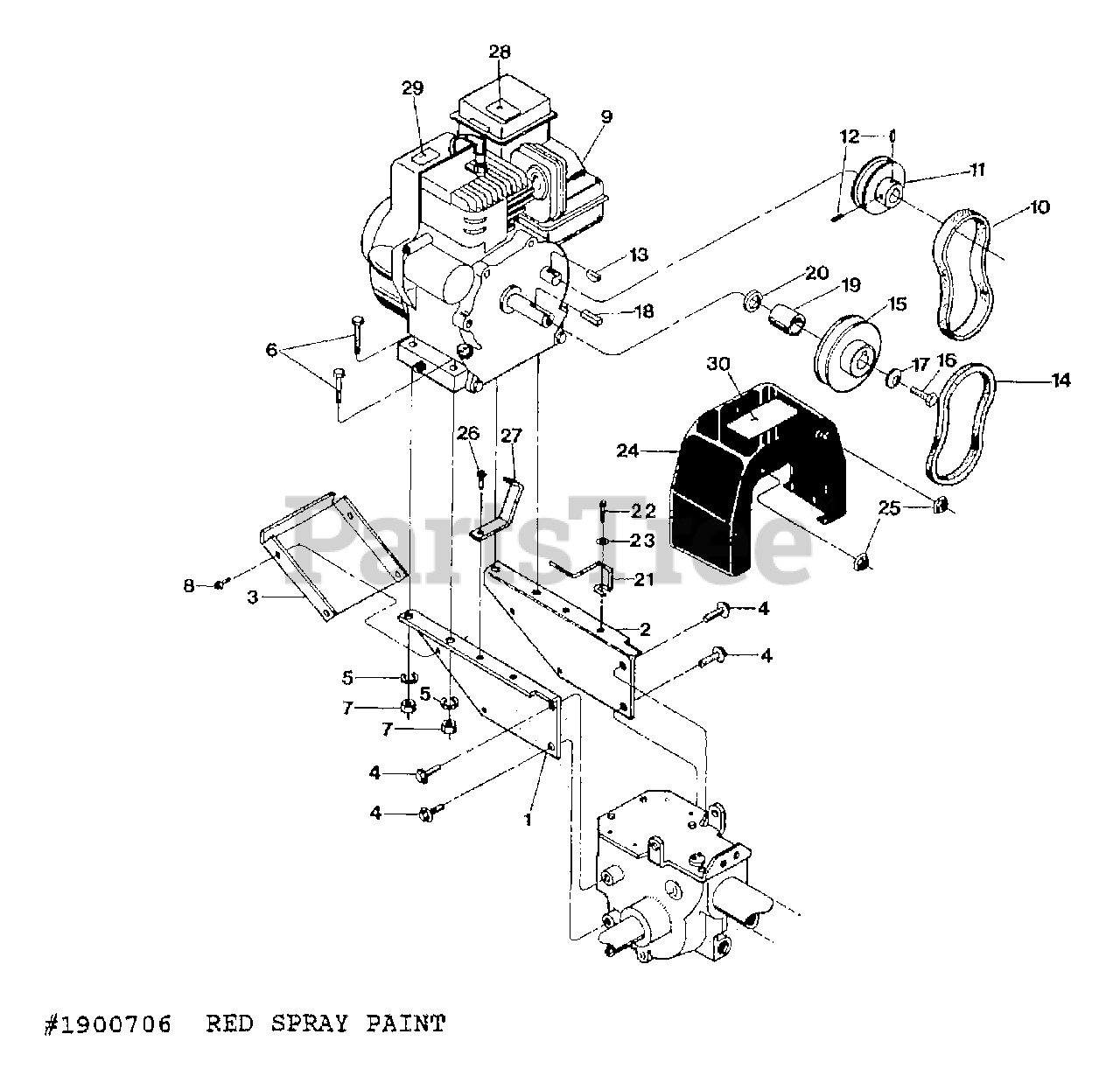

ENGINE, PULLEYS & BELTS Parts Diagram

  • Title

1

MTD 20754

BRKT-ENG LT P4

$

$

Not available

2

MTD 20755

BRKT-ENG RT PNT

$

$

Not available

3

Troy-Bilt 20673

PAN-ENG BRKT PNT
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 90044

SCR-HFLK 5/16-18X.75 ZP

$

$

Currently unavailable

5

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 9758

SCR-HH 5/16-18X1.5 G5 ZP

$

$

Currently unavailable

7

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 9768

SCR-HH SEMS 10-32 X .5 ZP

$

$

Currently unavailable

9

0

ENGINE, BRIGGS & STRATTON 5HP,

Note: STD. RECOIL W/MAGNETRON ING., MODEL 130292, TYPE 3220-01

$

$

Not available

9

0

ENGINE, BRIGGS & STRATTON 5HP,

Note: ELEC. START W/MAGNETRON ING., MODEL 130297, TYPE 3221-01

$

$

Not available

10

Troy-Bilt 97075

BELT-FLAT (SEE BELT SET BELOW)
(Superseded to GW-97075)

$31.99

$

In Stock, only 1 left!

0

11

MTD 20881

PULLEY-REV DRILL/TAP

$

$

Not available

12

MTD 9561

SCR-SS 1/4-20 X .25 (SECURES REVERSE ENGINE PULLEY)

$

$

Not available

13

MTD 9361

KEY-WOODRUFF #5

$

$

Not available

14

Troy-Bilt 1909404

BELT-V GROOVE FWD SMFRAME (SEE BELT SET BELOW)
(Superseded to 954-04094)

$30.99

$

In Stock, Qty 20+

0

15

MTD 20765

PULLEY-ENGINE MACH

$

$

Not available

16

Troy-Bilt GW-9655

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

17

Troy-Bilt 9944

WASHER-.827X.331X.098
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

19

MTD 97077

SPACER-.938X.755X1.19

$

$

Not available

20

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

21

MTD 20555

GUIDE-BELT FWD

$

$

Not available

22

Troy-Bilt 9573

SCR-HWH 1/4-20 X .75 STH
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

23

Troy-Bilt GW-9900

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

24

Troy-Bilt 20916

COVER-BELT W/DECAL (INCL. 30)
(Superseded to 731-05290)

$26.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt GW-9848

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

~N/A

BELT SET - (INCL. 10 & 14)

$

$

Not available

26

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 20514

GUIDE-BELT REV PNT

$

$

Currently unavailable

28

Troy-Bilt 2951

DECAL - HOT SURFACE

$

$

Currently unavailable

29

Troy-Bilt 2573

DECAL-STABIL STARTING

$

$

Currently unavailable

30

Troy-Bilt 20818

DECAL-BELT COVER OPC
(Superseded to GW-20818)

$30.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
