15008 C - Troy-Bilt Pony Rear-Tine Tiller (SN: Original) Hiller/Furrower Attachment Parts Diagram

Pony Rear-Tine Tiller

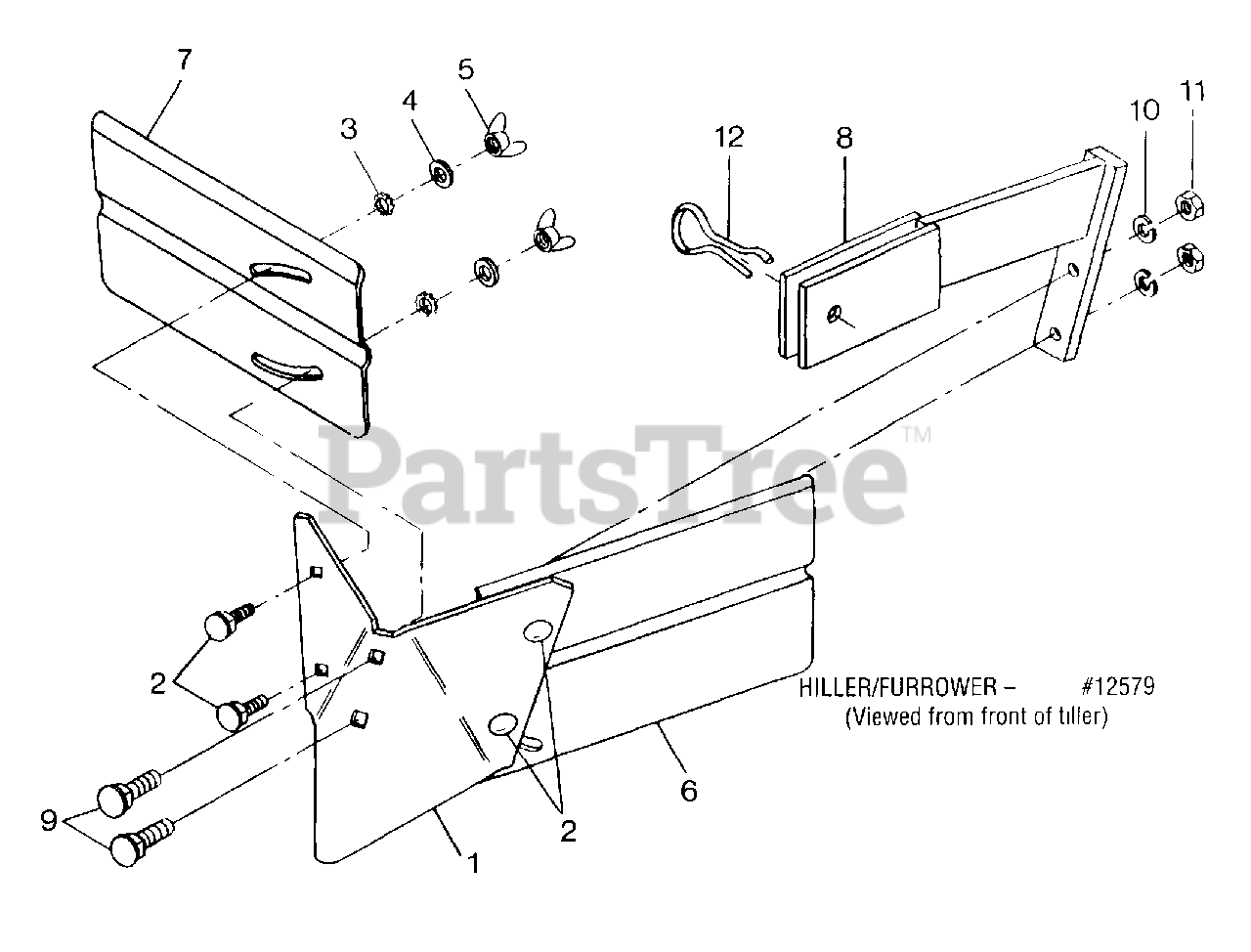

Hiller/Furrower Attachment Parts Diagram

  • Title

1

Troy-Bilt 2735

Furrower-blade only
(Superseded to 1900771001)

$69.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1186098

Carriage Bolt-5/16-18 x 3/4

$

$

Not available

3

Troy-Bilt 1177548

Star Washer-external tooth, 5/16
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 9902

Plain Washer-5/16 S A E

$

$

Currently unavailable

5

Troy-Bilt 9824

Wing Nut-5/16-18
(Superseded to GW-9824)

$5.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 2736-01

Hiller Wing-left
(Superseded to 1900777001)

$51.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 2736-02

Hiller Wing-right
(Superseded to 1900778001)

$80.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 2636

Bracket-blade mounting
(Superseded to GW-2636)

$188.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 9725

Carriage Bolt-blade mounting, 3/8-16 x 1-1/2
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1100243

Lockwasher-3/8, plated
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 1186231

Nut-hex, 3/8-16, plated
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

12

MTD 9318

Pin-clinch

$

$

Not available

Hiller/Furrower-complete attachment

Note: (Owner must bolt blade to mounting bracket, and wings to blade). Instructions included..

$

$

Not available
