15006 - Troy-Bilt Junior VI Rear-Tine Tiller (SN: M0108417 - M0115494) ENGINE, PULLEYS & BELTS Parts Diagram

Junior VI Rear-Tine Tiller

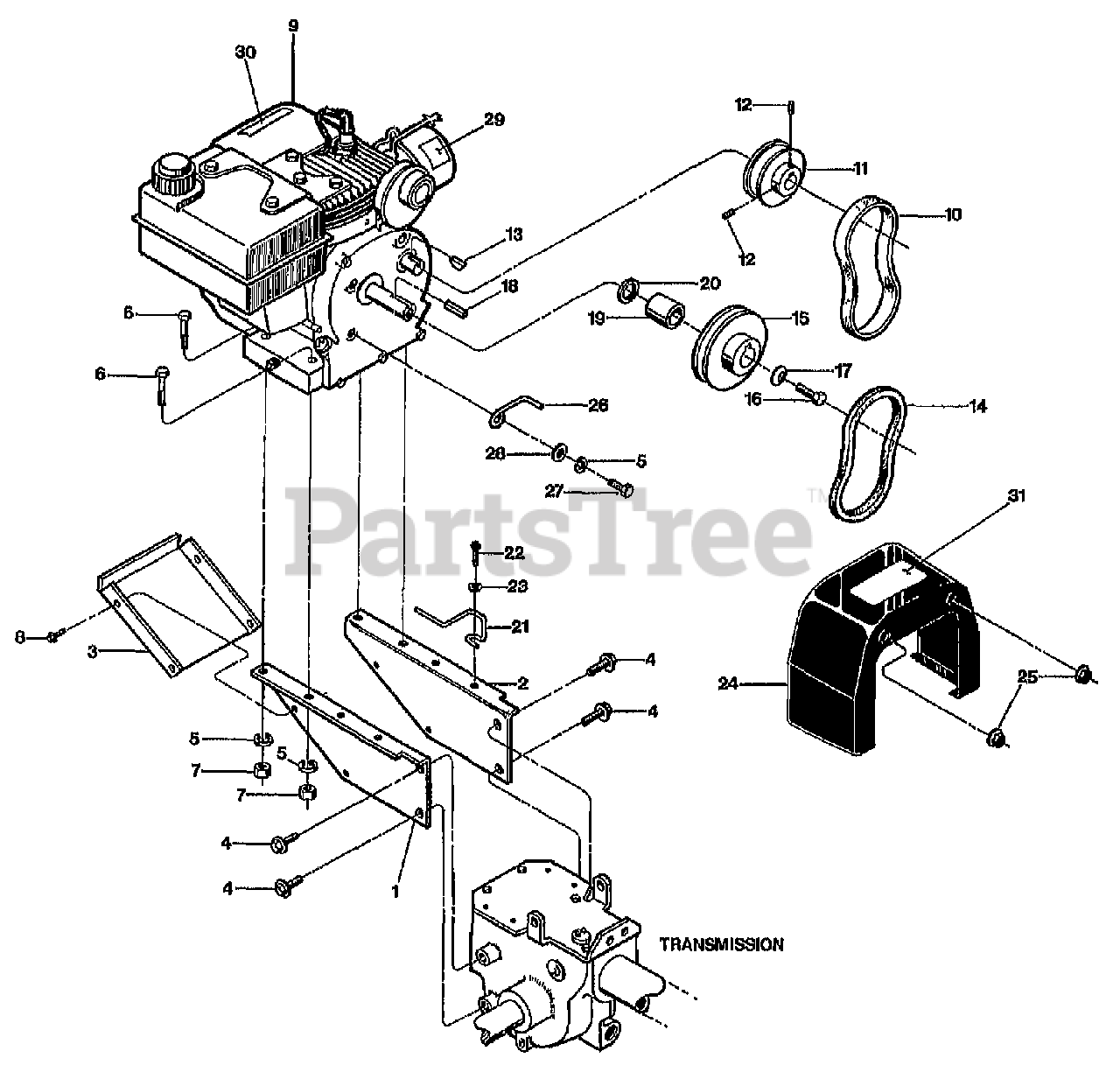

ENGINE, PULLEYS & BELTS Parts Diagram

  • Title

1

MTD 20754

BRKT-ENG LT P4

$

$

Not available

2

MTD 20755

BRKT-ENG RT PNT

$

$

Not available

3

Troy-Bilt 20673

PAN-ENG BRKT PNT
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 90044

SCR-HFLK 5/16-18X.75

$

$

Currently unavailable

5

Troy-Bilt GW-9912

WASHER-LK .312
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 9758

SCR-HH 5/16-18X1.5 G5

$

$

Currently unavailable

7

Troy-Bilt GW-9801

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 9768

SCR-HH SEMS 10-32 X .5 (W/PERMANET WASHER)

$

$

Currently unavailable

9

0

ENGINE, TECUMSEH HP,

Note: STD. RECOIL START W/ELEC. SOLID STATE IGN. MODEL HS40,TYPE 55580

$

$

Not available

10

Troy-Bilt 97075

BELT-FLAT (SEE BELT SET BELOW)
(Superseded to GW-97075)

$31.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 20882

PULLEY-REV DRILL/TAP (INCL. 10)

$

$

Currently unavailable

12

MTD 9561

SCR-SS 1/4-20 X .25 (SECURES REVERSE ENGINE PULLEY)

$

$

Not available

13

MTD 9361

KEY-WOODRUFF #5, REVERSE PULLEY TO REVERSE PTO SHAFT

$

$

Not available

14

Troy-Bilt 1909404

BELT-V GROOVE FWD SMFRAME
(Superseded to 954-04094)

$30.99

$

In Stock, Qty 20+

0

15

MTD 20765

PULLEY-ENGINE MACH

$

$

Not available

16

Troy-Bilt GW-9549

SCR-HH 3/8-24X1.0 G5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

17

MTD 9925

WASHER-.994X.413X.145 (CONCAVE SURFACE FACES FORWARD PULLEY)

$

$

Not available

18

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 97078

SPACER-.938X.755X1.44 (ON FORWARD PTO SHAFT BETWEEN ENGINE AND SPACER)

$

$

Currently unavailable

20

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031 (ON FORWARD PTO SHAFT BETWEEN ENGINE AND SPACER)
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

21

MTD 20555

GUIDE-BELT FWD

$

$

Not available

22

Troy-Bilt 9573

SCR-HWH 1/4-20 X .75 STH
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

23

Troy-Bilt GW-9900

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

24

Troy-Bilt 20916

COVER-BELT W/DECAL (INCL. 31)
(Superseded to 731-05290)

$26.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 9848

NUT-HFLK 5/16-18

$

$

Currently unavailable

26

Troy-Bilt 20890

STOP-BELT

$

$

Currently unavailable

27

Troy-Bilt 9655

SCR-HH 5/16-24X.75 G5
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

28

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

29

MTD 55053

DECAL-HOT SURFACE

$

$

Not available

~N/A

BELT SET - (INCL. 10 & 14)

$

$

Not available

30

Troy-Bilt 97125

DECAL-STARTING STABIL

$

$

Currently unavailable

31

Troy-Bilt 20818

DECAL-BELT COVER OPC
(Superseded to GW-20818)

$30.99

$

Usually ships in 3-6 days

0
