15006 S - Troy-Bilt Junior V Rear-Tine Tiller (SN: M0100970 - M0108416) TIRES & WHEELS Parts Diagram

Junior V Rear-Tine Tiller

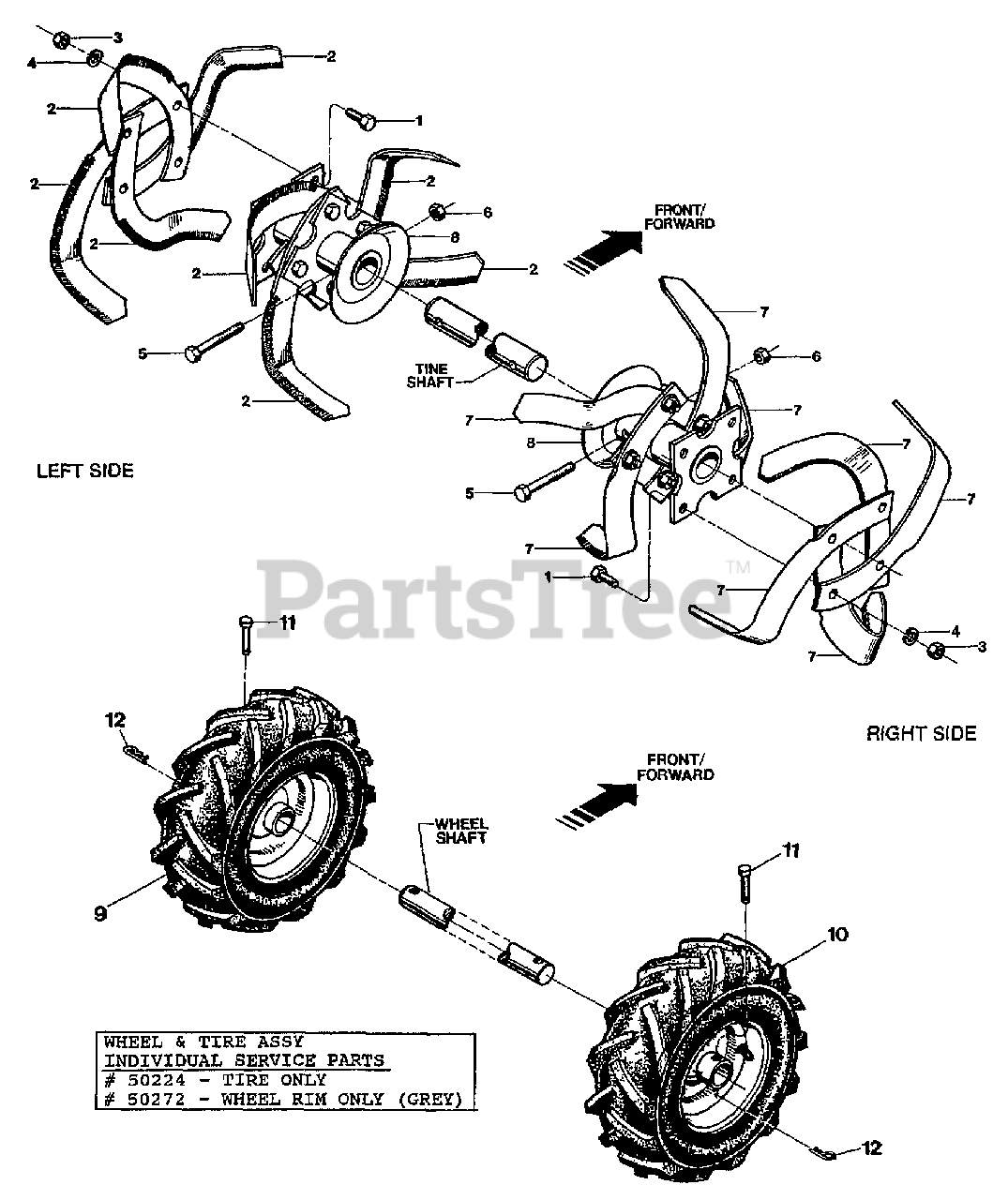

TIRES & WHEELS Parts Diagram

  • Title

1

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

2

Troy-Bilt 50049-01

TINE-BOLO RH TINE USED ON LEFT SIDE OF TILLER.
(Superseded to 742-04226-0637)

$16.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

4

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

5

Troy-Bilt 9761

SCR-HH 3/8-16X2.00 G8

$

$

Currently unavailable

6

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

7

Troy-Bilt 50049-02

TINE-BOLO LH TINE USED ON RIGHT SIDE OF TILLER.
(Superseded to 742-04227-0637)

$16.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 50219

HOLDER-TINE JUNIOR (FOR BOLO TINES, LH & RH SIDES.)

$

$

Currently unavailable

Troy-Bilt 1901

TINES-BOLO JUNIOR/TUFFY (INCL 8 EA OF RH & LH TINES. 16 EA OF NO.'S 1,3 AND 4)
(Superseded to GW-1901)

$

$

Not available

9

Troy-Bilt 50223-1

ASSM-WHEEL&TIRE LT

$

$

Currently unavailable

10

Troy-Bilt 50223-2

ASSM-WHEEL&TIRE RT

$

$

Currently unavailable

Troy-Bilt 50224

TIRE 3.25-5

$

$

Currently unavailable

Troy-Bilt 50272

RIM-WHEEL 5" GRAY

$

$

Currently unavailable

11

Troy-Bilt 9380

PIN-CLEVIS .312"X11/2" (SECURES WHEEL HUB TO WHEEL SHAFT)
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

12

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0
