15006 S - Troy-Bilt Junior V Rear-Tine Tiller (SN: M0100970 - M0108416) HANDLE BARS & CONTROL LEVERS Parts Diagram

Junior V Rear-Tine Tiller

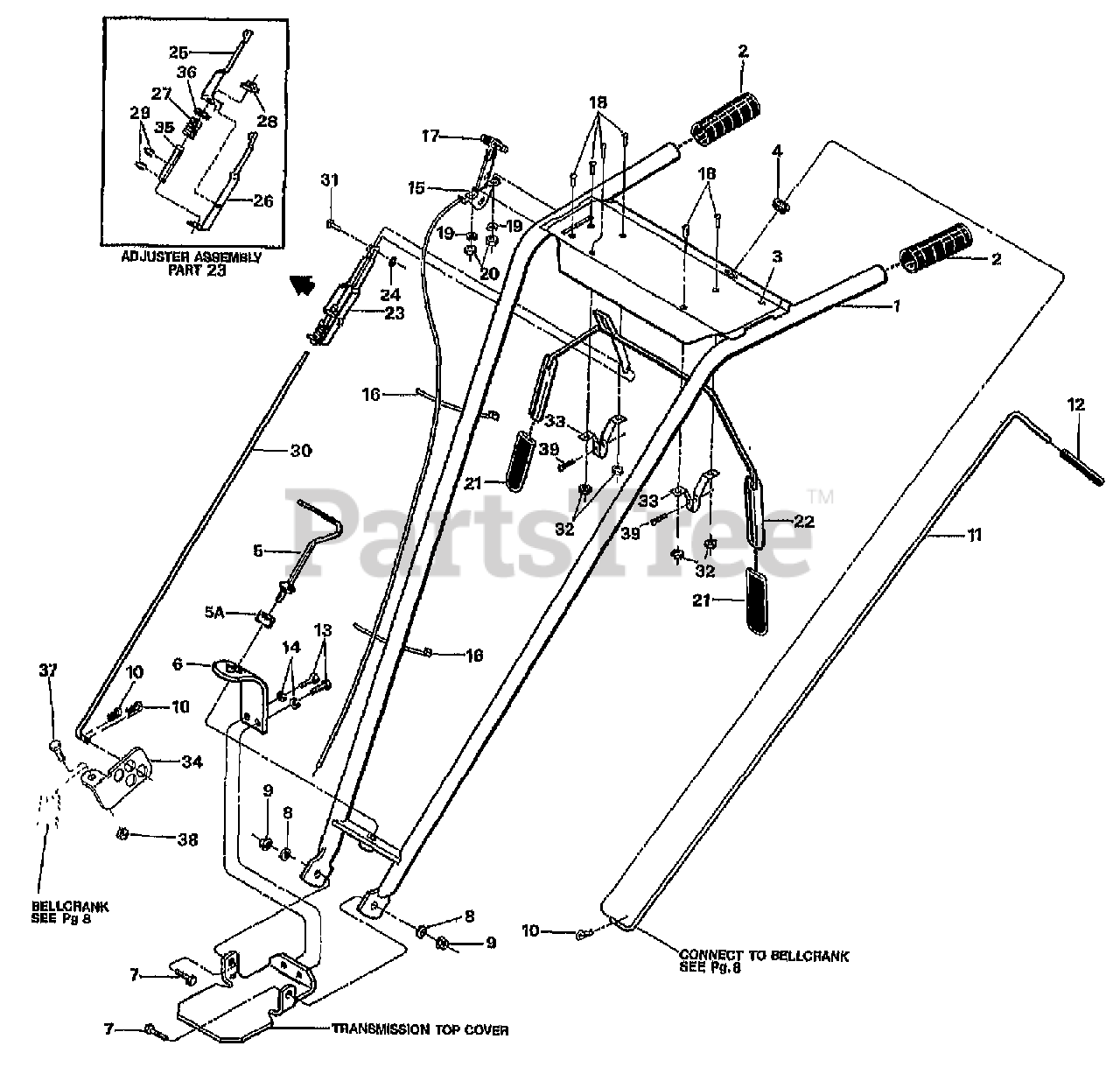

HANDLE BARS & CONTROL LEVERS Parts Diagram

  • Title

1

Troy-Bilt 50253

ASSM-HANDLEBAR (INCL #2-5A)

$

$

Currently unavailable

2

Troy-Bilt 9126

GRIP-H/B 1" PONY/P-J OPC
(Superseded to 720-0274)

$11.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 50242

DECAL-CONTROL PANEL OPC

$

$

Currently unavailable

4

MTD 9251

BUSHING-NYLON (PART OF OPER CNTL PANEL)

$

$

Not available

5

MTD 20703

ASSM-STUD H/B (HEIGHT ADJUSTMENT)

$

$

Not available

5A

Troy-Bilt 9955

WASHER-1.0X.38X.375 (USED WITH #5)
(Superseded to 736-04445)

$3.99

$

In Stock, Qty 8

0

6

Troy-Bilt 20753

PLATE-HANDLEBAR HEIGHT ADJUST

$

$

Currently unavailable

7

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP (HANDLEBAR ATTACH)

$

$

Currently unavailable

8

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE (HANDLEBAR ATTACH)
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP (HANDLEBAR ATTACH)
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

10

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

11

MTD 20830

ROD-REV W/GRIP OPC - COMPLETE (INCL. GRIP #9198)

$

$

Not available

12

Troy-Bilt 9198

GRIP-CONTROL ROD

$

$

Currently unavailable

13

Troy-Bilt 9709

SCR-HH 3/8-16X.75 G5

$

$

Currently unavailable

14

Troy-Bilt 9913

WASHER-LK .375

$

$

Currently unavailable

15

Troy-Bilt 9441

CABLE-THROTTLE JR OPC

$

$

Currently unavailable

16

Troy-Bilt 9202

TIE-RED (PLASTIC)
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 9212

KNOB-THROTTLE CABLE
(Superseded to 731-0108)

$9.49

$

In Stock, only 3 left!

0

18

Troy-Bilt 9722

SCR-RH M10-32X.5 MACH

$

$

Currently unavailable

19

Troy-Bilt 9909

WASHER-LK M10

$

$

Currently unavailable

20

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable

21

Troy-Bilt 9390

GRIP-PADDLE SM FRAME OPC
(Superseded to GW-9390)

$4.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 20863

BAIL W/GRIPS OPC (INCL. 2 GRIPS, #21)
(Superseded to 1918840)

$116.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 20862

ASSM-ADJUSTMENT OPC (INCL. 25-27, 29, 35-36)
(Superseded to GW-20862)

$

$

Not available

24

MTD 9386

RING-KLIP .188 DIA

$

$

Not available

25

MTD 20808

ADJUSTER-RT SIDE OPC

$

$

Not available

26

Troy-Bilt 20809

ADJUSTER-LT SIDE OPC
(Superseded to GW-20809)

$

$

Not available

27

MTD 9059

SPRING-ADJUSTER OPC

$

$

Not available

28

MTD 9522

WELDNUT 5/16-18

$

$

Not available

29

Troy-Bilt 9532

RING-KLIP .500 ZINC
(Superseded to GW-9532)

$3.99

$

Usually ships in 3-6 days

0

30

MTD 20831

ROD-CONTROL OPC
(Superseded to GW-20831)

$

$

Not available

31

Troy-Bilt 97083

ASSM-PIN & CLIP (SMALL FRAME)

$

$

Currently unavailable

32

Troy-Bilt 9853

NUT W/LKWASHER #10-32 ZP
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 20806

BRACKET-BAIL OPC
(Superseded to GW-20806)

$8.99

$

Usually ships in 3-6 days

0

34

MTD 20888

SWIVEL-SMALL FRAME

$

$

Not available

35

MTD 9432

BUSHING-.5X.334X2.88

$

$

Not available

36

MTD 9973

WASHER-.75X.51X.06 ZP

$

$

Not available

37

Troy-Bilt 9701

SCR-HH 1/4-20X.75 G5 ZP

$

$

Currently unavailable

38

Troy-Bilt 9811

NUT-LK 1/4-20

$

$

Currently unavailable

39

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0
