1500 - Weed Eater String Trimmer Engine Assembly Parts Diagram

String Trimmer

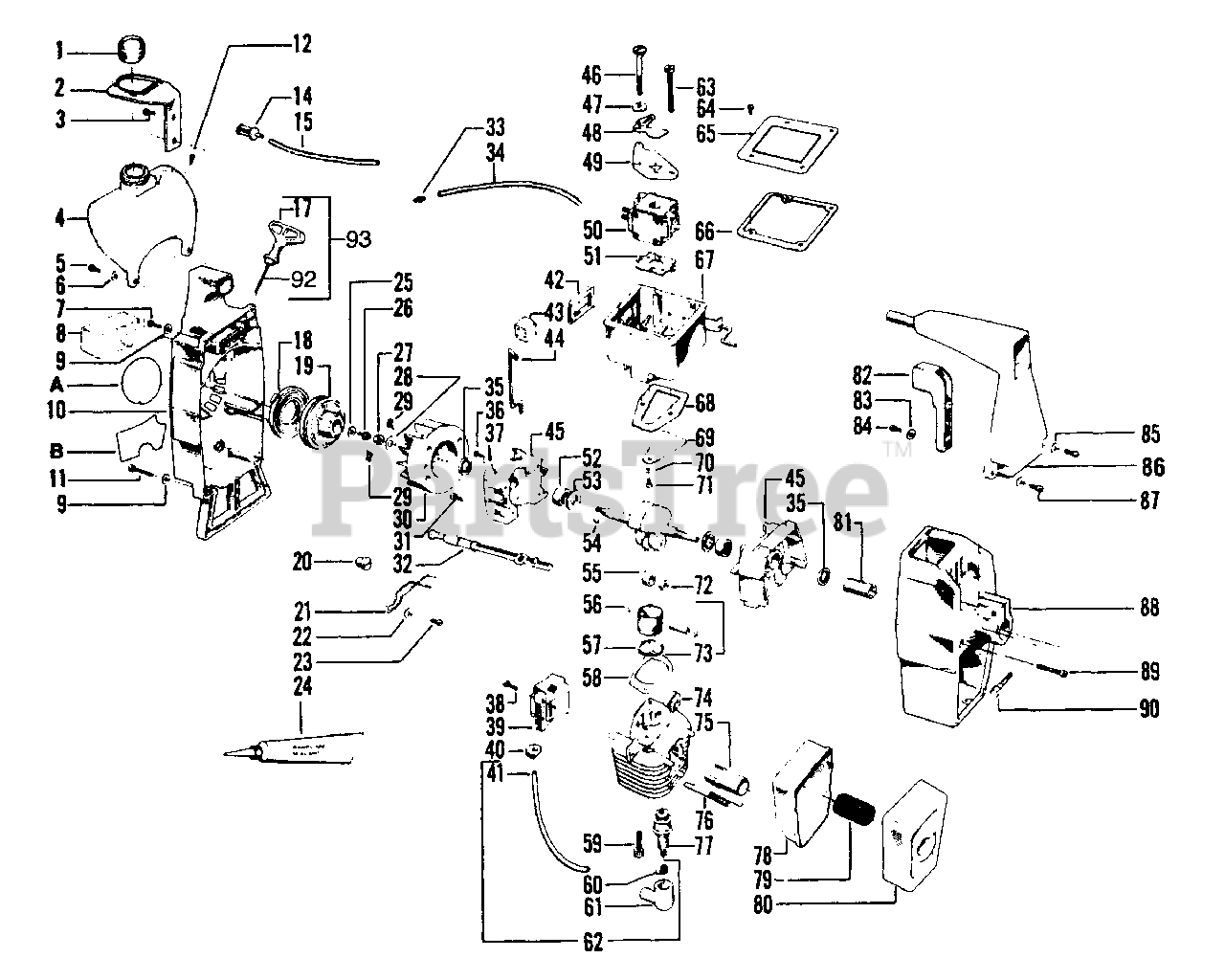

Engine Assembly Parts Diagram

  • Title

1

Poulan 106858X

Fuel Cap Assembly (AYP part number)
(Superseded to 165772)

Note: (Incl #91)

$28.99

$

Usually ships in 3-10 days

0

2

Poulan 25377

Bracket - Fuel Tank

$

$

Not available

3

Poulan 92243

Screw -Bracket/Handle (1/4 - 10 x 1-1/8)

$

$

Not available

4

Poulan 530010522

Fuel Tank Assembly

Note: (Incl. # 1, 4, 12, & 16)

$

$

Not available

5

Poulan 530015509

Screw- Fuel Tank/Fan Housing (10-1)

$3.99

$

In Stock, only 2 left!

0

6

Poulan 530015512

Washer - Fuel Tank/Fan Housing

$

$

Not available

7

Poulan 15168

Screw -Fan Hsg. Top #10 - 24 x 5/8 Fit.

$

$

Not available

8

Poulan 24371

Air Filter

$

$

Not available

9

Poulan 530015274

Washer - Flat - Fan Housing

$0.99

$

Usually ships in 3-10 days

0

10

Poulan 11909

Fan Housing

$

$

Not available

11

Poulan 530015305

Screw -Fan Housing - Bottom - #10 - 24 x 1-3/16 Fil.

$1.99

$

Usually ships in 3-10 days

0

12

Poulan 26119

Check Valve - Duck Bill

$

$

Not available

14

Poulan 91878

Fuel Pick-Up Ass'y.

$

$

Not available

15

Poulan 21045

Line - Fuel Pick-up

$

$

Not available

17

Poulan 26735

Handle - Starter

$

$

Not available

18

Poulan 42067

Starter - Recoil Spring

$

$

Not available

19

Poulan 26048

Starter - Pulley

$

$

Not available

20

Poulan 24366

Button - Kill Switch

$

$

Not available

21

Poulan 25378

Spring - Kill Switch

$

$

Not available

22

Poulan 530015382

Washer - Kill Switch

$

$

Not available

23

Poulan 530015407

Screw- Kill Switch (8 x 3/8)

$

$

Not available

24

Poulan 530030054

Crankcase Sealant - 3 oz. tube

Note: (Optional)

$

$

Not available

25

Poulan 530015123

Washer - Starter Pulley

$4.99

$

In Stock, only 4 left!

0

26

Poulan 530015479

Screw - Starter Pulley (# 10 - 3/4 - Hex Head)
(Superseded to 530071620)

$34.99

$

Usually ships in 3-10 days

0

27

Poulan 626605

Nut - Flywheel

$

$

Not available

28

Poulan 42059

Spring - Starter Dog

$

$

Not available

29

Poulan 530015127

Washer - Flywheel

$6.49

$

In Stock, only 1 left!

0

30

Poulan 39114

Flywheel Ass'y

Note: (Incl. # 28)

$

$

Not available

31

Poulan 15168

Screw - Crankcase (# 10 - 24 x 5/8 Fil.)

$

$

Not available

32

Poulan 24303

Knob-Choke

$

$

Not available

33

Poulan 25472

Fitting - Fuel Line

$

$

Not available

34

Poulan 21044

Fuel Line - Carburetor

$

$

Not available

35

Poulan 19059

Seal - Crankshaft

$

$

Not available

36

Poulan 15004

Screw - Clamp # 8 - 32 x 5/16 Pan.

$

$

Not available

37

Poulan 24651

Clamp - Choke Wire

$

$

Not available

38

Poulan 15128

Screw -Ignition Module (8 - 32 x 3/4 - Sems)

$

$

Not available

39

Poulan 69181

Ignition Module

$

$

Not available

40

Poulan 24435

Grommet - Plug Wire

$

$

Not available

41

Poulan 39082

Lead Wire - High Tension

$

$

Not available

42

Poulan 19105

Seat - Carburetor Case

$

$

Not available

43

Poulan 530023373

Boot - Choke Wire

$

$

Not available

44

Poulan 24305

Wire - Choke

$

$

Not available

45

Poulan 10316

Crankcase Ass'y

Note: (Incl. # 35 & 52)

$

$

Not available

46

Poulan 530015404

Screw - Carburetor (Shoulder # 10 - 24)

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

48

Poulan 24558

Shutter - Choke

$

$

Not available

49

Poulan 26237

Plate - Guide, Choke Wire

$

$

Not available

50

Poulan 35183

Carburetor

$

$

Not available

51

Poulan 19115

Gasket Carburetor

$

$

Not available

52

Poulan 32058

Bearing - Crankshaft

$

$

Not available

53

Poulan 530015351

Thrust Washer - Crankshaft

$6.49

$

Usually ships in 3-10 days

0

54

Poulan 530015126

Key - Flywheel

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 22202

Crankshaft & Rod Assembly

$

$

Not available

56

Poulan 530015162

Retainer - Wrist Pin

$6.49

$

In Stock, only 1 left!

0

57

Poulan 24302

Piston Ring

$

$

Not available

58

Poulan 19111

Gasket Cylinder

$

$

Not available

59

Poulan 530015239

Screw - Cylinder (1/4 - 20 x 3/4 Socket Head)

$2.49

$

Usually ships in 3-10 days

0

60

Poulan 530003933

Connector - Spark Plug
(Superseded to 507475326)

$

$

Not available

61

Poulan 530003934

Boot - Spark Plug

$

$

Not available

62

Poulan 502039103

High Tension Lead Ass'y
(Superseded to 502271102)

Note: (Incl. # 41, 60 & 61)

$364.99

$

Usually ships in 3-10 days

0

63

Poulan 530015379

Screw-Carburetor (# 10 - 24 Fil.)

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 15235

Screw Carburetor Cover (8 - 18 x 9/16)

$

$

Not available

65

Poulan 24355

Cover Carburetor Case

$

$

Not available

66

Poulan 19112

Gasket - Carburetor Case Cover

$

$

Not available

67

Poulan 10453

Carburetor Case Assembly

$

$

Not available

68

Poulan 19108

Gasket Carburetor Case/Crankcase

$

$

Not available

69

Poulan 24438

Reed Valve

$

$

Not available

70

Poulan 23367

Washer - Reed Valve

$

$

Not available

71

Poulan 15241

Screw - Reed Valve (6 - 19 x 5/16)

$

$

Not available

72

Poulan 32057

Bearing - Wrist Pin

$

$

Not available

73

Poulan 22198

Piston Ass'y

Note: (Incl. # 56, 57 and Pin)

$

$

Not available

74

Poulan 12070

Cylinder

$

$

Not available

75

Poulan 26949

Diffuser Muffler

$

$

Not available

76

Poulan 24903

Spring - Muffler Attachment
(Superseded to 583820901)

$581.99

$

Usually ships in 3-10 days

0

77

Poulan 30058

Spark Plug (RCJ-8)

$

$

Not available

78

Poulan 24362

Body Muffler

$

$

Not available

79

Poulan 24364

Screen-Spark Arrestor

$

$

Not available

80

Poulan 24361

Cover-Muffler

$

$

Not available

81

Poulan 93694

Coupling - Hex Drive

$

$

Not available

82

Poulan 25342

Trigger - Throttle

$

$

Not available

83

Poulan 530015382

Washer - Throttle

$

$

Not available

84

Poulan 530015407

Screw - Throttle (8 - 16 x 3/8)

$

$

Not available

85

Poulan 530015274

Washer - Flat - Shroud

$0.99

$

Usually ships in 3-10 days

0

86

Poulan 25704

Handle

$

$

Not available

87

Poulan 15163

Screw - Shroud (Top) - (10 - 24 x 7/8)

$

$

Not available

88

Poulan 11778

Shroud

$

$

Not available

89

Poulan 15376

Screw - Shroud (Bottom) - # 10 - 24 x 1-1/2 Fil.

$

$

Not available

90

Poulan 93802

Bolt, Pinch Clamp (1/4 - 20 x 1 - Hex Cap)

$

$

Not available

91

Poulan 19136

"O" Ring - Fuel Cap

Note: (Not shown)

$

$

Not available

92

Poulan 22290

Rope (3 1/2 Ft.)

$

$

Not available

93

Poulan 26792

Rope & Handle - Starter Ass'y

$

$

Not available

A

Poulan 25846

Decal - Starting instructions

$

$

Not available

B

Poulan 25845

Decal - Choke / OFF

$

$

Not available

B

Poulan 25848

Decal - Shroud (Right)

Note: Not Shown

$

$

Not available

B

Poulan 25849

Decal - Shroud (Left)

Note: Not Shown

$

$

Not available
