1500 - Weed Eater String Trimmer Drive Shaft Assembly Parts Diagram

String Trimmer

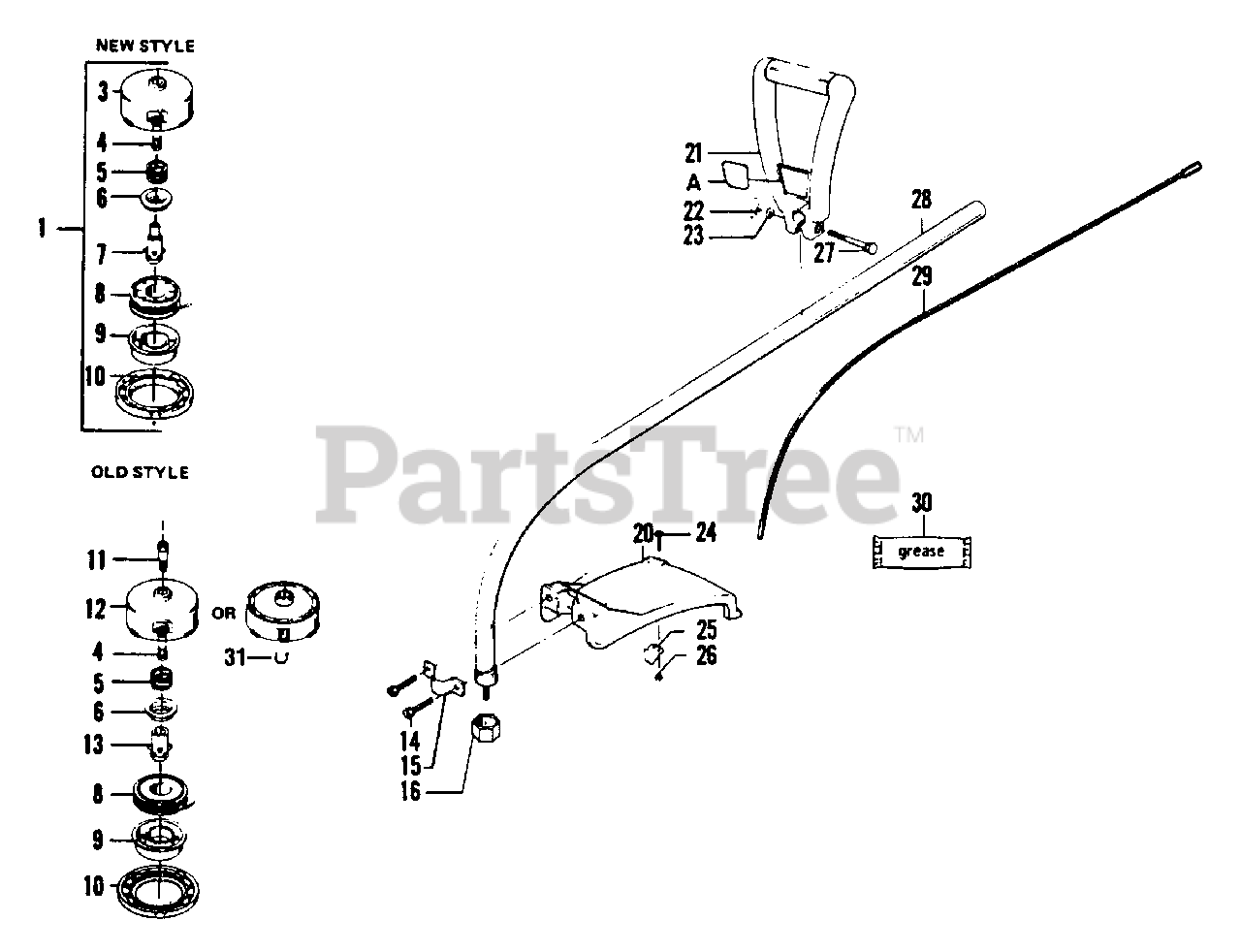

Drive Shaft Assembly Parts Diagram

  • Title

1

Poulan 93894

Cutting Head Ass'y - New Style

$

$

Not available

3

Poulan 93896

Hub w/Line Saver

$

$

Not available

4

Poulan 93898

Line Saver

$

$

Not available

5

Poulan 92067

Spring

$

$

Not available

6

Poulan 92068

Adaptor - Spring

$

$

Not available

7

Poulan 93897

Drive Gear

$

$

Not available

8

Poulan 702512

Spool w/Line

$

$

Not available

9

Poulan 93387

Release Button

$

$

Not available

10

Poulan 92133

Cover

$

$

Not available

11

Poulan 92064

Bolt - Drive Adaptor - Old Style

$

$

Not available

12

Poulan 92131

Hub w/Line Saver - Old Style

$

$

Not available

13

Poulan 92069

Drive Gear - Old Style

$

$

Not available

14

Poulan 92243

Screw - Shield

$

$

Not available

15

Poulan 93653

Bracket - Shield (1/4 - 20 x 1-3/4)

$

$

Not available

16

Poulan 93716

Dust Cup

$

$

Not available

20

Poulan 94441

Shield

$

$

Not available

20

Poulan 69213

Shield Ass'y

Note: (Incl. #14, 20, 24, 25 & 26)

$

$

Not available

21

Poulan 93729

Assist Handle

$

$

Not available

22

Poulan 91373

Wing Nut - 1/4 - 20

$

$

Not available

23

Poulan 92062

Washer - 1/4 Flat

$

$

Not available

24

Poulan 530015337

Screw- Line Limiter (10- 24 x 1)

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 93853

Limiter - Line

$

$

Not available

26

Poulan 15064

Nut - Line Limiter

$

$

Not available

27

Poulan 92061

Hex Bolt - 1/4 - 20 x 2-1/4

$

$

Not available

28

Poulan 93757

Drive Shaft Ass'y

Note: (Incl. # 13)

$

$

Not available

29

Poulan 93575

Flexible Shaft Ass'y

$

$

Not available

30

Poulan 30102

Flex Shaft Lube

Note: (Optional)

$

$

Not available

Poulan 701569

Tap-N-Go Repair Kit

Note: For Old Style Only; (Incl. #5, 6, 9, 10 & 13)

$

$

Not available

31

Poulan 92134

Line Saver - Old Style

$

$

Not available

A

Poulan 26274

Decal - "D" Handle Warning Decal

$

$

Not available
