150 Z (7800760) - Simplicity Axion 33" Zero-Turn Mower, 18.5hp Controls Group (7501106) Parts Diagram

Axion 33" Zero-Turn Mower, 18.5hp

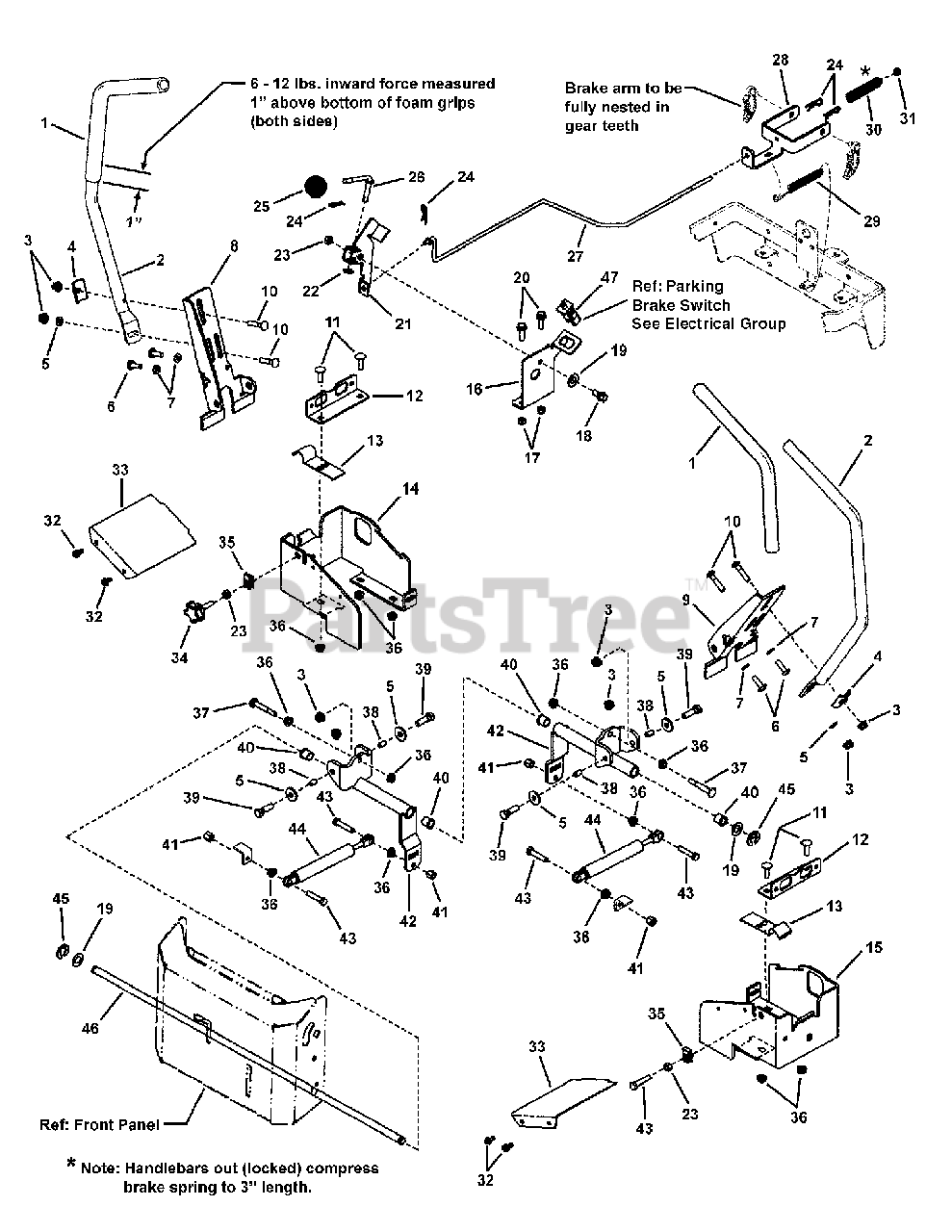

Controls Group (7501106) Parts Diagram

  • Title

1

Simplicity 1726410SM

GRIP, Foam Handle Bar

$11.99

$

In Stock, only 1 left!

0

2

Simplicity 1727796ASM

TUBE, Handle

$70.99

$

Usually ships in 2-12 days

0

3

Simplicity 1960686SM

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1720452SM

CLAMP, Tube, Saddle

$12.99

$

In Stock, only 1 left!

0

5

Simplicity 1919381SM

WASHER, Flat, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1960086SM

SCREW, Truss Head Torx, 5/16-18 x 7/8

$4.99

$

In Stock, only 2 left!

0

7

Simplicity 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1727926ASM

BRACKET, Tube Mount LH

$49.99

$

Usually ships in 2-12 days

0

9

Simplicity 1727927ASM

BRACKET, Tube Mount RH

$40.99

$

Usually ships in 2-12 days

0

10

Simplicity 1931338SM

BOLT, Carriage 5/16-18 x 1-3/4, GR5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 x 1, GR5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

12

Simplicity 1727663ASM

BRACKET, "L" Switch

$9.99

$

Usually ships in 2-12 days

0

13

Simplicity 1727919SM

CLIP, Brake

$7.49

$

In Stock, only 2 left!

0

14

Simplicity 1728010ASM

BRACKET, Mounting Handle Pivot, RH

$86.99

$

Usually ships in 2-12 days

0

15

Simplicity 1728009ASM

BRACKET, Mounting Handle Pivot, LH

$64.99

$

Usually ships in 2-12 days

0

16

Simplicity 7300992AYP

BRACKET, Brake Pivot- ZT
(Superseded to 7300992BMYP)

$11.99

$

Usually ships in 2-12 days

0

17

Simplicity 7091298SM

NUT, Hex Nyloc, 5/16-18-3B
(Superseded to 5025057SM)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 7015761YP

BOLT, Shoulder, 5/16-18
(Superseded to 703839)

$5.49

$

In Stock, only 2 left!

0

19

Simplicity 1960027SM

WASHER, Flat, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 7091591SM

BOLT, Hex Flange Lock, 5/16-18 x 1
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 7300993AYP

ARM, Brake Pivot- ZT
(Superseded to 7300993BMYP)

$9.49

$

Usually ships in 2-12 days

0

22

Simplicity 7090188SM

WASHER, Flat, 3/8
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 1920161SM

NUT, Hex Jam, 5/16-18

$4.49

$

In Stock, only 2 left!

0

24

Simplicity 1722460SM

HAIR PIN
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

25

Simplicity 7072403YP

KNOB, w/5/16-18 NILN (Brake/Clutch)

$8.49

$

In Stock, only 1 left!

0

26

Simplicity 7102567YP

ROD, Park Brake- ZT (5/16-18 thread)

$9.99

$

Usually ships in 2-12 days

0

27

Simplicity 7102551YP

ROD, Manual Parking Brake (1/4-20 threads)

$26.99

$

In Stock, only 1 left!

0

28

Simplicity 1727814ASM

BRACKET, Dual Brake

$16.99

$

Usually ships in 2-12 days

0

29

Simplicity 1709314SM

SPRING, Extension

$8.99

$

Usually ships in 2-12 days

0

30

Simplicity 1729277SM

SPRING, Compression

$6.99

$

In Stock, only 1 left!

0

31

Simplicity 1960694SM

NUT, Hex Flange Nyloc, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1925003SM

CAPSCREW, Hex Washer Head, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

33

Simplicity 1727933ASM

COVER, Lower Handle

$16.99

$

Usually ships in 2-12 days

0

34

Simplicity 1726839SM

KNOB, 5/16-18 x 1-1/4" Extension Thread

$7.49

$

In Stock, only 2 left!

0

35

Simplicity 1960717SM

NUT, 5/16-18 Speed (Lug Type .050/.200, Black)

$6.49

$

Usually ships in 2-12 days

0

36

Simplicity 1931277SM

NUT, Hex Flange Lock, Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

37

Simplicity 1960723SM

BOLT, Carriage, 5/16-18 x 2-1/4, GR5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

38

Simplicity 1666697SM

SPACER

$6.49

$

In Stock, only 2 left!

0

39

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, GR5
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

40

Simplicity 1715025SM

BUSHING

$4.49

$

Usually ships in 2-12 days

0

41

Simplicity 1919438SM

NUT, Hex Lock, ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 1727603ASM

PIVOT CONTROL
(Superseded to 1727603BMYP)

$62.99

$

Usually ships in 2-12 days

0

43

Simplicity 1921221SM

CAPSCREW, 5/16-18 x 1-1/2, GR5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

44

Simplicity 1727918SM

SHOCK ABSORBER

$

$

Not available

45

Simplicity 1703805SM

RING, Klipring Extension (for .500 Dia. Shaft)

$3.49

$

In Stock, Qty 12

0

46

Simplicity 1725927SM

SHAFT, Cross

$33.99

$

Usually ships in 2-12 days

0

47

Simplicity 7022886YP

SWITCH, Push Button

Note: (Parking Brake)

$14.99

$

In Stock, Qty 20+

0
