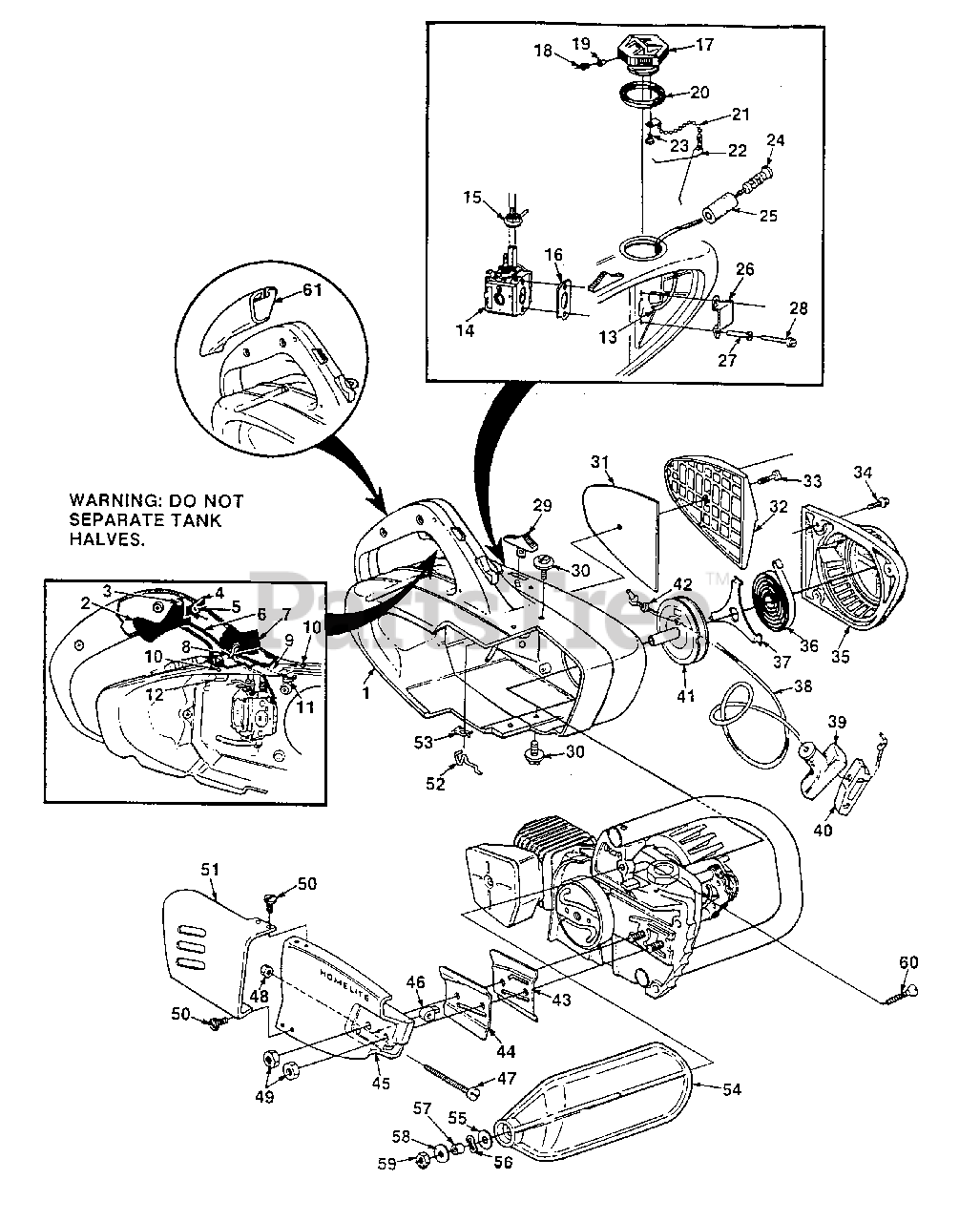

150 (UT-10439) - Homelite Chainsaw Starter, Tank And Drivecase Cover Parts Diagram

Chainsaw

Starter, Tank And Drivecase Cover Parts Diagram

  • Title
1

Homelite A686441A

ENGINE COVER

Note: Includes items 2 - 13.

$

$

Currently unavailable

1

Homelite A69549A

ENGINE COVER

Note: (150-E) Includes items 2 - 13.

$

$

Currently unavailable

2

Homelite A-93044

TRIGGER- Throttle

$

$

Currently unavailable

3

Homelite 68548

PIN- Trigger

$

$

Not available

4

Homelite 68626

SPRING- Trigger latch

$

$

Not available

5

Homelite 68641

PIN- Grooved

$

$

Not available

6

Homelite 68550

LINKAGE- Throttle

$96.99

$

Usually ships in 3-7 days

0

7

Homelite 68580

BUTTON- Stop switch

$

$

Currently unavailable

8

Homelite 68581

SPRING- Stop switch

$

$

Not available

9

Homelite 68576

LINK- Grounding switch

$

$

Not available

10

$

$

Not available

11

Homelite 68577

CONTACT- Grounding switch

$

$

Not available

12

Homelite 68639

CLAMP- High tension

$

$

Not available

13

Homelite 9477232

TUBING- Rubber (fuel) 8"
(Superseded to UP03905)

$

$

Not available

14

Homelite A69957B

CARBURETOR- Walbro HDC-54

$

$

Currently unavailable

Homelite A95230A

CARBURETOR- Till HK-30 (alternate source)

$

$

Currently unavailable

15

Homelite A-70332

DETENT- Carburetor

$

$

Currently unavailable

16

Homelite 68537

SPACER- Carburetor

$

$

Not available

17

Homelite A69500A

CAP- Fuel filler
(Superseded to UP06559)

Note: Includes items 18 - 23.

$

$

Not available

18

Homelite 69454

FILTER- Fuel cap

$

$

Not available

19

Homelite 69451

VALVE- Check

$

$

Not available

20

Homelite 69501

GASKET- Fuel filler cap

$

$

Not available

21

Homelite 69502

CHAIN- Bead

$

$

Not available

22

Homelite 69503

RETAINER
(Superseded to 96535)

$

$

Not available

23

Homelite 82256

SCREW- Pan hd., #6 x 1/4
(Superseded to 82256A)

$

$

Not available

24

Homelite A-69923

FILTER- Fuel

$

$

Currently unavailable

25

Homelite 64083

ELEMENT- Felt filter

$

$

Not available

26

Homelite 68534

DEFLECTOR- Air

$

$

Not available

27

Homelite 68560

BUSHING- Flanged

$

$

Not available

28

Homelite 82224

SCREW- Hex washer hd., 8-32 x 2

$

$

Not available

29

Homelite 68551

BUTTON- Choke

$

$

Not available

30

Homelite 69335A

SCREW- Sems hex hd., 10-24 x 5/8

$

$

Currently unavailable

31

Homelite 68532

FILTER- Element air

$

$

Not available

32

Homelite 68531A

COVER- Air filter

$

$

Currently unavailable

33

Homelite 68535

SCREW- Cover retaining

$

$

Not available

34

Homelite 80983

SCREW- Hex washer hd., 8-32 x 1/2
(Superseded to 80560)

$

$

Not available

Homelite A68611A

STARTER- Complete

Note: Includes items 35 - 41.

$

$

Currently unavailable

35

Homelite A68523A

HOUSING- Starter

$

$

Currently unavailable

36

Homelite 65107

SPRING- Rewind

$

$

Not available

37

Homelite 68612

RETAINER- Rewind spring

$

$

Currently unavailable

38

Homelite A-93876

ROPE- Starter #4 (42" long)

$

$

Not available

39

Homelite A69962B

GRIP- Starter rope

$19.99

$

Usually ships in 3-7 days

0

40

Homelite 70018A

INSERT- Rope retaining

$

$

Not available

41

Homelite A68645A

PULLEY- Starter
(Superseded to UP07545)

Note: Includes item 42.

$

$

Currently unavailable

42

Homelite 93862

WASHER- Nylon

$4.99

$

Usually ships in 3-7 days

0

43

Homelite 67300C

PLATE- Guide bar (inner)

$

$

Currently unavailable

44

Homelite 67299C

PLATE- Guide bar (outer)

$

$

Currently unavailable

45

Homelite A686141A

COVER- Drivecase

Note: Includes items 46 - 48.

$

$

Not available

46

Homelite 651121

PIN- Guide bar adjusting
(Superseded to 651121A)

$

$

Not available

47

Homelite 65175A

SCREW- Guide bar adjusting

$

$

Not available

48

Homelite 81206

NUT- Hex centerlock, 10-32
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

49

Homelite 81196

NUT- Hex 5/16-18
(Superseded to 671076001)

$1.49

$

In Stock, only 2 left!

0

50

Homelite 80939

SCREW- Pan hd., 8-32 x 3/8 (150 AOW)
(Superseded to 82600)

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 940711

SHIELD MUFFLER- (150 AOW)

Note: Included in Muffler temp. kit (150 AOW) P/N A-94068.

$

$

Currently unavailable

52

Homelite 68552

ROD- Choke

$

$

Not available

53

Homelite 68584A

SPRING- Choke

$

$

Currently unavailable

54

Homelite A-95088

HANDGUARD

$

$

Currently unavailable

55

$

$

Not available

56

$

$

Not available

57

$

$

Not available

58

Homelite 840651

WASHER
(Superseded to UP04241)

$

$

Not available

59

Homelite 81225

NUT- Hex (12-24)

$

$

Not available

60

Homelite 80945

SCREW- Flat head

$

$

Not available

61

Homelite 69303

COVER- Right hand

Note: (150-E)

$

$

Currently unavailable
