15-48SC03 - Toro 48" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) BELT & SPINDLE ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck

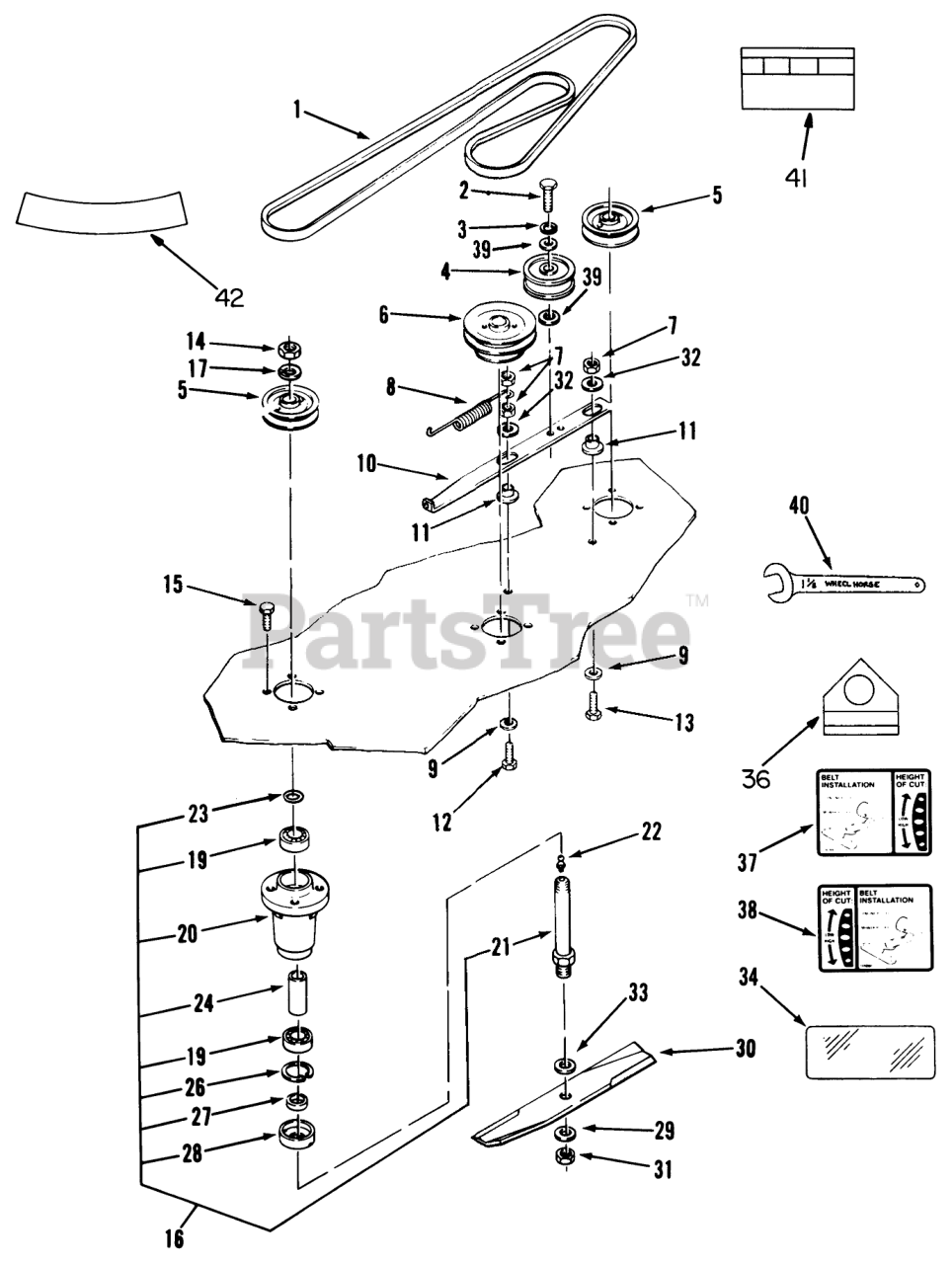

BELT & SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 1594

V-BELT

$39.99

$

In Stock, only 1 left!

0

1

Toro 6738

V BELT

$35.99

$

In Stock, only 1 left!

0

2

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

3

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

4

Toro 112895

Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, only 3 left!

0

4

Toro 112425

Idler Pulley
(Superseded to 92-7101)

$34.99

$

Usually ships in 3-6 days

0

5

Toro 110146

PULLEY-BLADE, DRIVE

$71.99

$

In Stock, only 1 left!

0

5

Toro 109967

PULLEY

$80.99

$

In Stock, only 1 left!

0

6

Toro 110147

PULLEY-MOWER, 48IN

$131.99

$

In Stock, only 3 left!

0

6

Toro 110148

PULLEY

$119.99

$

In Stock, only 1 left!

0

7

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

8

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

10

Toro 106120

BAR-IDLER SUPPORT

$78.99

$

In Stock, only 2 left!

0

11

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

12

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

14

Toro 915089

Nut
(Superseded to 3220-6)

$1.49

$

In Stock, only 2 left!

0

15

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

16

Toro 110172

Spindle Assembly (Incl. Ref. #19-24, & 26-28)
(Superseded to 111726)

$266.99

$

In Stock, Qty 5

0

17

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

19

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

20

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0

21

Toro 112674

SHAFT-SPINDLE

$85.99

$

In Stock, Qty 5

0

22

Toro 1030

Zerk

$

$

Not available

23

Toro 971015

O RING

$2.49

$

In Stock, Qty 6

0

24

Toro 116085

TUBE

$33.99

$

In Stock, only 1 left!

0

26

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 12

0

27

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

29

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

30

Toro 106078

Blade
(Superseded to 106637)

$101.99

$

In Stock, only 1 left!

0

30

Toro 106077

BLADE-14IN
(Superseded to 106636)

$95.99

$

In Stock, only 1 left!

0

31

Toro 9150904

Nut-Jam
(Superseded to 3220-7)

$4.49

$

In Stock, Qty 5

0

32

Toro 107675

WASHER

$3.49

$

In Stock, Qty 18

0

33

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

34

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0

36

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

37

Toro 106748

DECAL-HEIGHT & BELT

$11.99

$

In Stock, only 1 left!

0

38

Toro 106753

DECAL-HEIGHT & BELT

$13.99

$

Usually ships in 3-6 days

0

39

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 16

0

40

Toro 114647

Spindle Wrench

$

$

Not available

41

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

42

Toro 76-4070

DECAL - DANGER

$23.99

$

Usually ships in 3-6 days

0
