15-42RC01 - Toro 42" Rear-Discharge Mower Deck (1989) REAR DISCHARGE MOWER-42 IN. (107 CM) VEHICLE IDENTIFICATION NUMBER 15-42RC01 Parts Diagram

42" Rear-Discharge Mower Deck

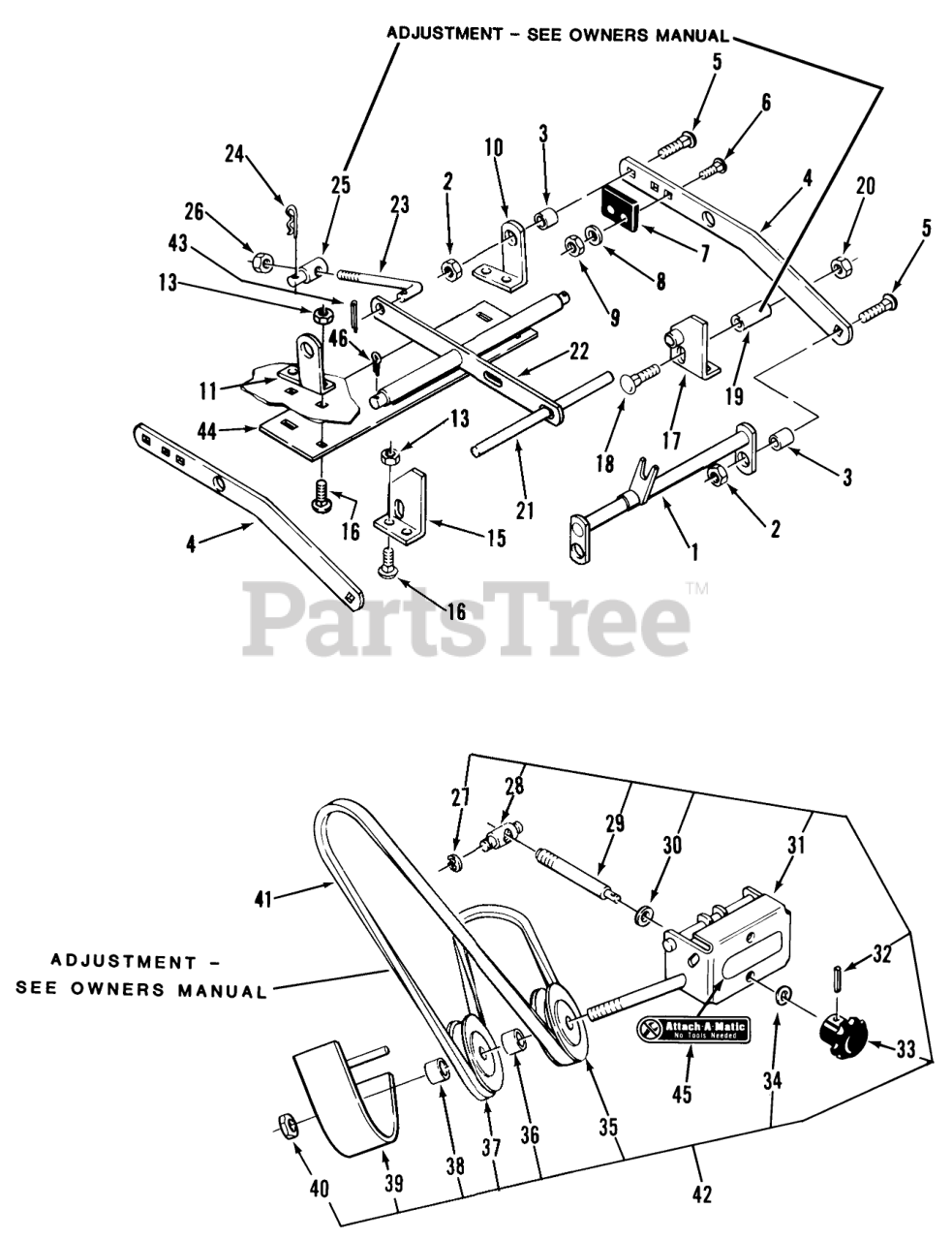

REAR DISCHARGE MOWER-42 IN. (107 CM) VEHICLE IDENTIFICATION NUMBER 15-42RC01 Parts Diagram

  • Title

1

Toro 101758

Hitch
(Superseded to 101758-01)

$131.99

$

In Stock, only 1 left!

0

2

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

3

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

4

Toro 101777

Bar Draft
(Superseded to 101777-01)

$100.99

$

Usually ships in 3-6 days

0

5

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

6

Toro 900039

Bolt-Carriage
(Superseded to 3230-3)

$1.49

$

In Stock, Qty 20+

0

7

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0

8

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

9

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

10

Toro 107511

LH Rear Bracket
(Superseded to 107511-01)

$46.99

$

Usually ships in 3-6 days

0

11

Toro 107512

Rear Bracket RH
(Superseded to 107512-01)

$46.99

$

Usually ships in 3-6 days

0

13

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

15

Toro 102566

Front Bracket RH
(Superseded to 102566-01)

$61.99

$

Usually ships in 3-6 days

0

16

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

17

Toro 102567

Front Bracket LH
(Superseded to 102567-01)

$61.99

$

Usually ships in 3-6 days

0

18

Toro 900093

CARRIAGE BOLT -4

$1.49

$

In Stock, only 3 left!

0

19

Toro 979360

USE 979360P SPACER
(Superseded to 9793604)

$12.99

$

Usually ships in 3-6 days

0

20

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

21

Toro 102570

Front Shaft
(Superseded to 102570-03)

$128.99

$

Usually ships in 3-6 days

0

22

Toro 110268

Leveler
(Superseded to 110268-01)

$128.99

$

Usually ships in 3-6 days

0

23

Toro 101828

ROD-LEVEL ADJUST

$28.99

$

In Stock, only 1 left!

0

24

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

25

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

26

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

27

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

28

Toro 101708

TRUNNION-DOUBLE

$31.99

$

Usually ships in 3-6 days

0

29

Toro 101842

ROD ADJ

$62.99

$

Usually ships in 3-6 days

0

30

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

31

Toro 101728

Front Support
(Superseded to 101728-01)

$210.99

$

Usually ships in 3-6 days

0

32

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

33

Toro 101851

KNOB-ADJUSTMENT

$25.99

$

In Stock, only 3 left!

0

34

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

35

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 3 left!

0

36

Toro 101734

SPACER

$4.99

$

In Stock, Qty 10

0

37

Toro 104975

PULLEY-FLAT IDLER

$56.99

$

In Stock, only 2 left!

0

38

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

39

Toro 102582

Belt Cover
(Superseded to 102582-01)

$101.99

$

Usually ships in 3-6 days

0

40

Toro 915007

Nut
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 20+

0

41

Toro 108834

V-BELT

$36.99

$

In Stock, only 1 left!

0

42

Toro 101657

ASM-SUPPORT,IDLER

$644.99

$

Usually ships in 3-6 days

0

43

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

44

Toro 115056

PLATE R
(Superseded to 115056-01)

$

$

Not available

45

Toro 115197

Decal-Attac-O-Matic
(Superseded to 94-6330)

$

$

Not available

46

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0
