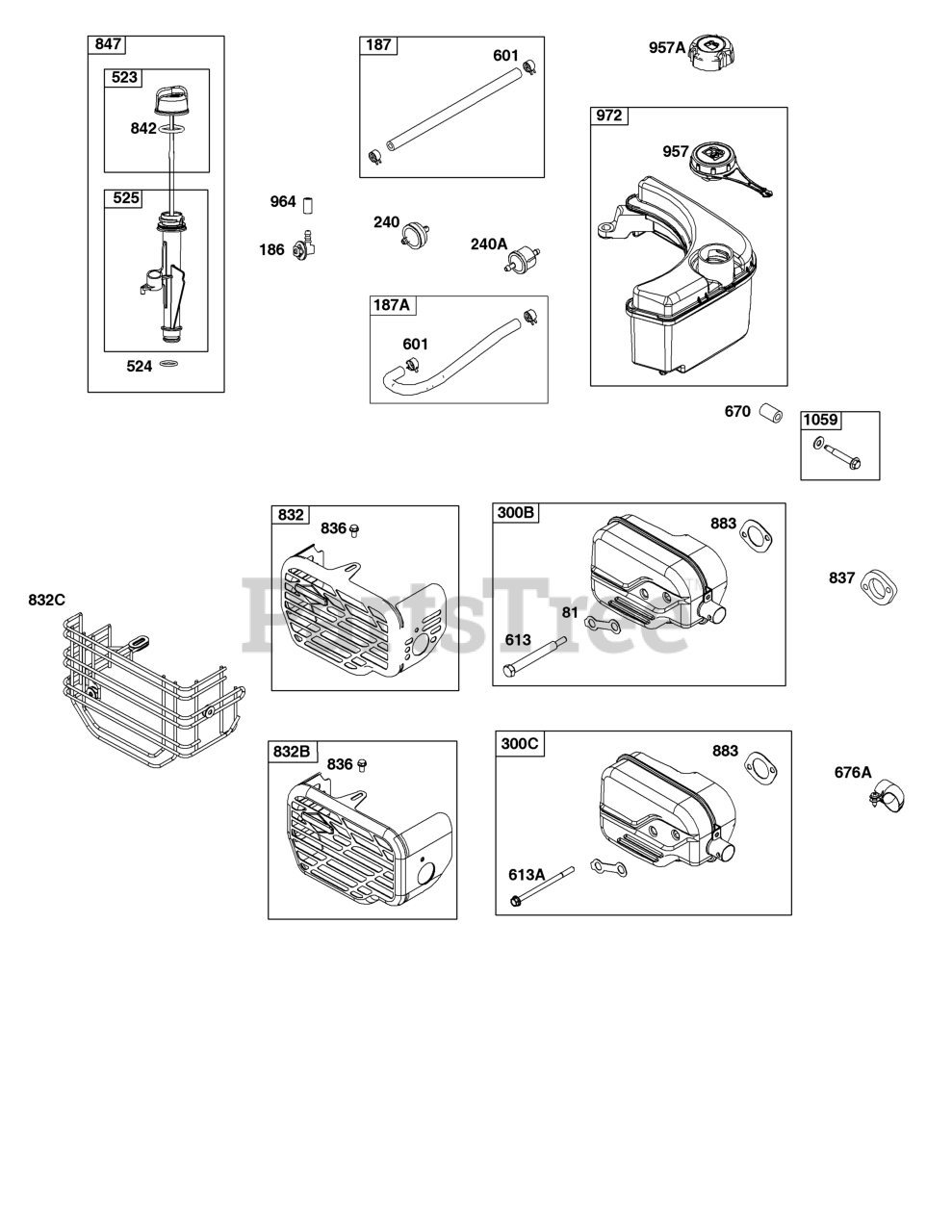

14D932-0110-F1 - Briggs & Stratton Vertical Engine Exhaust System, Fuel Supply, Lubrication Parts Diagram

Vertical Engine

Exhaust System, Fuel Supply, Lubrication Parts Diagram

  • Title

81

Briggs & Stratton 691740

Lock-Muffler Screw

$5.49

$

In Stock, Qty 7

0

186

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, only 4 left!

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 796491

Line-Fuel

Note: (Formed Hose)

$19.99

$

In Stock, only 2 left!

0

240

Briggs & Stratton 298090S

Filter-Fuel

$

$

Not available

240A

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

300B

Briggs & Stratton 799259

Muffler
(Superseded to 596409)

Note: Used Before Code Date 16112100

$78.99

$

In Stock, only 1 left!

0

300C

Briggs & Stratton 596409

Muffler

Note: Used After Code Date 16112000

$78.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 796503

DIPSTICK

$14.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 692296

Seal-Dipstick Tube

$4.99

$

In Stock, Qty 8

0

525

Briggs & Stratton 796502

Tube-Dipstick
(Superseded to 84005996)

$31.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 799260

Screw

Note: (Muffler) Used Before Code Date 16112100

$4.99

$

In Stock, only 2 left!

0

613A

Briggs & Stratton 596410

Screw

Note: (Muffler) Used After Code Date 16112000

$5.99

$

In Stock, Qty 12

0

670

Briggs & Stratton 793485

Spacer-Fuel Tank

$6.49

$

In Stock, only 1 left!

0

676A

Briggs & Stratton 799187

Deflector-Muffler

$26.99

$

Usually ships in 2-12 days

0

832B

Briggs & Stratton 596014

Guard-Muffler

$33.99

$

In Stock, only 2 left!

0

832C

Briggs & Stratton 597322

GUARD, Muffler

Note: (Wire)

$33.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 597516

Screw

Note: (Muffler Guard)

$3.99

$

In Stock, only 1 left!

0

837

Briggs & Stratton 799261

Spacer-Muffler

$20.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 796501

Dipstick/Tube Assembly
(Superseded to 84005996)

$31.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 793497

Gasket-Exhaust

$7.49

$

In Stock, Qty 20+

0

957

Briggs & Stratton 799585

Cap-Fuel Tank

$17.99

$

In Stock, Qty 20+

0

957A

Briggs & Stratton 692046

Cap-Fuel Tank

$5.49

$

In Stock, Qty 10

0

964

Briggs & Stratton 799159

CAP, Connector

$8.49

$

In Stock, only 1 left!

0

972

Briggs & Stratton 595123

Tank-Fuel

$112.99

$

In Stock, only 1 left!

0

1059

Briggs & Stratton 793471

Kit-Screw/Washer

$5.49

$

Usually ships in 2-12 days

0
