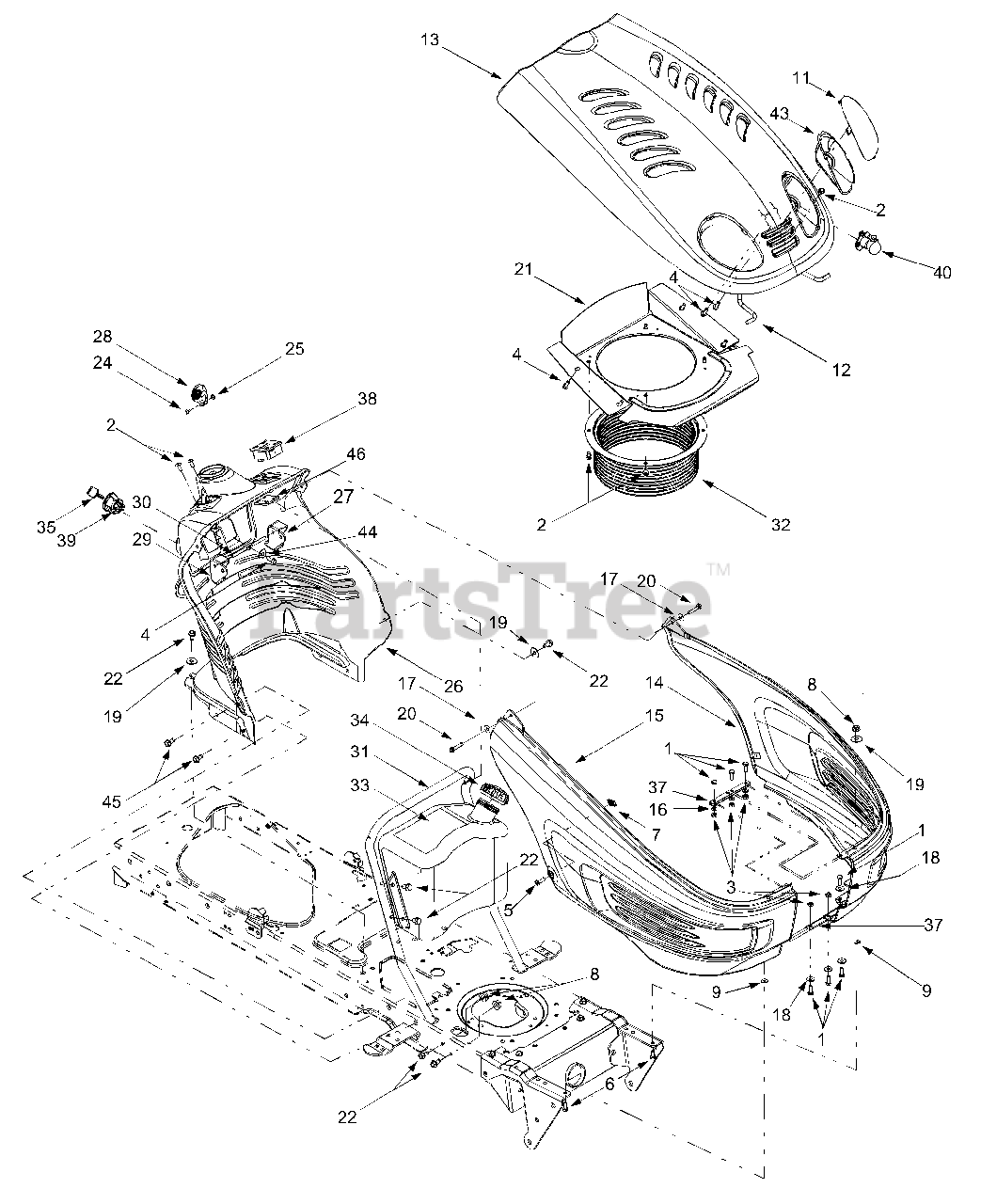

14CU804H401 - Yard-Man Garden Tractor (2004) Hood, Electrical Parts Diagram

Garden Tractor

Hood, Electrical Parts Diagram

  • Title

1

MTD 710-3015

Hex Cap Screw, 1/4-20 x.75

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-3027

Hex Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

In Stock, Qty 5

0

5

MTD 710-0924

Pan Phillips Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

8

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0201

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

11

MTD 731-1978

RH Head Light Lens
(Superseded to 931-1978)

$17.99

$

Usually ships in 3-6 days

0

MTD 731-1979

LH Head Light Lens
(Superseded to 931-1979)

$17.99

$

Usually ships in 3-6 days

0

12

MTD 747-1132A

Hood Support Rod

$

$

Not available

13

MTD 731-1980B

Hood
(Superseded to 931-1980B)

$

$

Not available

14

MTD 731-1981C

LH Side Panel
(Superseded to 931-04958)

$

$

Not available

15

MTD 731-1982C

RH Side Panel
(Superseded to 931-1982C)

$

$

Not available

16

UNKNOWN

$

$

Not available

17

MTD 736-0342

Flat Washer,.283 x.75 x.030

$7.49

$

Usually ships in 3-6 days

0

18

MTD 736-0173

Flat Washer,.28 x.74 x.063

$4.49

$

In Stock, only 4 left!

0

19

MTD 736-3078

Flat Washer,.349 x 1.0 x.063

$4.49

$

In Stock, only 4 left!

0

20

MTD 710-0642

Self-tapping Screw, 1/4-20 x.750

$4.49

$

In Stock, Qty 20+

0

21

MTD 783-0808A

Hood Heat Shield w/o Intake Bellow
(Superseded to 783-0808A-0637)

Variations

MTD 783-0808A-0637

SHIELD-HEAT STYLE - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

22

MTD 710-0726

Self-tapping Screw, 5/16-12

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-3217

Torx Screw, #8-32 x.375

$6.99

$

In Stock, Qty 7

0

25

MTD 712-0142

Hex Nut, 8-32

$4.49

$

In Stock, Qty 9

0

26

MTD 731-0071D

Dash Panel, 4-style

$

$

Not available

27

MTD 731-04214

Parking Brake Lever

$

$

Not available

28

MTD 731-1857

Throttle Control Lever

$14.99

$

In Stock, only 4 left!

0

29

MTD 731-04213

Cruise Control Lever

$12.99

$

Usually ships in 3-6 days

0

30

MTD 747-1155

Brake/Cruise Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

31

MTD 749-1087C

Dash Support Tube

Variations

MTD 749-1087C-0637

Dash Support Tube - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 731-2234A

Intake Bellow

$29.99

$

Usually ships in 3-6 days

0

33

MTD 751-0658D

Fuel Tank, 3-gallon
(Superseded to 751-0658E)

$115.99

$

In Stock, only 2 left!

0

34

MTD 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

35

MTD 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

MTD 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

37

MTD 783-1000A

Grille Support Bracket

Variations

MTD 783-1000A-0637

BRACKET-GRILLE SUP - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 725-04036

Systems Indicator Monitor
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

39

MTD 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

In Stock, Qty 7

0

40

MTD 725-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

MTD 725-0963

Miniature Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

43

MTD 731-1996

RH Headlight Reflector
(Superseded to 777X41432)

$

$

Not available

MTD 731-1995

LH Headlight Reflector
(Superseded to 777X41432)

$

$

Not available

MTD 629-0469B

Headlight Wire Harness
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

MTD 629-1071

Tractor Wire Harness (Manual PTO)
(Superseded to 929-1071)

$314.99

$

Usually ships in 3-6 days

0

MTD 629-04048

Tractor Wire Harness (Electric PTO)
(Superseded to 929-04048)

$

$

Not available

44

MTD 736-0142

Flat Washer,.281 x.50 x.063

$4.99

$

In Stock, only 4 left!

0

45

MTD 710-1611B

Self-Tapping Screw, 5/16-18

$6.99

$

In Stock, only 2 left!

0

46

MTD 783-0462

Electric PTO Switch Bracket Retainer

$

$

Not available
