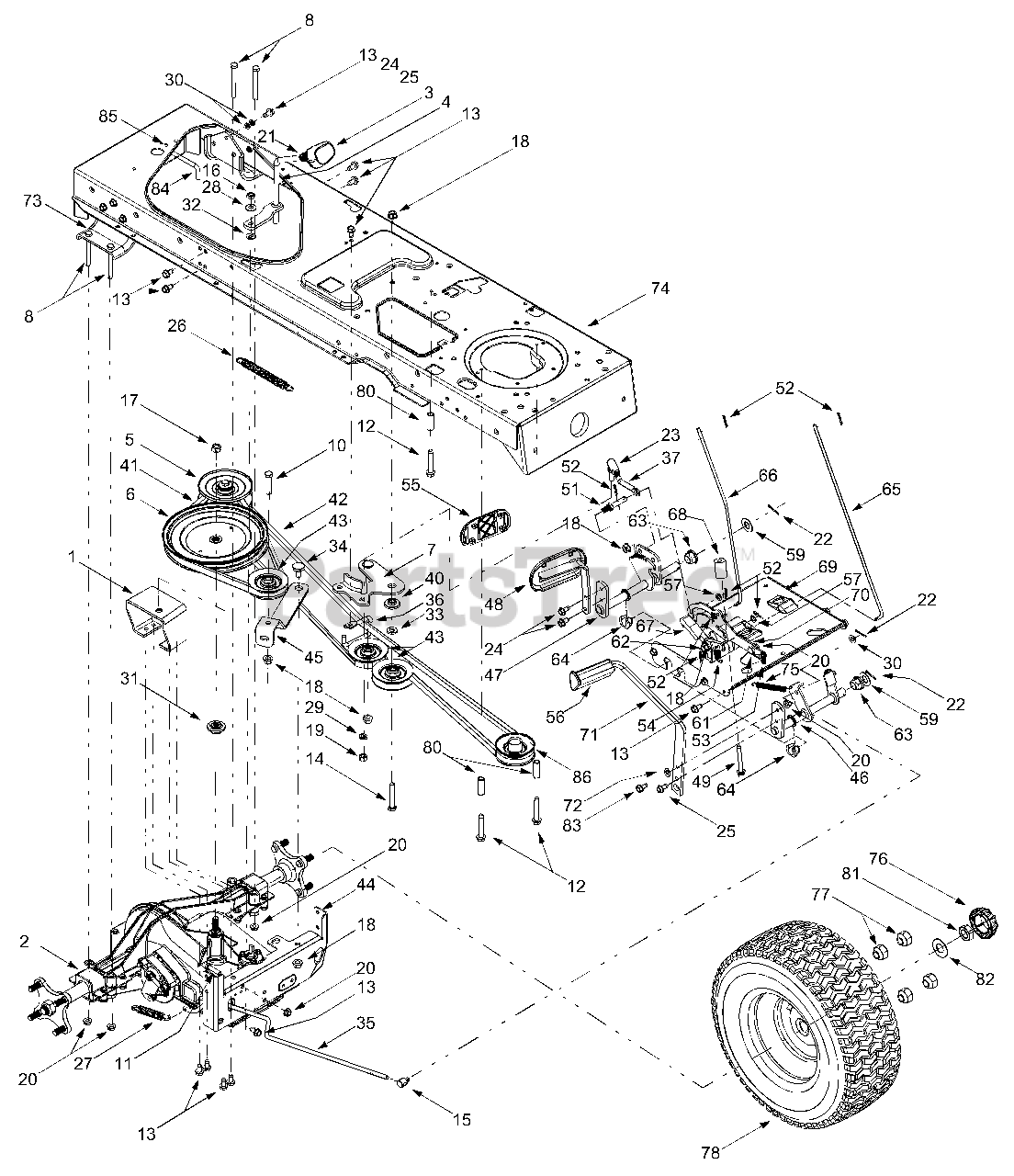

14CU804H401 - Yard-Man Garden Tractor (2004) Drive, Controls Parts Diagram

Garden Tractor

Drive, Controls Parts Diagram

  • Title

1

MTD 618-0375

Variable-speed Bracket Assembly
(Superseded to 918-0375)

$

$

Not available

2

MTD 618-0376

Two-speed Transmission Assembly
(Superseded to 753-05002)

$2299.99

$

Usually ships in 3-6 days

0

3

MTD 631-0009A

Shifter Knob
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

4

MTD 647-0037

Shift Lever

$

$

Not available

5

MTD 656-0050

Variable-speed Pulley Assembly

$

$

Not available

6

MTD 756-0665

Transmission Pulley, 8.5
(Superseded to 956-0665)

$73.99

$

Usually ships in 3-6 days

0

7

MTD 683-0251

Double-idler Bracket

$

$

Not available

8

MTD 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

10

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

11

MTD 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

13

MTD 710-0726

Self Tapping Screw, 5/16-12 x.75

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

15

MTD 711-0677

Ferrule, 5/16 x.312 Dia.
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

16

MTD 712-0181

Hex Jam Nut, 3/8-16

$4.49

$

In Stock, only 3 left!

0

17

MTD 712-0702

Hex Flange Nut, 7/16-20
(Superseded to 912-0702)

$18.99

$

In Stock, only 1 left!

0

18

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

MTD 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-3008

Hex Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 19

0

22

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

23

MTD 723-3018

Ball Joint, 3/8-24
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

24

MTD 710-1260A

LD Screw, 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-0650

Self-tapping Screw, 5/16-18 x.875

$3.99

$

In Stock, Qty 20+

0

26

MTD 732-0384

Extension Spring,.62 Dia. x 6.12
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

27

MTD 732-0716

Extension Spring,.59 OD x 4.0
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

28

MTD 736-0105

Bell Washer,.401 x.870 x.063

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

30

MTD 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

31

MTD 718-0771

Pulley Hub, 1/2 Spline
(Superseded to 918-0771A)

$28.99

$

Usually ships in 3-6 days

0

32

MTD 736-0642

Flat Washer,.44 x.75 x.06

$3.99

$

Usually ships in 3-6 days

0

33

MTD 736-3010

Flat Washer,.407 x.812 x.135

$4.99

$

In Stock, only 1 left!

0

34

MTD 738-0322

Shoulder Screw,.625 Dia. x.21
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

35

MTD 747-1122

Brake Rod

$

$

Not available

36

MTD 747-1123A

Belt Guard

$

$

Not available

37

MTD 747-1127

Idler Adjustment Rod, 3/8

$42.99

$

Usually ships in 3-6 days

0

40

MTD 738-0372B

Shoulder Spacer,.380 ID

$9.49

$

In Stock, Qty 20+

0

41

MTD 754-0468

Variable-speed Belt
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 13

0

42

MTD 754-0467

Drive Belt
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

43

MTD 756-0981A

Flat Idler, 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

44

MTD 783-0667B

Transmission Torque Bracket

Variations

MTD 783-0667B-0637

Trans Torque Bracket - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

MTD 783-0667B-4008

BRACKET-TRANS TORQUE - WINE RED (4008)

$

$

Not available

$40.99

$

Usually ships in 3-6 days

0

45

MTD 783-0669

Idler Bracket
(Superseded to 783-0669-0637)

Variations

MTD 783-0669-0637

Idler Bracket - POWDER BLACK (0637)

$20.99

$

In Stock, only 1 left!

0

$20.99

$

In Stock, only 1 left!

0

46

MTD 647-0031B

Brake Control Shaft Assembly
(Superseded to 753-05606)

Variations

MTD 647-0031B-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

$

$

47

MTD 647-0032

Speed Control Shaft Assembly
(Superseded to 647-0032A-0637)

$

$

Not available

48

MTD 683-0266

Drive Pedal Assembly

$

$

Not available

49

MTD 710-1135

Self Tapping Screw, 5/16-18 x 2.5

$

$

Not available

51

MTD 711-1363

Pin, 3/8-16 x 2.43

$4.49

$

Usually ships in 3-6 days

0

52

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

53

MTD 732-0335

Compression Spring,.405 x 1.17

$

$

Not available

54

MTD 732-0955

Extension Spring,.5 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

55

MTD 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

56

MTD 735-3049

Brake Pedal Pad
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

57

MTD 736-0262

Flat Washer,.385ID x.870OD

$3.99

$

Usually ships in 3-6 days

0

?58

MTD 736-0142

Flat Washer, 9/32 x 1/2 x 1/16

$4.99

$

In Stock, Qty 20+

0

59

MTD 736-0187

Flat Washer,.64 x 1.24 x.06

$4.49

$

In Stock, Qty 20+

0

61

MTD 738-0155

Shoulder Screw,.437 x 1.62
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

62

MTD 738-0507B

Shoulder Screw,.5 x.434

$4.49

$

In Stock, only 4 left!

0

63

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

64

MTD 741-3065B

Split Hex Flange Bearing

$8.49

$

In Stock, Qty 11

0

65

MTD 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

66

MTD 747-04093

Brake Lock Control Rod
(Superseded to 747-04093A)

$

$

Not available

67

MTD 748-0413

Cruise Latch

$32.99

$

Usually ships in 3-6 days

0

68

MTD 748-0415B

Spacer, 5/16 x 1.54

$7.49

$

In Stock, Qty 10

0

69

MTD 783-0653F

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653F-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

70

MTD 783-0732

Drive Lockout Bracket
(Superseded to 783-0732A)

$34.99

$

Usually ships in 3-6 days

0

71

MTD 783-0773A

Brake Pedal
(Superseded to 753-05606)

Variations

MTD 783-0773A-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0773A-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

MTD 783-0773A-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

MTD 783-0773A-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0773A-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

MTD 783-0773A-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0773A-4008

PEDAL - WINE RED (4008)

$

$

Not available

$

$

72

MTD 736-3008

Flat Washer,.344 x.750 x.120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

73

MTD 783-0693

Axle Bracket

Variations

MTD 783-0693-4008

BRACKET-AXLE - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-0693-0637

BRACKET-AXLE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

74

MTD 683-0304C

Lower Frame Assembly

Variations

MTD 683-0304C-0606

No Longer Available FRAME ASM- - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 683-0304C-0637

Lower Frame Assembly - POWDER BLACK (0637)

$

$

Not available

MTD 683-0304C-0650

No Longer Available FRAME ASM- - RED METALLIC (0650)

$

$

Not available

MTD 683-0304C-0665

No Longer Available FRAME ASM- - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0304C-0691

No Longer Available FRAME ASM- - BLACK JACK (0691)

$

$

Not available

MTD 683-0304C-0716

No Longer Available FRAME ASM- - CUB YELLOW-99 (0716)

$

$

Not available

$

$

75

MTD 732-0963

Extension Spring,.5 OD x 6.37

$9.99

$

In Stock, only 4 left!

0

76

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

77

MTD 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 5

0

78

MTD 634-0132

Wheel Assembly Complete, 23 x 9.5 x 12

Variations

MTD 634-0132-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

MTD 634-0132-0941

No Longer Available WHEEL ASM - Carlisle Yellow (0941)

$

$

Not available

$

$

MTD 634-0194

Rim Only
(Superseded to 634-04238)

Variations

MTD 634-0194-0662

RIM ASM:12.0 X 7.0 - OYSTER GRAY (0662)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-0194-0674

RIM ASM:12.0 X 7.0 - YARDMAN YELLOW (0674)

$197.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 734-1728

Tire Only, Square Shoulder

Variations

MTD 734-1728-0901

TIRE-SQUARE TREAD - Carlisle (0901)

$125.99

$

Usually ships in 3-6 days

0

MTD 734-1728-0904

TIRE-SQUARE TREAD - Cheng (0904)

$125.99

$

Usually ships in 3-6 days

0

$125.99

$

Usually ships in 3-6 days

0

80

MTD 750-0566A

Spacer,.372 x.26 x 1.03

$9.99

$

In Stock, only 1 left!

0

81

MTD 712-3026

Jam Nut, 3/4-16

$4.99

$

In Stock, Qty 7

0

82

MTD 736-0316

Flat Washer,.78 x 1.59 x.06

$4.49

$

In Stock, Qty 20+

0

83

MTD 710-1611B

Self-tapping Screw, 5/16-18 x.75

$6.99

$

In Stock, only 2 left!

0

84

MTD 747-1185

Transmission Belt Guard Rod

$

$

Not available

85

MTD 710-0599

Self Tapping Screw,1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

86

MTD 756-0639B

Engine Pulley, 3.56"

$

$

Currently unavailable
