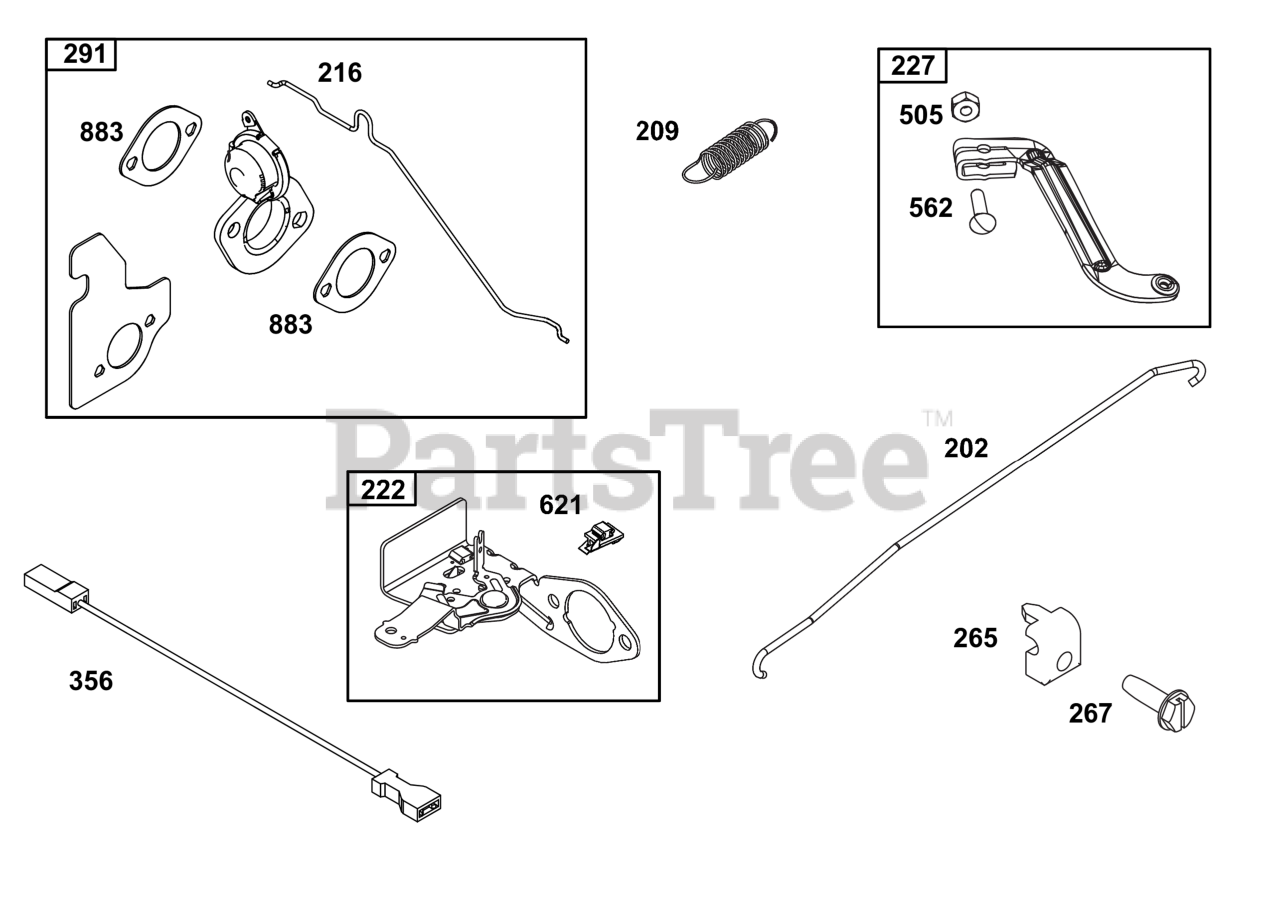

14B932-1653-H5 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

Controls Group Parts Diagram

  • Title

202

Briggs & Stratton 796657

LINK, Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 796926

SPRING, Governor

$8.99

$

In Stock, Qty 9

0

216

Briggs & Stratton 798944

LINK, Choke

$9.49

$

In Stock, only 1 left!

0

222

Briggs & Stratton 796482

BRACKET, Control

$43.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 796487

LEVER, Governor Control

$14.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 690798

CLAMP, Casing

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 692577

SCREW

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

291

Briggs & Stratton 798938

THERMOSTAT

$39.99

$

In Stock, only 1 left!

0

356

WIRE, Stop

Note: (Part information located in Flywheel/Ignition/Starter Group.)

$

$

Not available

505

Briggs & Stratton 793515

NUT

Note: (Governor Control Lever)

$3.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 793514

BOLT

Note: (Governor Lever)

$7.49

$

In Stock, only 1 left!

0

621

Briggs & Stratton 692310

SWITCH, Stop

$5.99

$

In Stock, Qty 20+

0

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available
