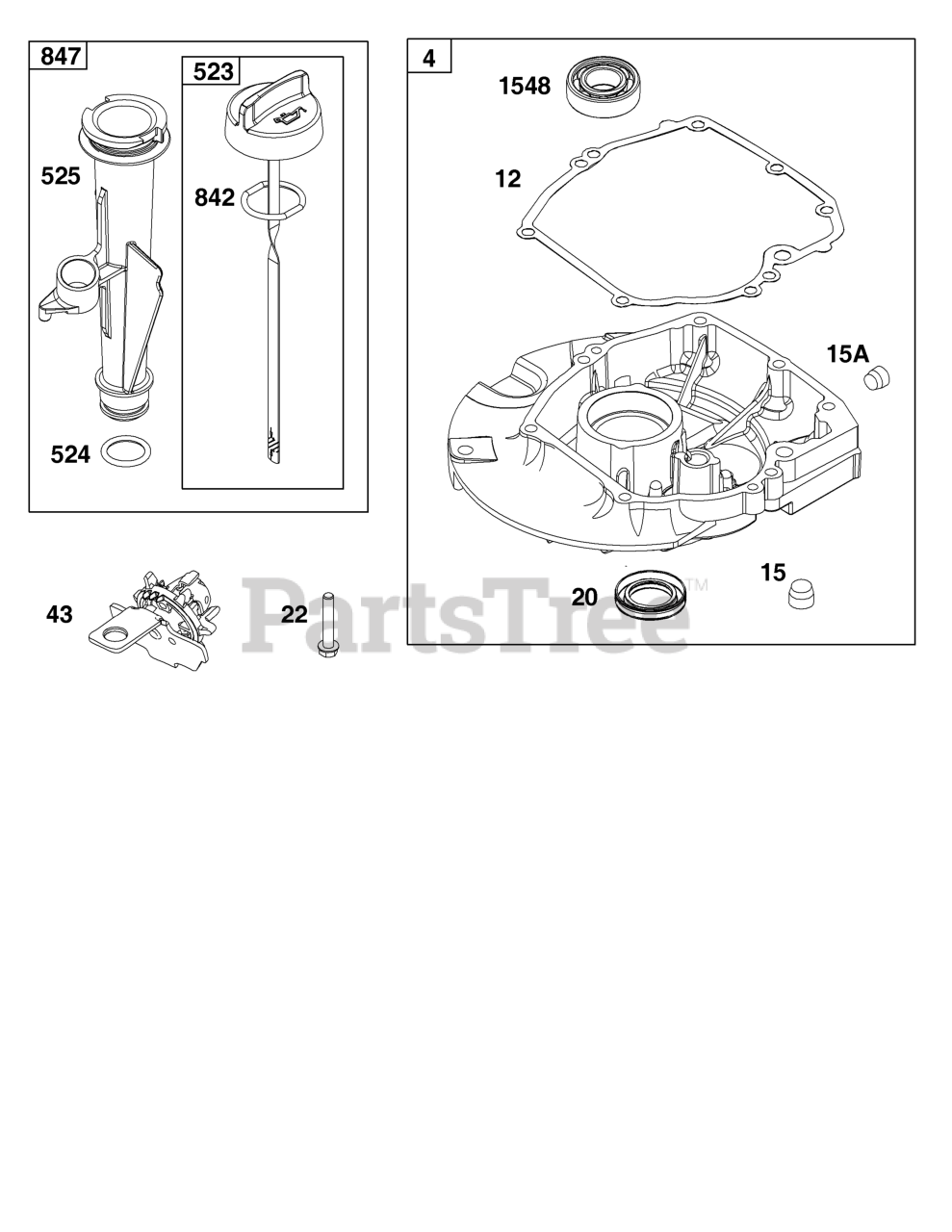

14B932-0218-F1 - Briggs & Stratton Vertical Engine Sump and Lubrication Group Parts Diagram

Vertical Engine

Sump and Lubrication Group Parts Diagram

  • Title

4

Briggs & Stratton 597551

SUMP, Engine

$115.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 692232

GASKET, Crankcase

$5.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

Note: (3/8-18 NPTF)

$5.99

$

In Stock, only 1 left!

0

15A

Briggs & Stratton 703122

PLUG, Oil Drain

Note: (1/4-18 NPTF) (1/4 18 NPTF)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781S

SEAL, Oil

Note: (PTO Side)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691092

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 593912

SLINGER, Governor/Oil

$26.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 796503

DIPSTICK

$14.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 692296

SEAL, O-Ring

Note: (Dipstick Tube)

$4.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 796502

TUBE, Dipstick
(Superseded to 84005996)

$31.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Cap)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 796501

DIPSTICK/TUBE ASSEMBLY
(Superseded to 84005996)

$31.99

$

Usually ships in 2-12 days

0

1548

Briggs & Stratton 798538

BEARING, Ball

Note: (Crankcase Cover/Sump)

$31.99

$

Usually ships in 2-12 days

0
