14B932-0015-H1 - Briggs & Stratton Vertical Engine Alternator, Electric Starter, Ignition Parts Diagram

Vertical Engine

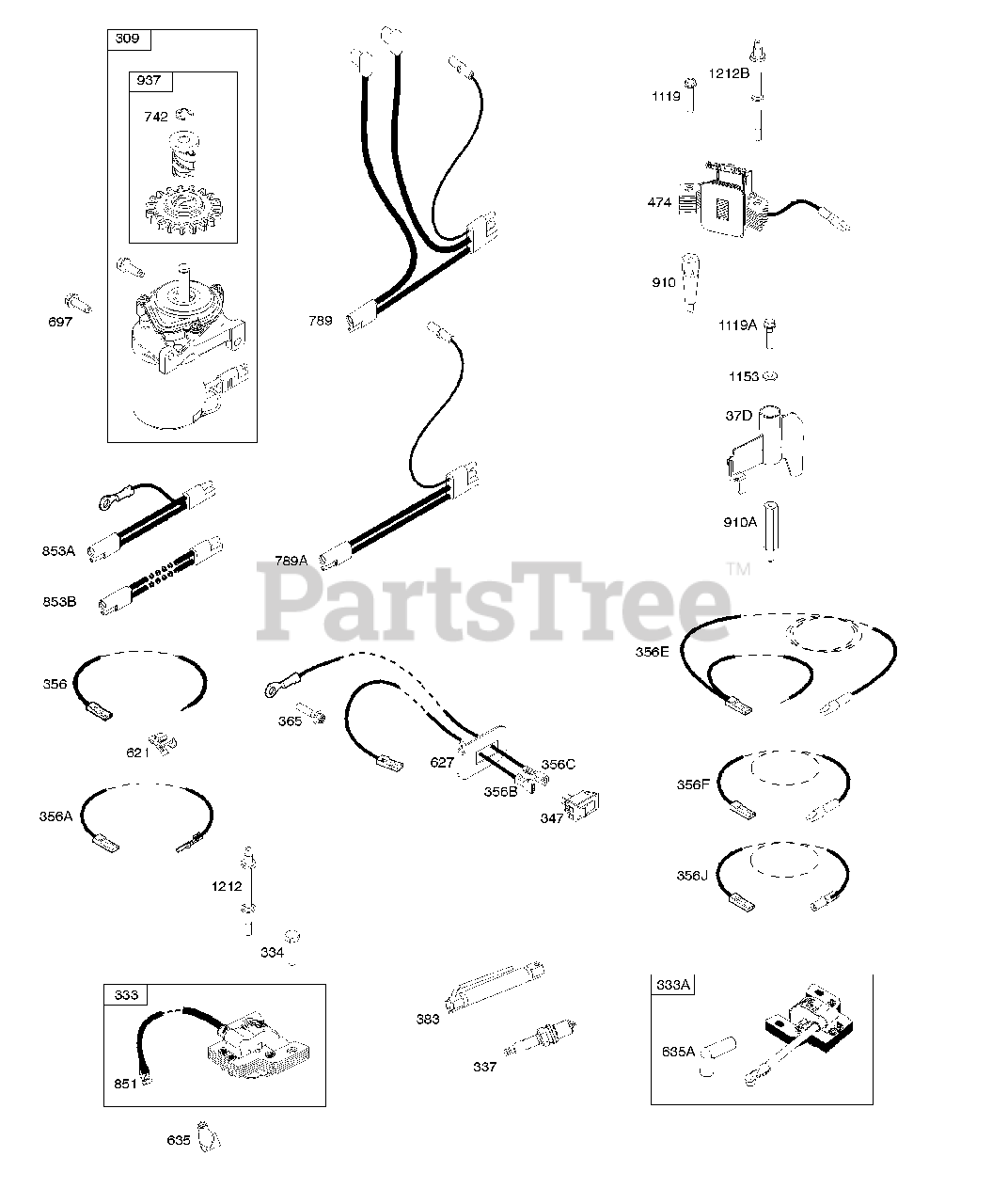

Alternator, Electric Starter, Ignition Parts Diagram

  • Title

309

Briggs & Stratton 799241

Motor-Starter
(Superseded to 84005206)

$209.99

$

Usually ships in 2-12 days

0

333A

Briggs & Stratton 595959

Armature-Magneto

$43.99

$

In Stock, Qty 13

0

334

Briggs & Stratton 793454

Screw

Note: (Magneto Armature)

$4.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 692720

PLUG, Spark

Note: (EMS)

$3.49

$

In Stock, Qty 20+

0

347

Briggs & Stratton 795333

Switch-Rocker

$13.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 796798

Wire-Stop

$11.99

$

Usually ships in 2-12 days

0

365

Briggs & Stratton 793458

Screw

Note: (Carburetor/Throttle Body)

$3.99

$

In Stock, only 2 left!

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 794103

Alternator

$119.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

627

Briggs & Stratton 796702

Bracket-Stopswitch

$5.99

$

Usually ships in 2-12 days

0

635A

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 691127

SCREW

Note: (Starter Motor) (Drive Cap)

$4.49

$

In Stock, Qty 13

0

742

Briggs & Stratton 93941

RETAINER, E Ring

$6.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

853A

Briggs & Stratton 695897

Adapter-Wire

$12.99

$

Usually ships in 2-12 days

0

910

Briggs & Stratton 796498

Stud

Note: (Alternator) Used Before Code Date 16082900

$7.99

$

In Stock, only 1 left!

0

910A

Briggs & Stratton 596414

Stud

Note: (Alternator) Used After Code Date 16082800

$9.99

$

Usually ships in 2-12 days

0

937

Briggs & Stratton 799420

Spline-Starter

$26.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 794100

Screw

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0

1119A

Briggs & Stratton 596420

Screw

Note: (Alternator)

$4.49

$

Usually ships in 2-12 days

0

1153

Briggs & Stratton 691186

Washer

Note: (Support Bracket)

$4.99

$

Usually ships in 2-12 days

0

1212

Briggs & Stratton 799269

Stud

Note: (Blower Housing) Used Before Code Date 12031900

$4.99

$

Usually ships in 2-12 days

0

1212

Briggs & Stratton 591164

Stud

Note: (Blower Housing) Used After Code Date 12031800

$9.49

$

In Stock, Qty 20+

0

1212B

Briggs & Stratton 799263

Stud

Note: (Blower Housing) (Used With Alternator Only) Used Before Code Date 12031900

$6.99

$

Usually ships in 2-12 days

0

1212B

Briggs & Stratton 591166

Stud

Note: (Blower Housing) (Used With Alternator Only) Used After Code Date 12031800

$9.49

$

Usually ships in 2-12 days

0
