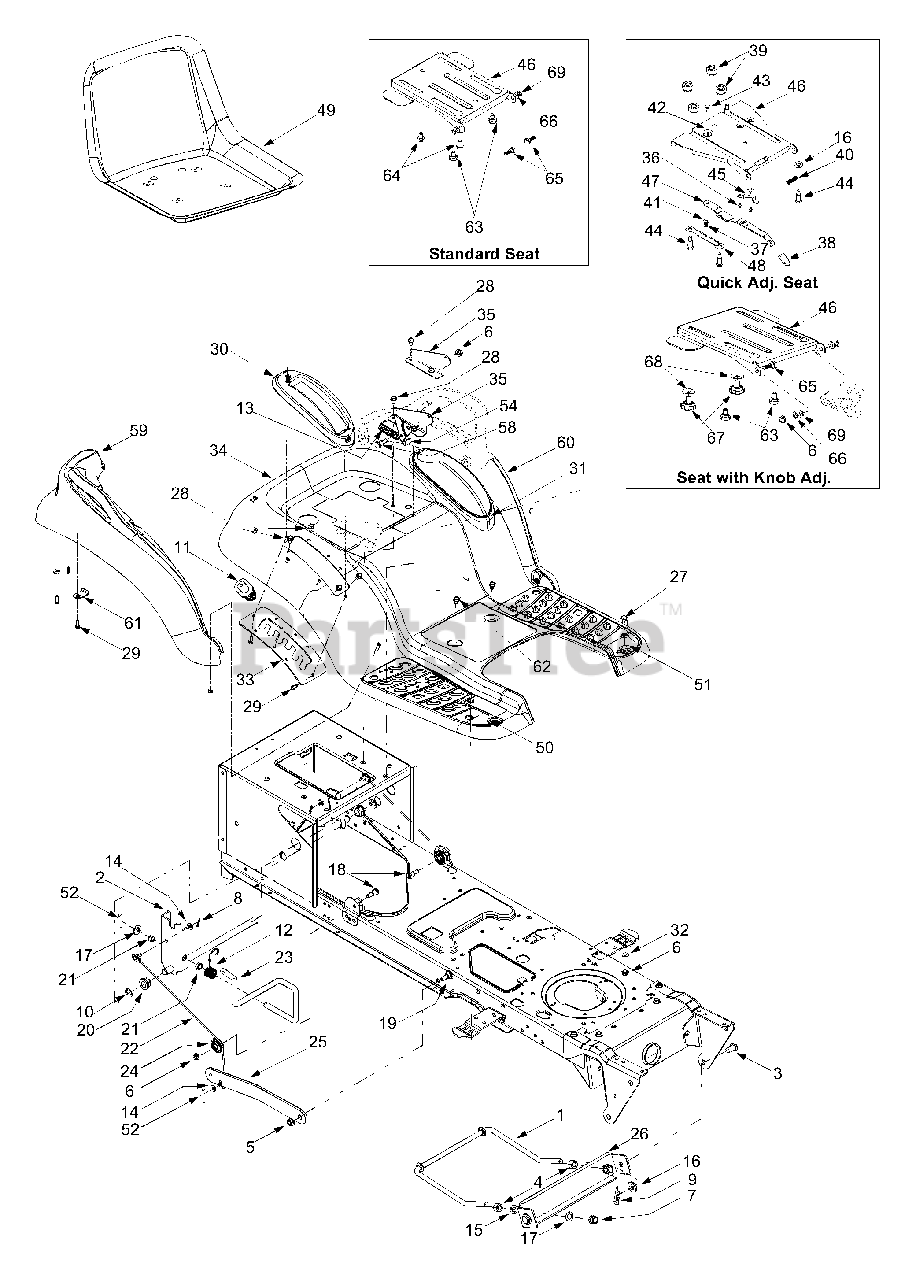

14AZ818H706 - Estate Garden Tractor (2004) (Blain Supply) Seat, Frame Parts Diagram

Garden Tractor

Seat, Frame Parts Diagram

  • Title

1

MTD 747-1130B

Deck Stabilizer Rod

$41.99

$

In Stock, only 3 left!

0

2

MTD 683-0197B

Lift Shaft Assembly
(Superseded to 983-0197)

Variations

MTD 683-0197B-0637

SHAFT-LIFT ASM - POWDER BLACK (0637)

$51.99

$

In Stock, only 1 left!

0

$51.99

$

In Stock, only 1 left!

0

3

MTD 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 16

0

4

MTD 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

MTD 712-0429

Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

8

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

10

MTD 716-0106A

E-Ring

$5.49

$

In Stock, only 2 left!

0

11

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

12

MTD 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

MTD 732-1184

Extension Spring, .84 x 4.6

$11.99

$

In Stock, only 1 left!

0

14

MTD 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

15

MTD 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 5

0

16

MTD 736-3019

Flat Washer, .31 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

17

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

18

MTD 738-0138A

Hex Cap Screw, 5/16-18 x .62

$6.99

$

Usually ships in 3-6 days

0

19

MTD 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

21

MTD 741-0715

Snap Flange Bearing
(Superseded to 941-0715)

$

$

Not available

22

MTD 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

MTD 747-1111A

Lift Handle

$

$

Not available

24

MTD 756-1154

Roller Pulley

$7.99

$

In Stock, only 1 left!

0

25

MTD 783-0678A

Arm Lift
(Superseded to 783-0678C)

Variations

MTD 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

MTD 783-0678A-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

26

MTD 783-0720A

Deck Stabilizer Bracket
(Superseded to 783-0720C)

Variations

MTD 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

MTD 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

27

MTD 710-0260A

Carriage Bolt, 5/16 x .62

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0726

AB Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

30

MTD 731-1990

Lift Lever Cover
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

31

MTD 731-1993

Cover w/ Cup Holder
(Superseded to 731-1993A)

$25.99

$

Usually ships in 3-6 days

0

32

MTD 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, only 3 left!

0

33

MTD 783-0677

Lift Adjustment Bracket
(Superseded to 783-0677B-0637)

Variations

MTD 783-0677-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 783-04331

Fender
(Superseded to 783-04331A)

Variations

MTD 783-04331-0638

FENDER-4 STY 2 STY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04331-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

35

MTD 783-1489

Seat Mounting Bracket
(Superseded to 783-1489C)

Variations

MTD 783-1489-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

36

MTD 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, only 2 left!

0

37

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

38

MTD 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

39

MTD 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

40

MTD 732-0499

Compression Spring, .41 x 1.5

$9.49

$

In Stock, only 1 left!

0

41

MTD 736-0275

Spring Washer, .265 x .562 x .025

$6.99

$

Usually ships in 3-6 days

0

42

MTD 736-0204

Flat Washer, .344 x .62 x .03

$4.49

$

In Stock, Qty 7

0

43

MTD 738-0137A

Shoulder Screw, .340 x .285,1/4-20

$10.99

$

In Stock, Qty 10

0

44

MTD 738-1007

Shoulder Screw, .50 x .50, 3/8-16

$

$

Not available

45

MTD 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

46

MTD 783-04081

Seat Pivot Bracket (Standard Seat)
(Superseded to 783-04081D-0637)

Variations

MTD 783-04081-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

$41.99

$

In Stock, only 1 left!

0

MTD 783-0738A

Seat Pivot Bracket (Quick Adj. Seat)
(Superseded to 783-0738D)

Variations

MTD 783-0738A-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0738A-0606

Seat Pivot Bracket - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0738A-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0738A-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

MTD 783-0738A-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0738A-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

47

MTD 783-0739

Seat Adjustment Lever

Variations

MTD 783-0739-0498

Seat Adjust Lever - OLD CUB YELLOW (0498)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0638

Seat Adjust Lever - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0665

Seat Adjust Lever - YARDMAN GREEN (0665)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0691

Seat Adjust Lever - BLACK JACK (0691)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0716

Seat Adjust Lever - CUB YELLOW-99 (0716)

$25.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

48

MTD 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

49

MTD 757-04010

High Back Seat, Black
(Superseded to 957-04010)

$

$

Not available

50

MTD 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

51

MTD 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

MTD 726-3046

Foot Pad Clips

$3.99

$

In Stock, Qty 16

0

52

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

54

MTD 783-0209C

Seat Lift Bracket
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

58

MTD 738-0296

Shoulder Screw, .437 x .286

$4.49

$

In Stock, Qty 20+

0

59

MTD 731-2618

RH Fender Flare

$

$

Not available

60

MTD 731-2619

LH Fender Flare

$80.99

$

Usually ships in 3-6 days

0

61

MTD 783-1478

Fender Clips

$

$

Currently unavailable

62

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

63

MTD 738-04012

Shoulder Screw
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 10

0

64

MTD 710-0870

Hex Washer Hd. Screw

$6.49

$

In Stock, only 1 left!

0

65

MTD 738-0296

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

66

MTD 736-0275

Flat Washer 5/16

$6.99

$

Usually ships in 3-6 days

0

67

MTD 720-04009

Knob 3/8-16
(Superseded to 720-04009A)

$16.99

$

In Stock, only 2 left!

0

68

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 16

0

69

MTD 726-0201

Speed Clip

$6.99

$

Usually ships in 3-6 days

0
