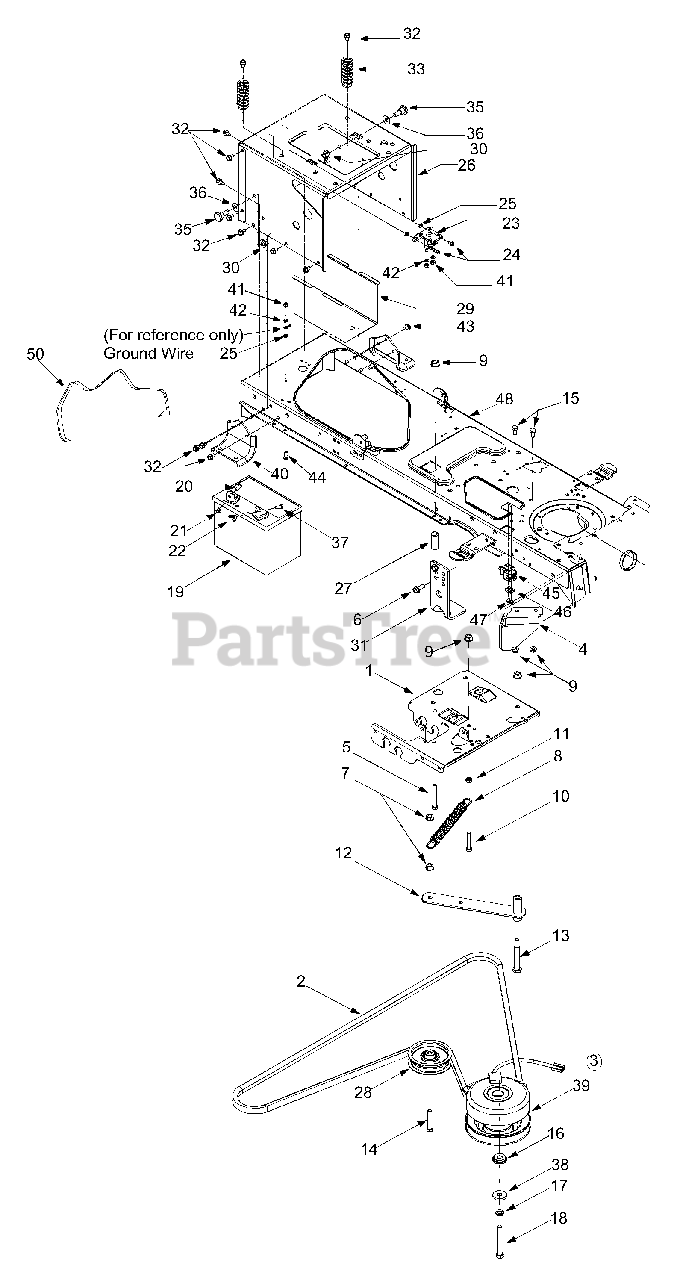

14AZ818H706 - Estate Garden Tractor (2004) (Blain Supply) PTO, Frame Parts Diagram

Garden Tractor

PTO, Frame Parts Diagram

  • Title

1

MTD 783-0653E

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653E-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

2

MTD 754-0476

PTO Belt (two belt deck design)
(Superseded to 954-0476)

$72.99

$

In Stock, Qty 6

0

3

MTD 717-1774C

Elec. PTO Clutch
(Superseded to 917-05001)

$630.99

$

In Stock, only 2 left!

0

3

MTD 736-0277

Washer, Flat 1.031 x 1.62 x .095

$4.49

$

In Stock, Qty 20+

0

4

MTD 783-1487

PTO Clutch Anti-rot. Brakt.
(Superseded to 683-0618-0637)

Variations

MTD 783-1487-0637

Clutch Bracket Assembly, 54 - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

6

MTD 710-0726

Hex Hd Wash. Screw, 5/16-18 x .875

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0130

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

8

MTD 732-0978

Extension Spring, .62 x 5.62

$10.99

$

Usually ships in 3-6 days

0

9

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

11

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 683-0294

Idler Bracket Assembly

Variations

MTD 683-0294-0637

Idler Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 738-3056

Shoulder Screw, 1/2 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

14

MTD 710-3144

Hex Cap Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

16

MTD 738-0785

Shoulder Spacer, 1.38 x .445 x .36
(Superseded to 938-0785)

$25.99

$

In Stock, Qty 9

0

17

MTD 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

18

MTD 710-3157

Hex Cap Screw, 7/16-20 x 3.25
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

19

MTD 725-1706A

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

20

MTD 710-0703

Carriage Screw 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

23

MTD 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

24

MTD 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0222

Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

26

MTD 783-1033A

Hitch Plate

Variations

MTD 783-1033A-0637

No Longer Available HITCH PLAT - POWDER BLACK (0637)

$

$

Not available

MTD 783-1033A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-1033A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-1033A-0691

No Longer Available HITCH PLAT - BLACK JACK (0691)

$

$

Not available

MTD 783-1033A-0716

No Longer Available HITCH PLAT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

MTD 748-0415B

Spacer, 3/8 x 1.54

$7.49

$

In Stock, Qty 10

0

28

MTD 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

29

MTD 783-0349

Battery Tray

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

31

MTD 783-04467

Deck Stop

Variations

MTD 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

MTD 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

32

MTD 710-0726

AB Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

33

MTD 732-04035

Compression Spring

$10.99

$

In Stock, only 4 left!

0

35

MTD 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

36

MTD 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 12

0

37

MTD 738-1132

Shoulder Screw, 1/4-20, .25 x .15

$5.49

$

In Stock, only 2 left!

0

38

MTD 736-0322

Flat Washer, .45 x 1.25 x .164

$9.49

$

In Stock, Qty 7

0

39

MTD 629-04047

Harness Assembly, PTO Clutch
(Superseded to 925-3242)

$23.99

$

Usually ships in 3-6 days

0

40

MTD 783-0693

Axle Bracket

Variations

MTD 783-0693-4008

BRACKET-AXLE - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-0693-0637

BRACKET-AXLE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

41

MTD 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

42

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

43

MTD 710-0607

TT Screw 5/16-18 x 0.5

$6.99

$

In Stock, Qty 11

0

44

MTD 710-0642

TT Screw 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

45

MTD 725-1657A

Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

46

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

47

MTD 710-0224

AB Screw #10-16 x 0.5
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

48

MTD 683-04099

Lower Frame Assembly

Variations

MTD 683-04099-0637

No Longer Available FRAME ASM - POWDER BLACK (0637)

$

$

Not available

MTD 683-04099-0650

FRAME ASM-LOWER - RED METALLIC (0650)

$

$

Not available

MTD 683-04099-0665

No Longer Available FRAME ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-04099-0691

No Longer Available FRAME ASM - BLACK JACK (0691)

$

$

Not available

MTD 683-04099-0709

No Longer Available FRAME ASM - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 683-04099-0716

FRAME ASM-LOWER - CUB YELLOW-99 (0716)

$

$

Not available

$353.99

$

Usually ships in 3-6 days

0

49

MTD 712-0429

Lock Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

50

MTD 747-04121A

Battery Hold-Down Rod

$6.49

$

In Stock, Qty 20+

0
