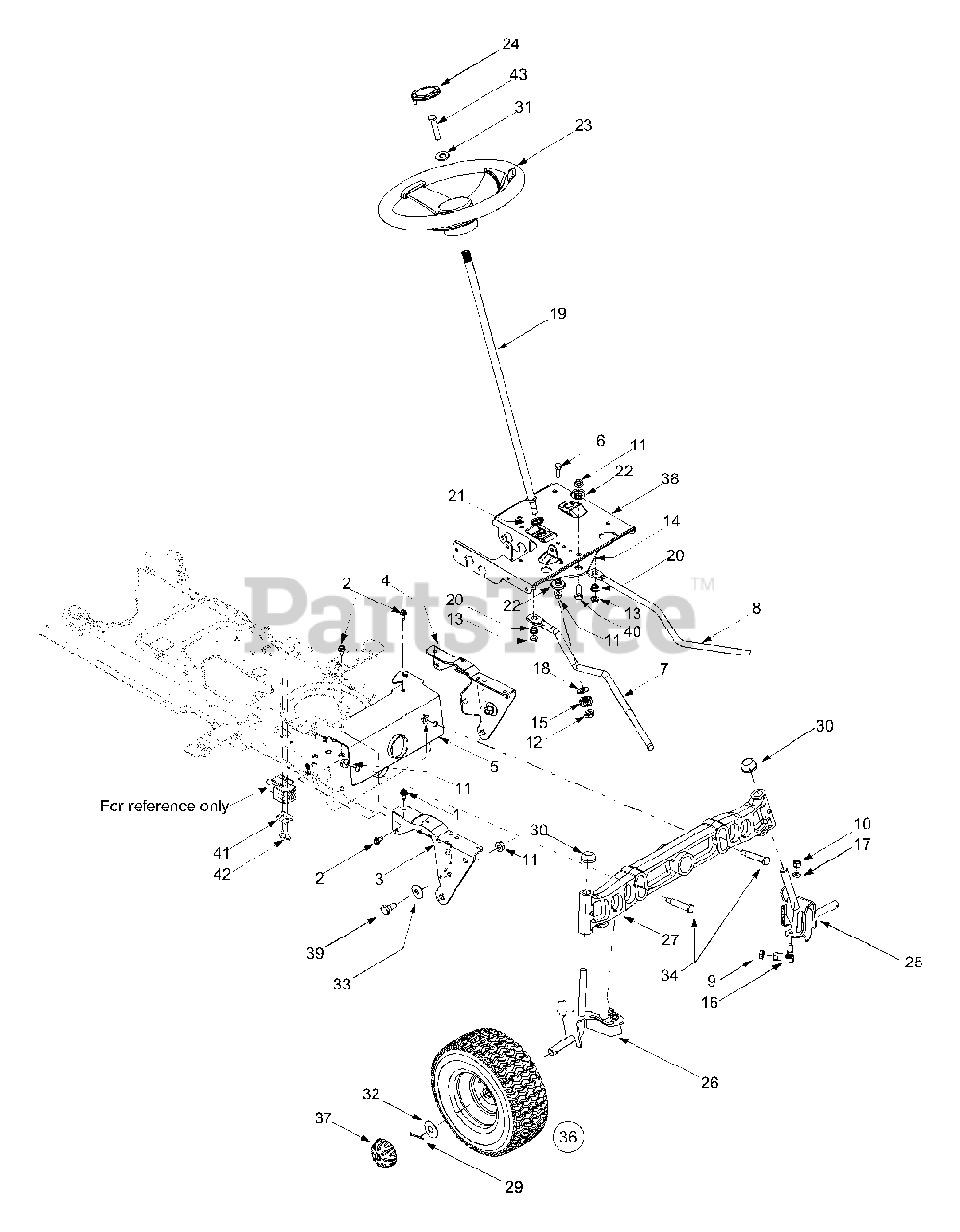

14AZ814K401 - Yard-Man Garden Tractor (2004) Axle Front, Steering Parts Diagram

Garden Tractor

Axle Front, Steering Parts Diagram

  • Title

1

MTD 710-1260A

Self-Tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0604A

Self-Tapping Screw, 16-18 x .625

$4.49

$

In Stock, Qty 20+

0

3

MTD 783-0726B

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

MTD 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0726B-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0726B-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

MTD 783-0726B-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0726B-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 783-0727A

LH Pivot Support Bracket
(Superseded to 783-0727B)

Variations

MTD 783-0727A-0606

PIVOT SUPPORT BRACKET (LH) - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0727A-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0727A-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

MTD 783-0727A-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0727A-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0727A-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

MTD 783-0727A-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

5

MTD 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

MTD 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

MTD 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

MTD 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-1408

RH Drag Link

$

$

Not available

8

MTD 711-1409A

LH Drag Link

$

$

Not available

9

MTD 712-0240

Jam Nut, 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0214

Center Lock Nut, 3/8-24

$6.49

$

In Stock, only 3 left!

0

11

MTD 712-0130

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

12

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

MTD 712-0429

Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

MTD 717-1550E

Steering Gear
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

15

MTD 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

MTD 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

17

MTD 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

19

MTD 738-1001A

Steering Shaft, .625 OD x 24.4

$75.99

$

In Stock, Qty 5

0

20

MTD 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

MTD 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

22

MTD 738-0372B

Shoulder Spacer, .38 ID

$9.49

$

In Stock, Qty 20+

0

23

MTD 631-04008

Steering Wheel: 3 Spoke
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

24

MTD 731-04065

Steering Wheel Cap

$

$

Not available

25

MTD 638-0021A

LH Axle Assembly

$

$

Currently unavailable

26

MTD 638-0022A

RH Axle Assembly

$

$

Currently unavailable

27

MTD 719-0525B

Cast Iron Pivot Bar w/ Fittings
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

29

MTD 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

30

MTD 726-0341

Push Cap

$4.99

$

In Stock, Qty 20+

0

31

MTD 736-3004

Flat Washer

$4.99

$

In Stock, Qty 6

0

32

MTD 736-0316

Flat Washer

$4.49

$

In Stock, Qty 20+

0

33

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

34

MTD 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

35

MTD 710-0643

Hex Bolt, 5/16-18 X 1

$6.99

$

In Stock, Qty 5

0

36

MTD 634-04088

Wheel Assembly Complete
(Superseded to 634-04088A)

Variations

MTD 634-04088-0911

WHEEL ASM COMPLETE - Carlisle Gray (0911)

$228.99

$

Usually ships in 3-6 days

0

MTD 634-04088-0941

WHEEL ASM COMPLETE - Carlisle Yellow (0941)

$

$

Not available

$228.99

$

Usually ships in 3-6 days

0

MTD 634-04082

Rim Only w/ Plastic Bearing
(Superseded to 934-04082)

Variations

MTD 634-04082-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$131.99

$

In Stock, Qty 5

0

MTD 634-04082-0662

RIM ASM 8 X 5.38 - OYSTER GRAY (0662)

$131.99

$

Usually ships in 3-6 days

0

MTD 634-04082-0674

RIM ASSEMBLY - YARDMAN YELLOW (0674)

$131.99

$

Usually ships in 3-6 days

0

MTD 634-04082-4009

RIM ASM - TEE WHITE (4009)

$131.99

$

Usually ships in 3-6 days

0

MTD 634-04082-4042

RIM ASM 8 X 5.38 - CRAFTSMAN GRAY (4042)

$131.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

MTD 734-1727

Tire Only, Square Shoulder

$56.99

$

Usually ships in 3-6 days

0

37

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

MTD 783-0653E

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653E-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

39

MTD 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-04095

Hex Screw3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

41

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

42

MTD 710-0224

AB Screw #10-16 x 0.5
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0
