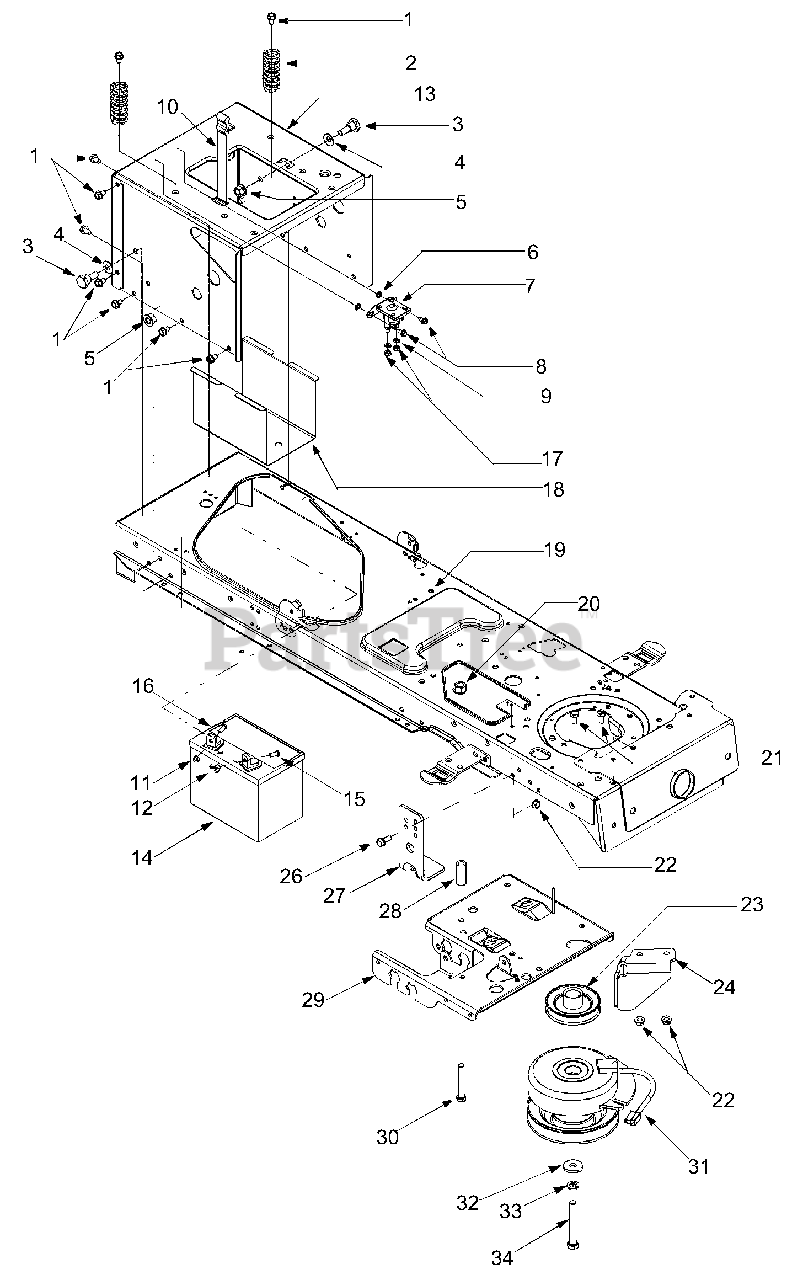

14AZ814K401 - Yard-Man Garden Tractor (2003) PTO, Battery Parts Diagram

Garden Tractor

PTO, Battery Parts Diagram

  • Title

1

MTD 710-0604A

TT Screw 5/16-18 x 0.625"

$4.49

$

In Stock, Qty 20+

0

2

MTD 732-04035

Compression Spring

$10.99

$

In Stock, only 4 left!

0

3

MTD 738-1020

Shoulder Screw 0.625 x 0.5

$7.49

$

Usually ships in 3-6 days

0

4

MTD 736-0407

Bell Washer

$3.99

$

In Stock, Qty 12

0

5

MTD 712-0459

Flange Lock Nut

$4.99

$

In Stock, Qty 20+

0

6

MTD 736-0222

Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

7

MTD 725-1426

Solenoid: 12 V., 100 amp.
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

8

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

9

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

MTD 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

11

MTD 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-3087

Wing Nut

$3.99

$

In Stock, Qty 20+

0

13

MTD 783-1033A

Hitch Plate

Variations

MTD 783-1033A-0637

No Longer Available HITCH PLAT - POWDER BLACK (0637)

$

$

Not available

MTD 783-1033A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-1033A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-1033A-0691

No Longer Available HITCH PLAT - BLACK JACK (0691)

$

$

Not available

MTD 783-1033A-0716

No Longer Available HITCH PLAT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

14

MTD 725-1706

Battery: 12 V., 270 CCA
(Superseded to 925-1707D)

$

$

Not available

15

MTD 738-1132

Shoulder Screw

$5.49

$

In Stock, only 2 left!

0

16

MTD 710-0703

Carriage Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

18

MTD 783-0349

Battery Tray

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 683-0304C

Lower Frame Assembly

Variations

MTD 683-0304C-0606

No Longer Available FRAME ASM- - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 683-0304C-0637

Lower Frame Assembly - POWDER BLACK (0637)

$

$

Not available

MTD 683-0304C-0650

No Longer Available FRAME ASM- - RED METALLIC (0650)

$

$

Not available

MTD 683-0304C-0665

No Longer Available FRAME ASM- - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0304C-0691

No Longer Available FRAME ASM- - BLACK JACK (0691)

$

$

Not available

MTD 683-0304C-0716

No Longer Available FRAME ASM- - CUB YELLOW-99 (0716)

$

$

Not available

$

$

20

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

MTD 710-3025

Hex Screw 5/16-18 x 0.625

$3.99

$

In Stock, Qty 8

0

22

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

23

MTD 756-0978A

Engine Pulley: Electric PTO
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 13

0

24

MTD 683-0618

Clutch Bracket Assembly:
(Superseded to 683-0618-0637)

Variations

MTD 683-0618-0637

Clutch Bracket Assembly, 54 - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 710-1652

Hex Head Washer Screw

$4.49

$

In Stock, Qty 20+

0

27

MTD 783-0891B

Deck Stop

Variations

MTD 783-0891B-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0665

Deck Up-Stop Bracket - YARDMAN GREEN (0665)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0498

BRACKET-DECK UP STOP - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0691

BRACKET-DECK STOP - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

MTD 783-0891B-0716

BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$30.99

$

Usually ships in 3-6 days

0

28

MTD 748-0415B

Spacer

$7.49

$

In Stock, Qty 10

0

29

MTD 783-0653E

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653E-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

30

MTD 710-0859

Hex Screw 3/8-16 x 2.5"

$6.99

$

In Stock, Qty 16

0

31

MTD 717-1774C

Elec. PTO Clutch
(Superseded to 917-05001)

$630.99

$

In Stock, only 2 left!

0

31

MTD 736-0277

Washer, Flat 1.031 x 1.62 x .095

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0322

Flat Washer

$9.49

$

In Stock, Qty 8

0

33

MTD 736-0171

Lock Washer

$4.49

$

In Stock, Qty 5

0

34

MTD 710-3157

Hex Bolt 7/16-20 x 3.25"
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

MTD 629-0469B

Harness Assembly: Headlight
(Superseded to 929-0469B)

Note: Not shown

$55.99

$

Usually ships in 3-6 days

0

MTD 629-04048

Harness Assembly: PTO
(Superseded to 929-04048)

Note: Not shown

$

$

Not available
