14AZ814K401 - Yard-Man Garden Tractor (2003) Drive Parts Diagram

Garden Tractor

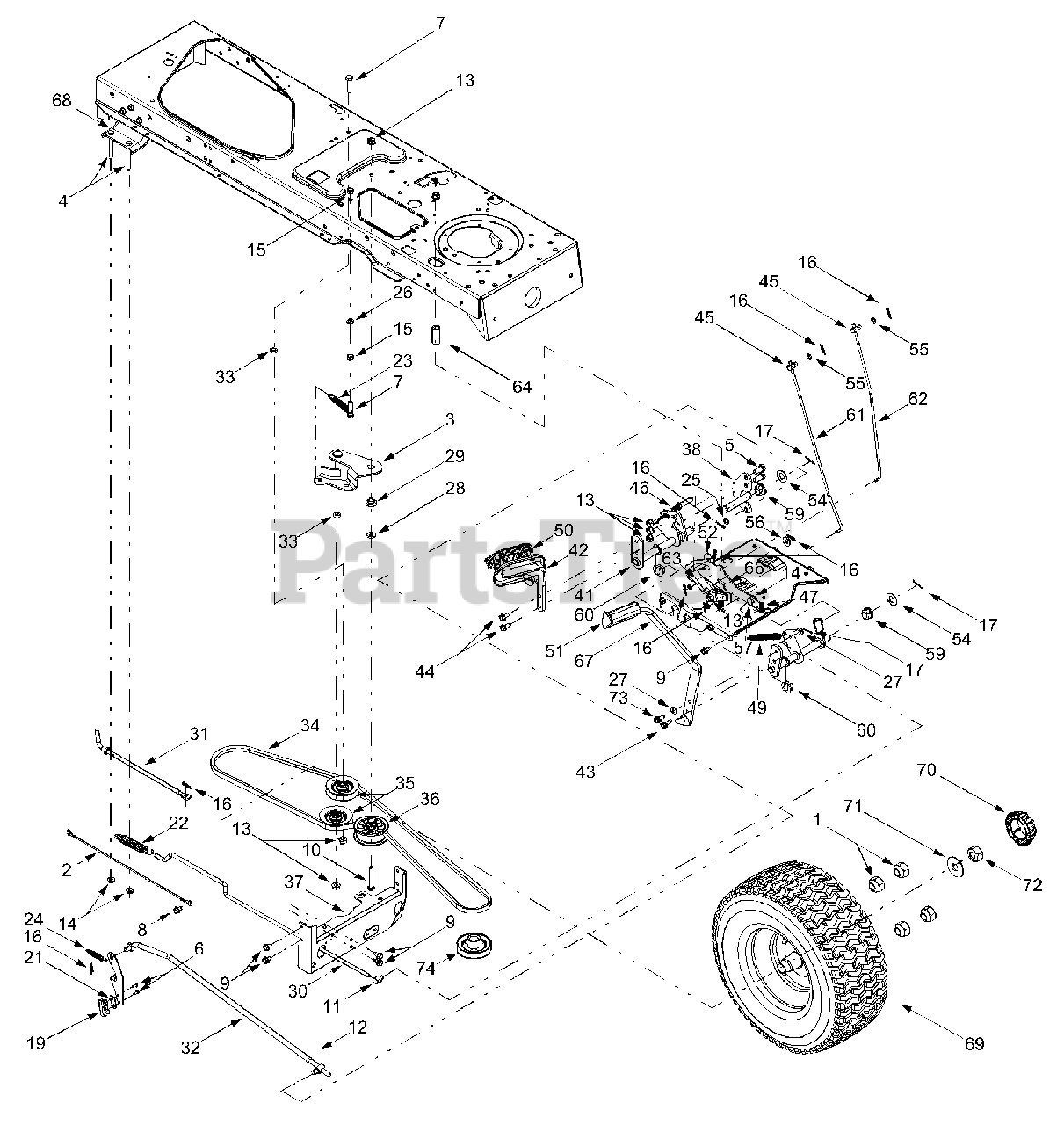

Drive Parts Diagram

  • Title

1

MTD 712-3050

Lug Nut, 3/4-16

$9.99

$

In Stock, only 1 left!

0

2

MTD 629-0949A

Reverse/Ground Wire Harness Adapt
(Superseded to 629-0949B)

$43.99

$

Usually ships in 3-6 days

0

3

MTD 683-0251

Double Idler Bracket Assembly

$

$

Not available

4

MTD 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 12

0

6

MTD 710-0227

Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0344

Hex Cap Screw, 3/8-16 x 1.5

$5.99

$

In Stock, Qty 11

0

8

MTD 710-0599

Self-tapping Screw, 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 19

0

11

MTD 711-0677

Ferrule, 5/16-18
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

12

MTD 711-0832

Ferrule, 3/8-24
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

13

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

16

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

17

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

18

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

19

MTD 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

20

MTD 726-0154

Push-mount Cable Tie
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

21

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

22

MTD 732-0716

Extension Spring, .59 x 4.0
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

23

MTD 732-0429A

Extension Spring, .5 x 3.97
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

24

MTD 732-3118

Extension Spring, 3/8 x 1.44

$10.99

$

In Stock, only 1 left!

0

25

MTD 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 6

0

26

MTD 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

27

MTD 736-3008

Flat Washer, .344 x .750 x .120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

28

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

29

MTD 738-0372B

Shoulder Spacer, .38

$9.49

$

In Stock, Qty 18

0

30

MTD 747-1119

Hydrostatic Control Rod

$

$

Not available

31

MTD 747-1121

Hydrostatic Bypass Rod
(Superseded to 747-1121A)

$

$

Not available

32

MTD 747-1122

Hydrostatic Brake Rod

$

$

Not available

33

MTD 750-0535

Spacer, .376 x .625 x .22
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

34

MTD 754-0349

Drive Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

35

MTD 756-0116

V-idler Pulley, 3.06
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

36

MTD 756-0981A

Flat Idler Pulley, 2.75
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

37

MTD 783-0667A

Transmission Torque Bracket
(Superseded to 783-0667A-0637)

Variations

MTD 783-0667A-0637

BRACKET-TRANS TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 783-0745

Speed Control Bracket
(Superseded to 783-0745-0637)

Variations

MTD 783-0745-0637

BRACKET-CONTROL SP - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 783-0782

Switch Actuator Bracket
(Superseded to 783-0782-0637)

Variations

MTD 783-0782-0637

Actuator Bracket, S - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 647-0031B

Brake Control Assembly
(Superseded to 753-05606)

Variations

MTD 647-0031B-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

$

$

41

MTD 647-0049

Drive Control Assembly
(Superseded to 647-0049A-0637)

$

$

Not available

42

MTD 683-0267C

Hydro Pedal Assembly

$

$

Not available

43

MTD 710-0650

Self-tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

44

MTD 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

45

MTD 711-0736

Ferrule, 1/4-20

$13.99

$

In Stock, only 1 left!

0

46

MTD 711-1363

Pin, 3/8-16 x 2.43

$4.49

$

Usually ships in 3-6 days

0

47

MTD 732-0335

Compression Spring, .40 OD x 1.17

$

$

Not available

48

MTD 732-0955

Extension Spring, .50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

49

MTD 732-0963

Extension Spring, .50 OD x 6.37

$9.99

$

In Stock, only 4 left!

0

50

MTD 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

51

MTD 735-3049

Brake Pedal Pad
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

52

MTD 736-0133

Flat Washer, .411 x 1.25 x 1.0

$5.49

$

In Stock, Qty 7

0

53

MTD 736-0142

Flat Washer, .281 x .50 x .063

$4.99

$

In Stock, Qty 20+

0

54

MTD 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

55

MTD 736-0204

Flat Washer, .344 x .062 x .03

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-3004

Flat Washer, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

57

MTD 738-0155

Shoulder Screw, .437 x 1.62
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

58

MTD 738-0507B

Shoulder Screw, .5 x .434

$4.49

$

In Stock, Qty 20+

0

59

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

60

MTD 741-3065B

Split Hex Flange Bearing

$8.49

$

In Stock, Qty 20+

0

61

MTD 747-1137

Cruise Control Rod

$

$

Not available

62

MTD 747-1138

Brake Lock Control Rod

$

$

Not available

63

MTD 748-0413

Cruise Latch

$32.99

$

Usually ships in 3-6 days

0

64

MTD 748-0415B

Spacer, 5/16 x 1.54

$7.49

$

In Stock, Qty 10

0

65

MTD 783-0653F

Stearing Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653F-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

66

MTD 783-0663C

Drive Lockout Bracket
(Superseded to 783-0663E)

$17.99

$

Usually ships in 3-6 days

0

67

MTD 783-0773

Brake Pedal

Variations

MTD 783-0773-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0773-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

MTD 783-0773-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

MTD 783-0773-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0773-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

MTD 783-0773-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

$

$

68

MTD 783-0693

Transmission Axle Bracket

Variations

MTD 783-0693-4008

BRACKET-AXLE - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-0693-0637

BRACKET-AXLE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

69

MTD 634-0132

Wheel Assy. Complete, 23 x 9.5 x 12

Variations

MTD 634-0132-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

MTD 634-0132-0941

No Longer Available WHEEL ASM - Carlisle Yellow (0941)

$

$

Not available

$

$

69

MTD 634-0194

Rim Only
(Superseded to 634-04238)

Note: Not shown

Variations

MTD 634-0194-0662

RIM ASM:12.0 X 7.0 - OYSTER GRAY (0662)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-0194-0674

RIM ASM:12.0 X 7.0 - YARDMAN YELLOW (0674)

$197.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

69

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

69

MTD 734-1728

Tire Only, Square Shoulder

Note: Not shown

Variations

MTD 734-1728-0901

TIRE-SQUARE TREAD - Carlisle (0901)

$125.99

$

Usually ships in 3-6 days

0

MTD 734-1728-0904

TIRE-SQUARE TREAD - Cheng (0904)

$125.99

$

Usually ships in 3-6 days

0

$125.99

$

Usually ships in 3-6 days

0

70

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

71

MTD 736-0316

Flat Washer, .780 x 1.59 x .062

$4.49

$

In Stock, Qty 20+

0

72

MTD 712-3026

Jam Nut, 3/4-16

$4.99

$

In Stock, Qty 7

0

73

MTD 710-1611B

Self-tapping Screw, 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

74

MTD 756-0978A

Engine Pulley
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 13

0

MTD 618-0379

Hydrostatic Transmission Assembly
(Superseded to 753-05398)

Note: Not shown

$

$

Not available
