14AZ809K766 - Troy-Bilt Big Red Garden Tractor (2004) Deck Assembly Parts Diagram

Big Red Garden Tractor

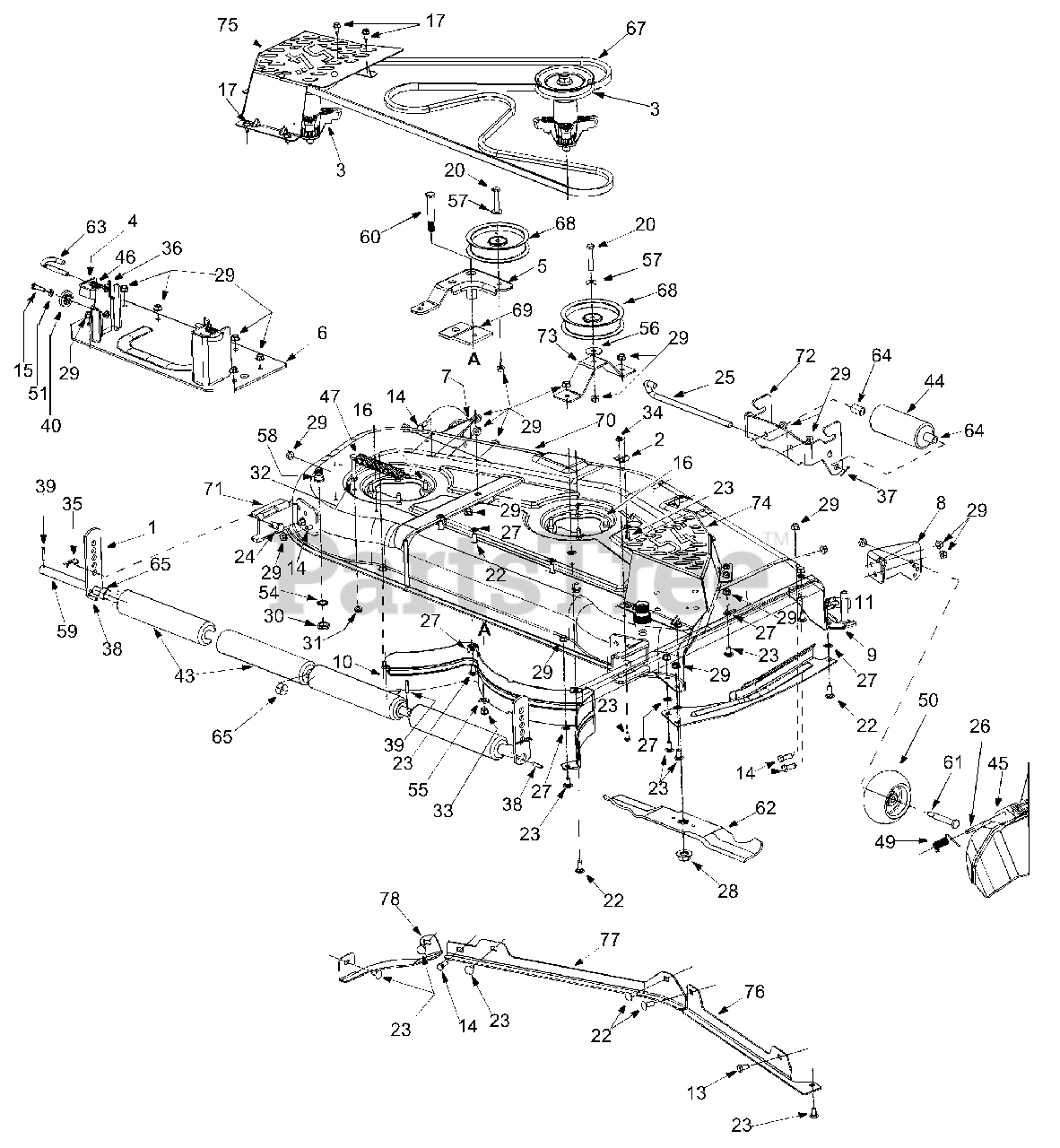

Deck Assembly Parts Diagram

  • Title

1

Troy-Bilt 12650

Bracket, Adjustment, Height

Variations

Troy-Bilt 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

Troy-Bilt 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 16606

Bracket, Hook, Retainer
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

3

Troy-Bilt 618-0671

Spindle Assembly, Pulley, 5.39 Dia x .5625
(Superseded to 918-04608A)

$153.99

$

In Stock, Qty 16

0

4

Troy-Bilt 683-0254

Bracket Assembly, Deck, Hanger LH
(Superseded to 683-0254B)

Variations

Troy-Bilt 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 683-0459

Idlr Assembly, 54"

Variations

Troy-Bilt 683-0459-0637

Idler Assembly, 54" GT - POWDER BLACK (0637)

$74.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0459-4008

Idler Assembly, 54" GT - WINE RED (4008)

$74.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 683-0608

Bracket Assembly, Lift, 54"
(Superseded to 683-0608B)

Variations

Troy-Bilt 683-0608-0637

BRACKET ASM-LIFT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 683-0608-0650

BRACKET ASM-LIFT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 683-0608-0665

LIFT BRACKET ASSEMBLY (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$91.99

$

Usually ships in 3-6 days

0

7

MTD 683-0609

Bracket Assembly, LH-Front

Variations

MTD 683-0609-0637

Bracket Assembly, LH-Front - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 683-0609-0650

BRACKET ASSEMBLY (LH)(RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 683-0609-0665

BRACKET ASSEMBLY (LH)(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

MTD 683-0610

Bracket Assembly, RH-Front

Variations

MTD 683-0610-0637

Bracket Assembly, RH-Front - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 683-0610-0650

BRACKET ASSEMBLY (RH)(RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 683-0610-0665

BRACKET ASSEMBLY (RH)(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$

9

Troy-Bilt 683-0617

Stop Assembly, Chute
(Superseded to 683-0617A-0637)

Variations

Troy-Bilt 683-0617-0637

Chute Deflector Stop, Black - POWDER BLACK (0637)

$64.99

$

In Stock, only 3 left!

0

Troy-Bilt 683-0617-0638

Chute Deflector Stop, Black - MTD/TROY-BILT RED (0638)

$64.99

$

In Stock, only 3 left!

0

Troy-Bilt 683-0617-0650

Chute Deflector Stop, Black - RED METALLIC (0650)

$64.99

$

In Stock, only 3 left!

0

Troy-Bilt 683-0617-0665

Chute Deflector Stop, Black - YARDMAN GREEN (0665)

$64.99

$

In Stock, only 3 left!

0

Troy-Bilt 683-0617-0716

Chute Deflector Stop, Black - CUB YELLOW-99 (0716)

$64.99

$

In Stock, only 3 left!

0

$64.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 703-2093

Baffle, RR, Inner
(Superseded to 703-2093C)

Variations

Troy-Bilt 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, only 2 left!

0

Troy-Bilt 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$96.99

$

In Stock, only 2 left!

0

$89.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-0216

Hex Screw 3/8-16 x 0.75

$4.49

$

In Stock, Qty 14

0

14

Troy-Bilt 710-0514

Hex Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

16

Troy-Bilt 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-3011

Hex Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 19

0

21

Troy-Bilt 710-3073

Hex Screw, 5/16-18 x 2.25
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 710-3178

Short Neck Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 711-0332

Pin, Clevis, .50 Dia x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

25

Troy-Bilt 711-1737

Pin, Roller, .5" Dia x 10.06

$25.99

$

In Stock, Qty 6

0

26

Troy-Bilt 711-1762

Pin, Hinge, Dia .375 x 14.06

$18.99

$

In Stock, Qty 6

0

27

Troy-Bilt 712-0229

Push Nut Retainer

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 712-0130

Nut, Lock, 3/8-16

$3.99

$

In Stock, Qty 11

0

30

Troy-Bilt 712-0641

Hex Nut M16

$6.49

$

In Stock, Qty 7

0

31

Troy-Bilt 712-0429

Nut, Flange Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 712-3010

Nut, Hex, 5/16-18, Gr5

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 714-0145

Pin, Click, .092 x 1.64

$4.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

38

Troy-Bilt 715-0108

Pin, Spring 1/4 Dia x 1.00

$4.99

$

In Stock, Qty 15

0

39

Troy-Bilt 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 717-1553B

Adjustment, Deck, Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 9

0

41

Troy-Bilt 721-04041

Water Nozzle Adaptor
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 731-0335

Roller, Deck

$72.99

$

In Stock, Qty 11

0

44

Troy-Bilt 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 731-3131A

Deflector, Chute
(Superseded to 931-3131A)

$108.99

$

In Stock, only 4 left!

0

46

Troy-Bilt 732-0306

Spring, Compression, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

47

Troy-Bilt 732-0459

Spring, Extension, .94 Dia x 6.74
(Superseded to 732-0459C)

$18.99

$

In Stock, only 3 left!

0

48

Troy-Bilt 732-0934

Spring, Extension, 1.15 Dia x 5.99

$11.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 732-3070

Torsion Spring .44 I.d. x 2.10
(Superseded to 732-3070A)

$11.99

$

In Stock, only 4 left!

0

50

Troy-Bilt 734-04039

Deck Wheel, 5" Dia.
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 736-0760

Lock Washer

$4.49

$

In Stock, Qty 7

0

55

Troy-Bilt 736-0921

Lock Washer

$4.49

$

In Stock, Qty 6

0

56

Troy-Bilt 736-3039

Flat Washer .406 ID X 1.5 x 11ga

$5.49

$

In Stock, Qty 7

0

57

Troy-Bilt 736-3072

Washer, Flat .38 ID x.93 OD x.110

$4.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 737-04003B

Water Nozzle: Deck Wash-Out System
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

59

Troy-Bilt 738-0295

Shoulder Screw, .750 x .47.12

$124.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 738-1229A

Shoulder Screw

$12.99

$

In Stock, Qty 5

0

61

Troy-Bilt 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 742-0677

Blade, 18.50"
(Superseded to 942-0677B)

$30.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 747-1116

Deck Release Handle Rod, .375 Dia

$12.99

$

In Stock, Qty 6

0

64

Troy-Bilt 750-0151

Spacer .550 ID x .755 OD x 1.1
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 750-0212

Spacer, .82 ID x 1.00 OD x .53

$10.99

$

In Stock, Qty 18

0

67

Troy-Bilt 754-0642

Belt, V-Type, B Section
(Superseded to 954-0642)

$82.99

$

In Stock, Qty 7

0

68

Troy-Bilt 756-3105

Pulley, Idler, 5.0 Dia.

$73.99

$

In Stock, only 3 left!

0

69

Troy-Bilt 783-04013A

Bracket, Stabilizing

Variations

Troy-Bilt 783-04013A-0637

Stabilizer Bracket - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04013A-4008

Stabilizer Bracket - WINE RED (4008)

$22.99

$

In Stock, only 1 left!

0

$17.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 683-04127

Deck Assembly SD: 54" w/ Water Nozzle
(Superseded to 983-04127)

Variations

Troy-Bilt 683-04127-0637

SHELL-54" DECK - POWDER BLACK (0637)

$1098.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-04127-0650

DECK-54" - RED METALLIC (0650)

$1098.99

$

Usually ships in 3-6 days

0

$1027.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04232

Deck: SD w/Water Nozzle Ftg.
(Superseded to 983-04127)

Variations

Troy-Bilt 783-04232-0637

SHELL-54" DECK - POWDER BLACK (0637)

$1098.99

$

Usually ships in 3-6 days

0

$1027.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 783-1453

Bracket, Mounting, 54" Roller

Variations

Troy-Bilt 783-1453-0637

BRACKET-MOUNT ROLLER - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-1453-0638

BRACKET-MOUNT ROLLER - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-1453-0650

BRACKET-MOUNT ROLLER - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-1453-0665

ROLLER MOUNT BRACKET - YARDMAN GREEN (0665)

$

$

Not available

$

$

72

Troy-Bilt 783-1454

Bracket, Roller, Front
(Superseded to 783-1454D)

Variations

Troy-Bilt 783-1454-0637

Front Roller Bracket - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1454-0650

Front Roller Bracket - RED METALLIC (0650)

$57.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1454-0665

BRACKET-FRONT ROLLER - YARDMAN GREEN (0665)

$57.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 783-1455

Bracket, Idler

Variations

Troy-Bilt 783-1455-0637

BRACKET-IDLER - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-1455-0716

BRACKET-IDLER - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-1455-0650

BRACKET-IDLER - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-1455-0665

IDLER BRACKET YARD-MAN - YARDMAN GREEN (0665)

$

$

Not available

$

$

74

Troy-Bilt 783-1470

Cover, Spindle RH

Variations

Troy-Bilt 783-1470-0637

Spindle Cover, RH - POWDER BLACK (0637)

$107.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1470-0665

COVER-SPINDLE RH - YARDMAN GREEN (0665)

$107.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1470-0650

COVER-SPINDLE RH - RED METALLIC (0650)

$

$

Not available

$87.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 783-1471

Cover, Spindle LH
(Superseded to 783-1471A)

Variations

Troy-Bilt 783-1471-0606

COVER-SPINDLE LH - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1471-0637

Spindle Cover, LH - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1471-0650

COVER-SPINDLE LH - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1471-0716

Spindle Cover, LH - CUB YELLOW-99 (0716)

$80.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1471-4021

Spindle Cover, LH - CUB YELLOW 2 (4021)

$80.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1471-4028

Spindle Cover, LH - SEARS YELLOW (4028)

$80.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1471-0665

COVER-SPINDLE LH - YARDMAN GREEN (0665)

$80.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1471-0691

COVER-SPINDLE LH - BLACK JACK (0691)

$80.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1471-4008

COVER-SPINDLE LH - WINE RED (4008)

$80.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 783-1482

RH Skirt
(Superseded to 783-1482-0637)

Variations

Troy-Bilt 783-1482-0637

SKIRT-54" DECK RH - POWDER BLACK (0637)

$

$

Not available

$

$

77

Troy-Bilt 783-1483

LH Skirt
(Superseded to 783-1483-0637)

Variations

Troy-Bilt 783-1483-0637

SKIRT-54" DECK LH - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 783-1484

LH Extension Skirt
(Superseded to 783-1484-0637)

Variations

Troy-Bilt 783-1484-0637

SKIRT-LH EXTENSION - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 703-3279

Chute Stop

Note: (not shown)

Variations

Troy-Bilt 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

In Stock, only 1 left!

0

$40.99

$

In Stock, only 1 left!

0
