14AY844P401 - Yard-Man Garden Tractor (1997) Hood and Throttle Control Box Assembly Parts Diagram

Garden Tractor

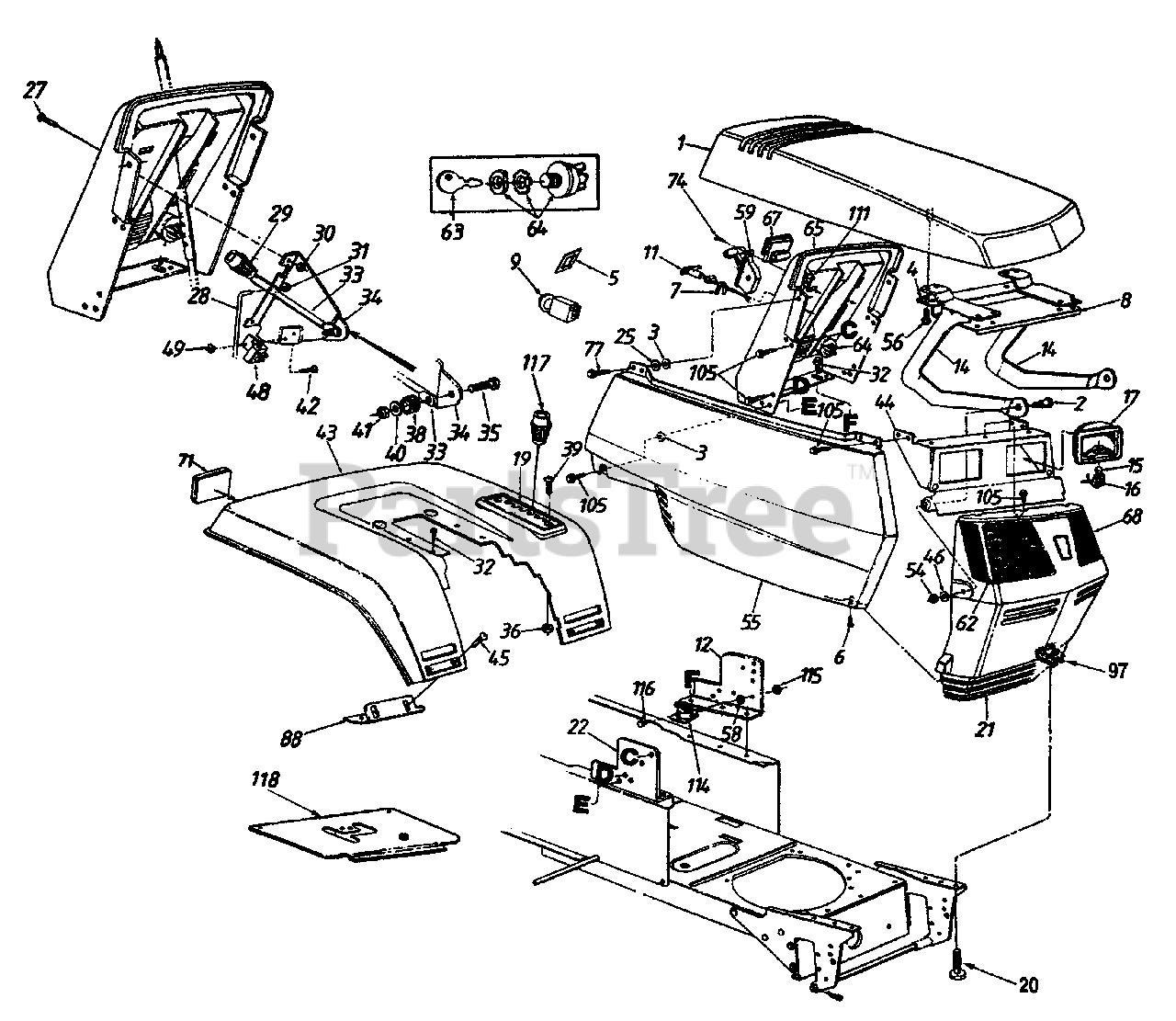

Hood and Throttle Control Box Assembly Parts Diagram

  • Title

1

MTD 731-1433

Hood Ass'y.
(Superseded to 931-1433)

$

$

Not available

2

MTD 738-0141

Shld. Bolt .437" Dia. x .35"
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

3

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 17762

Hood Reinforcement Spacer

Variations

MTD 17762-0637

No Longer Available SPACER-HOO - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 783-0462

Switch

Note: New Part

$

$

Not available

6

MTD 710-0351

Truss Mach. B-Tap Scr.#10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

MTD 17782

Retainer Clip

$

$

Not available

8

MTD 783-0121

Hood Reinforcement

Variations

MTD 783-0121-0637

No Longer Available REINFORCEM - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 725-1716

PTO Switch
(Superseded to 925-1716A)

Note: New Part

$73.99

$

In Stock, Qty 13

0

11

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

12

MTD 17294B

Dash Support Brkt.-L.H.
(Superseded to 17294B-0637)

Variations

MTD 17294B-0637

BRACKET-DASH SUP-L - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 783-0123

Hood Hinge

Variations

MTD 783-0123-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

16

MTD 725-1650

Twist Lock-Lamp Socket
(Superseded to 925-1650)

$

$

Not available

17

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

19

MTD 731-1774

7-Speed Selector Plate
(Superseded to 931-1774)

Note: New Part

$31.99

$

In Stock, Qty 8

0

20

UNKNOWN

$

$

Not available

21

MTD 731-1442A

Grille

$

$

Not available

22

MTD 17293B

Dash Support Bracket-R.H.
(Superseded to 17293B-0637)

Variations

MTD 17293B-0637

BRACKET-DASH SUP-R - POWDER BLACK (0637)

$

$

Not available

$

$

?23

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

?24

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

27

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

28

MTD 747-0708A

Deck Control Rod

$

$

Not available

29

MTD 720-0232

Knob-Blade Clutch
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

30

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

31

MTD 726-0106

Push Cap

$3.99

$

Usually ships in 3-6 days

0

32

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 747-0513A

PTO Lever

$

$

Not available

34

MTD 783-0460

Deck Clutch Cont. Brkt.

Variations

MTD 783-0460-0637

No Longer Available BRACKET. CONTROL CLUT - POWDER BLACK (0637)

$

$

Not available

$

$

35

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

36

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

?37

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

38

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

39

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0173

Fl-Wash. .281" I.D. x .73"

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

42

MTD 710-0224

Truss Mach. Scr. #10-24 x .5"Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

43

MTD 783-0351

Rear Fender

Variations

MTD 783-0351-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0351-0483

No Longer Available FENDER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0351-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0351-0638

FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0351-0648

No Longer Available FENDER - TECH GRAY (0648)

$

$

Not available

MTD 783-0351-0665

No Longer Available FENDER - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

MTD 17223

Light Bracket

Variations

MTD 17223-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

MTD 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

48

MTD 725-1657A

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

49

MTD 712-0121

Hex Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

54

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

55

MTD 731-1434

Side Cover-R.H.

$

$

Not available

MTD 731-1435

Side Cover-L.H. (Not Shown)

$

$

Not available

56

MTD 710-1005

Hx Wash. Hd. B-Tap Scr. 1/4 x .5" Lg.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

59

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

62

MTD 731-0948

Lens-R.H.
(Superseded to 931-0948)

$36.99

$

In Stock, only 1 left!

0

63

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

64

MTD 725-1717

Ignition Switch
(Superseded to 925-1717)

$52.99

$

In Stock, only 4 left!

0

65

MTD 731-0962

Dash Panel

$

$

Not available

MTD 731-1772

Dash Panel

$

$

Not available

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

68

MTD 731-0949

Lens-L.H.
(Superseded to 931-0949)

$

$

Not available

?69

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

71

MTD 730-3000

Reflector
(Superseded to 930-3000)

Note: (Optional)

$17.99

$

In Stock, only 2 left!

0

?73

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

MTD 710-0779A

Truss Mach. AB-Tap Scr.#10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

?75

MTD 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

77

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 17406

Fender Bracket-R.H.
(Superseded to 17406-0637)

Variations

MTD 17406-0637

Fender Bracket-R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17407

Fender Bracket-L.H.

Variations

MTD 17407-0637

No Longer Available BRKT-FENDE - POWDER BLACK (0637)

$

$

Not available

$

$

97

MTD 726-0211

U-Nut 5/16-18 Thd.

$4.49

$

In Stock, only 1 left!

0

105

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

111

MTD 712-0185

Speed -Nut 1/4-20 Thd.

$

$

Not available

114

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

115

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

116

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

117

MTD 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

118

MTD 783-0430

Shift Cover

Variations

MTD 783-0430-0648

COVER-SHIFT 2-SPD - TECH GRAY (0648)

$

$

Not available

MTD 783-0430-0665

No Longer Available COVER-SHIF - YARDMAN GREEN (0665)

$

$

Not available

$

$
