14AY834P401 - Yard-Man Garden Tractor (1998) Hood Style 4 Parts Diagram

Garden Tractor

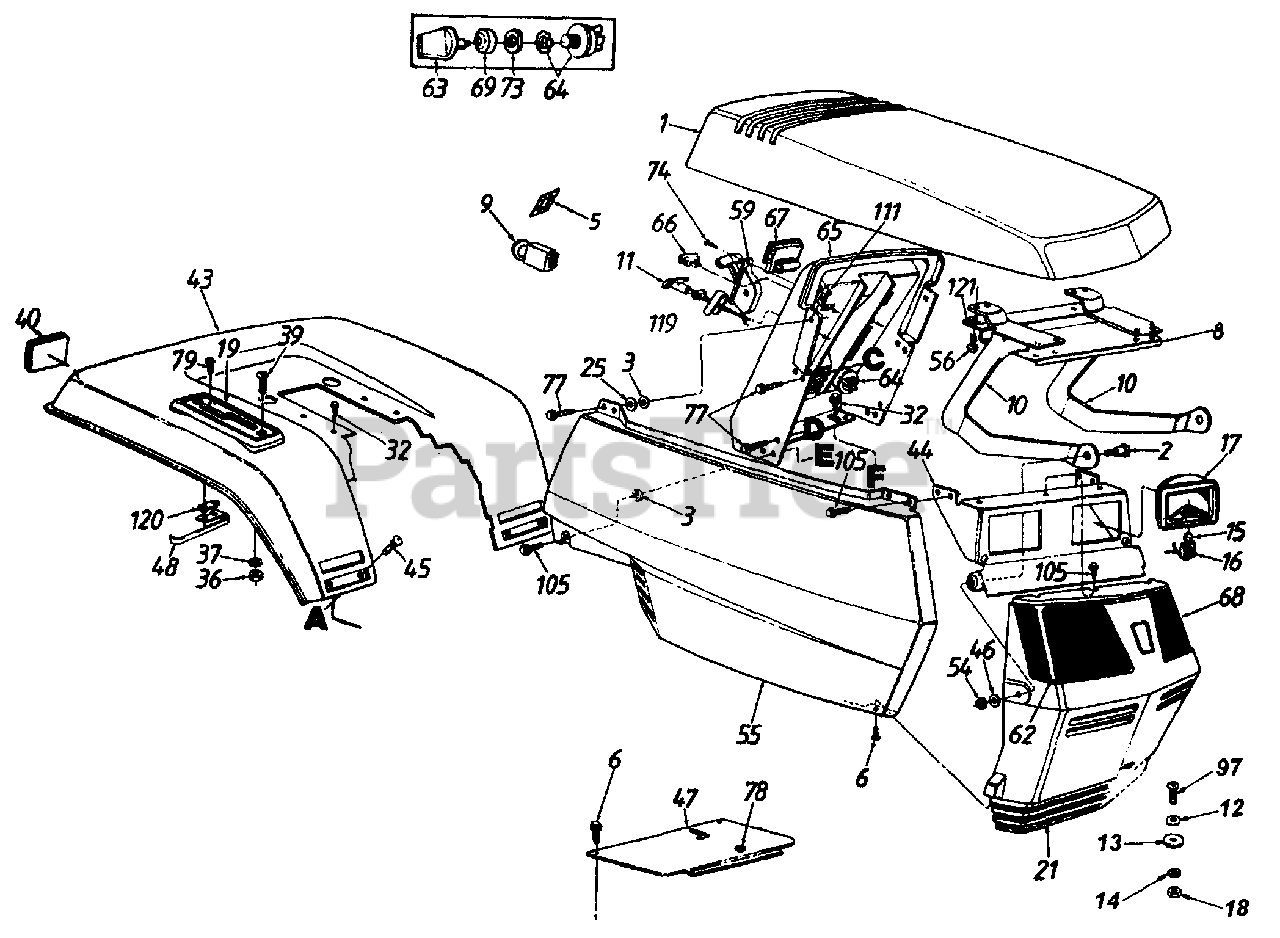

Hood Style 4 Parts Diagram

  • Title

1

MTD 731-1433

Hood Ass'y.
(Superseded to 931-1433)

$

$

Not available

2

MTD 738-0141

Shld. Bolt .437" Dia. x .35"
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

3

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

5

MTD 783-0462

Switch Retainer

Note: (Units with Electric PTO.)

$

$

Not available

6

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

8

MTD 783-0121

Hood Reinforcement

Variations

MTD 783-0121-0637

No Longer Available REINFORCEM - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 725-1716

PTO Switch
(Superseded to 925-1716A)

Note: (Units with Electric PTO.)

$73.99

$

In Stock, Qty 13

0

10

MTD 783-0123

Hood Hinge

Variations

MTD 783-0123-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

12

MTD 736-3078

Fl-Wash. .34" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

13

MTD 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

14

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

16

MTD 725-1650

Twist Lock-Lamp Socket
(Superseded to 925-1650)

$

$

Not available

17

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

18

MTD 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

19

MTD 731-1734

Speed Control Index Brkt.
(Superseded to 931-1734)

$

$

Not available

21

MTD 731-1442A

Grille

$

$

Not available

25

MTD 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

32

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

36

UNKNOWN

$

$

Not available

37

UNKNOWN

$

$

Not available

39

MTD 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

40

MTD 730-3000

Reflector
(Superseded to 930-3000)

$17.99

$

In Stock, only 2 left!

0

43

MTD 783-0466

Rear Fender

Variations

MTD 783-0466-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0466-0665

No Longer Available FENDER-SEN - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0466-0691

No Longer Available FENDER-SEN - BLACK JACK (0691)

$

$

Not available

$

$

44

MTD 17223

Light Bracket

Variations

MTD 17223-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

Note: (Purchase Locally)

$4.99

$

In Stock, Qty 20+

0

46

MTD 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

47

MTD 17393B

Transmission Panel
(Superseded to 17393B-0637)

Variations

MTD 17393B-0483

No Longer Available COVER-TRANSMI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17393B-0499

No Longer Available COVER-TRANSMI - CUB BEIGE (0499)

$

$

Not available

MTD 17393B-0637

Transmission Panel - POWDER BLACK (0637)

$

$

Not available

MTD 17393B-0638

No Longer Available COVER-TRANSMI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17393B-0648

No Longer Available COVER-TRANSMI - TECH GRAY (0648)

$

$

Not available

MTD 17393B-0665

No Longer Available COVER-TRANSMI - YARDMAN GREEN (0665)

$

$

Not available

$

$

48

MTD 725-1713

Reverse Safety Switch

$12.99

$

Usually ships in 3-6 days

0

54

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

55

MTD 731-1434

Side Panel Ass'y.

$

$

Not available

MTD 731-1435

Side Panel Ass'y.

$

$

Not available

56

MTD 710-1005

Hex Wash. Hd. B-Tap Scr.1/4 x .5"
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

59

UNKNOWN

$

$

Not available

62

MTD 731-0948

Lens-R.H.
(Superseded to 931-0948)

$36.99

$

In Stock, only 1 left!

0

63

MTD 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

64

MTD 725-1717

Ignition Switch
(Superseded to 925-1717)

$52.99

$

In Stock, only 4 left!

0

65

MTD 731-0962

Dash Panel

$

$

Not available

MTD 731-1772

Dash Panel

Note: (Units with Electric PTO.)

$

$

Not available

66

UNKNOWN

$

$

Not available

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

68

MTD 731-0949

Lens-L.H.
(Superseded to 931-0949)

$

$

Not available

69

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

73

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

77

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

78

MTD 731-0405

Snap Bushing

$

$

Not available

79

UNKNOWN

$

$

Not available

97

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

105

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

111

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

119

MTD 17782

Retainer Clip

$

$

Not available

120

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

121

MTD 17762

Hood Reinforcement Spacer

Variations

MTD 17762-0637

No Longer Available SPACER-HOO - POWDER BLACK (0637)

$

$

Not available

$

$
