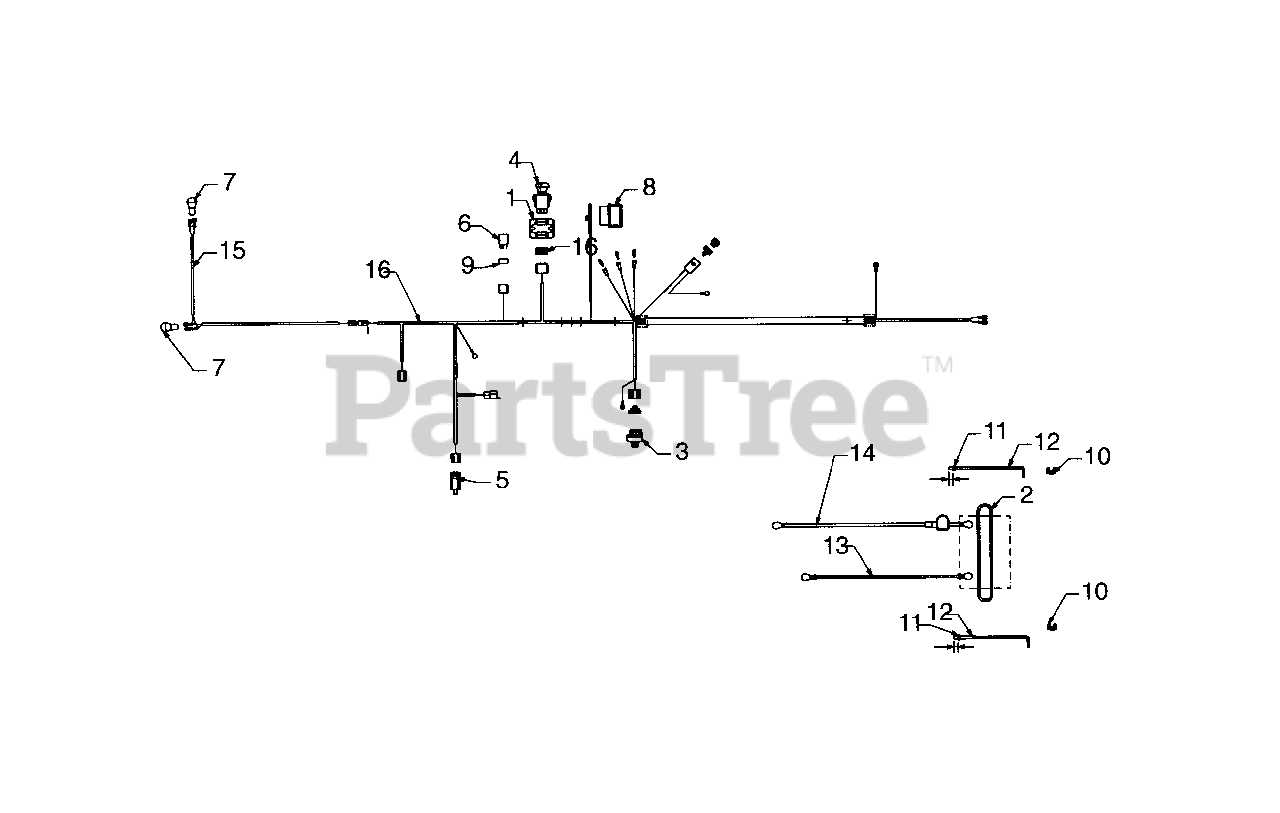

14AY834P401 - Yard-Man Garden Tractor (1997) Electrical/Switches Parts Diagram

Garden Tractor

Electrical/Switches Parts Diagram

  • Title

1

MTD 783-0462

PTO Bracket

$

$

Not available

2

MTD 731-1683

Battery Hold Down

$

$

Not available

3

MTD 725-1717

Ignition Switch
(Superseded to 925-1717)

$52.99

$

In Stock, only 1 left!

0

4

MTD 725-1716

Electric PTO Swtich
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 12

0

5

MTD 725-1657A

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

6

MTD 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 8

0

7

MTD 725-0963

Light Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

8

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

9

MTD 721-0342

Relay Gasket
(Superseded to 921-0342)

$7.99

$

In Stock, only 3 left!

0

10

MTD 712-3087

Wing Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-0291

Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

12

MTD 711-0222A

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

13

MTD 629-0704

Wire Asm. Black #8 17" Lg.

$

$

Not available

14

MTD 629-0700

Wire Asm. Red w/Boot #6 x 20" Lg.

$

$

Not available

15

MTD 629-0469

Wire Asm. Headlight
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

16

MTD 629-0467

Wire Harness Ass'y
(Superseded to 929-0467)

$

$

Not available
