14AY809P063 - Troy-Bilt Garden Tractor (2000) Muffler & Engine Accessories Kohler Twin-Cylinder Parts Diagram

Garden Tractor

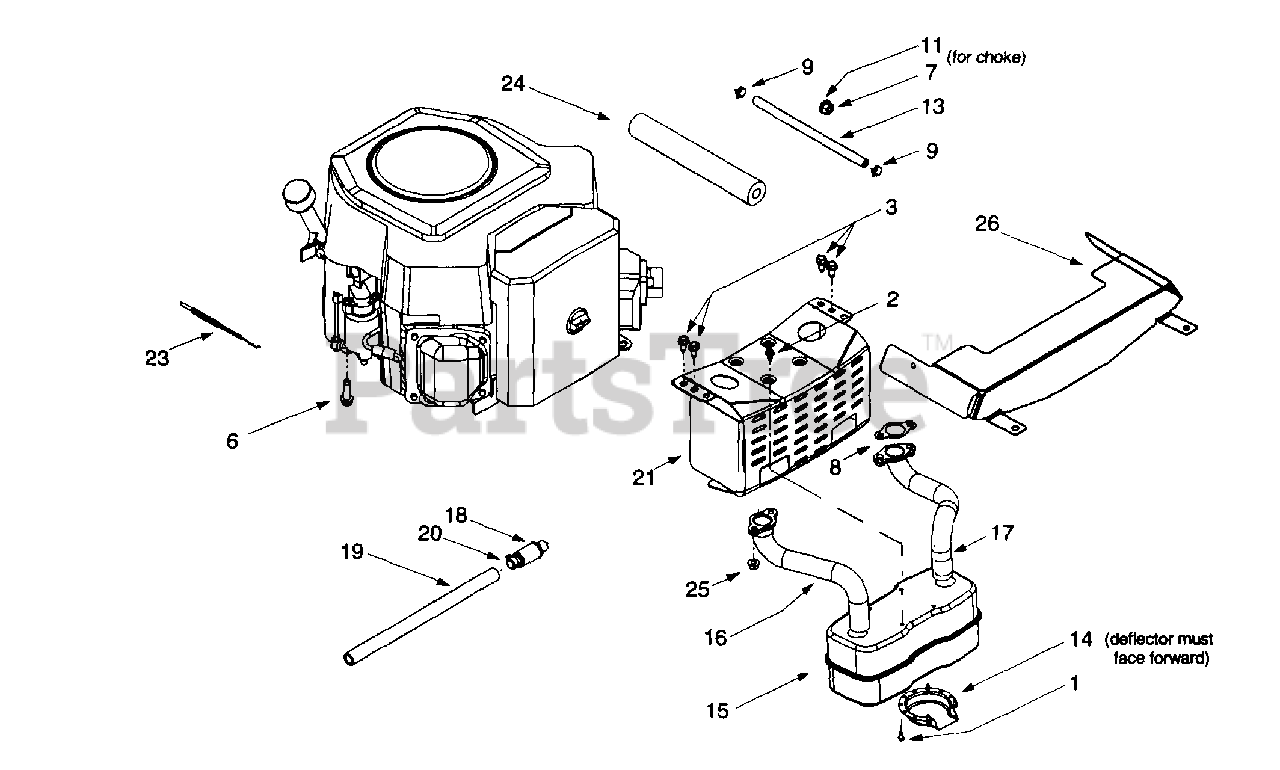

Muffler & Engine Accessories Kohler Twin-Cylinder Parts Diagram

  • Title
1

Troy-Bilt 710-0148

Self Tapping Screw, #8-32 x .375

$4.49

$

In Stock, Qty 16

0

2

Troy-Bilt 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1315

Self Tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 721-0377

Exhaust Gasket
(Superseded to KH-24-041-49-S)

Note: (Kohler Twin)

$

$

Not available

9

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-0300

Flat Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

Troy-Bilt 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 751-0805

Muffler
(Superseded to 951-0805A)

Note: (Kohler Twin)

$123.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 751-0645

RH Exhaust Pipe
(Superseded to 751-0645A)

Note: (Kohler Twin)

$93.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 751-0644A

LH Exhaust Pipe
(Superseded to 751-0644B)

Note: (Kohler Twin)

$146.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 751-3141-12

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

20

Troy-Bilt 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

21

Troy-Bilt 783-0615

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

Troy-Bilt 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 746-1086

Throttle Cable (
(Superseded to 946-1086)

Note: Intek Twin & Kohler Twin)

$33.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 722-0263

Foam
(Superseded to 723-3066-24)

Note: (Fits over fuel line)

$16.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 712-3086

Flange Nut, M8 x 1.25-6

$4.49

$

In Stock, only 2 left!

0

26

MTD 783-0881

Heat Shield

Note: (Kohler Twin); (Mounts to Grille Front)

$

$

Not available
