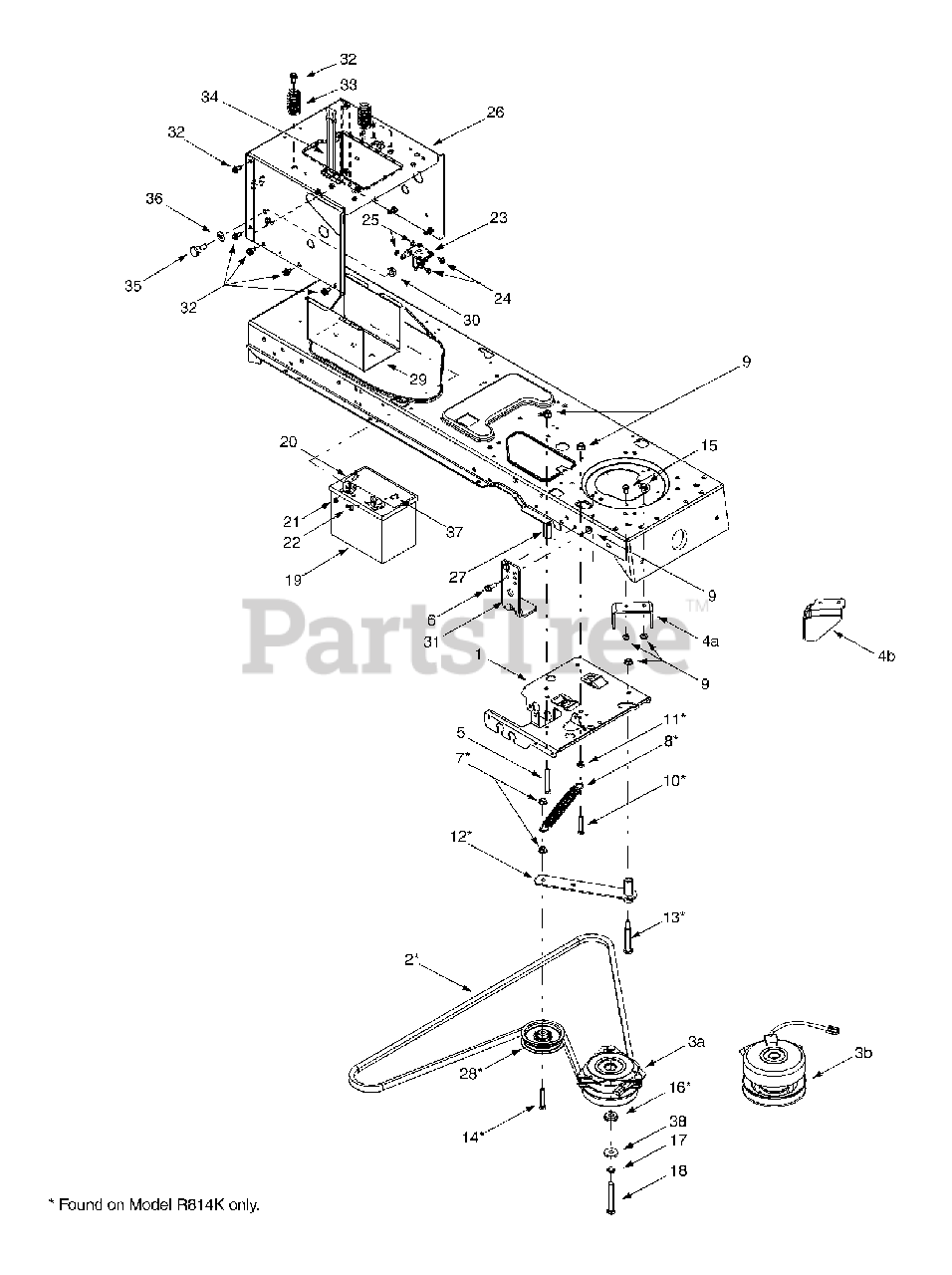

14AW814H401 - Yard-Man Garden Tractor (2002) PTO Electric Parts Diagram

Garden Tractor

PTO Electric Parts Diagram

  • Title

1

MTD 783-0653E

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653E-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

2

MTD 754-0476

PTO Belt
(Superseded to 954-0476)

Note: Found on Model RB14K only.

$72.99

$

In Stock, Qty 6

0

3A

MTD 717-1709

Electric PTO Clutch (Model W814H)
(Superseded to 917-1709)

$609.99

$

Usually ships in 3-6 days

0

3B

MTD 717-1774C

Electric PTO Clutch (Model R814K)
(Superseded to 917-05001)

$630.99

$

In Stock, only 2 left!

0

3B

MTD 736-0277

Washer, Flat 1.031 x 1.62 x .095

$4.49

$

In Stock, Qty 20+

0

3B

MTD 925-3242

PTO Adapter For 717-1774 PTO Clutch

Note: Not Shown

$23.99

$

Usually ships in 3-6 days

0

4A

MTD 783-1003

PTO Clutch Anti-rotation Bracket (Model W814H)
(Superseded to 783-1003-0637)

Variations

MTD 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

4B

MTD 783-1487

PTO Clutch Anti-rotation Bracket (Model R814K)
(Superseded to 683-0618-0637)

Variations

MTD 783-1487-0637

Clutch Bracket Assembly, 54 - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

6

MTD 710-1238

Hex Head Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

Note: Found on Model RB14K only.

$4.99

$

In Stock, Qty 20+

0

8

MTD 732-0978

Extension Spring, .62 x 5.62

Note: Found on Model RB14K only.

$10.99

$

Usually ships in 3-6 days

0

9

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75

Note: Found on Model RB14K only.

$5.49

$

In Stock, Qty 20+

0

11

MTD 712-3010

Hex Nut, 5/16-18

Note: Found on Model RB14K only.

$4.49

$

In Stock, Qty 20+

0

12

MTD 683-0294

Idler Bracket Assembly

Variations

MTD 683-0294-0637

Idler Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 738-3056

Shoulder Screw, 1/2 x 2.5
(Superseded to 938-3056)

Note: Found on Model RB14K only.

$9.49

$

In Stock, Qty 20+

0

14

MTD 710-3144

Hex Cap Screw, 3/8-16 x 2.0

Note: Found on Model RB14K only.

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

16

MTD 738-0785

Shoulder Spacer, 1.38 x .445 x .36
(Superseded to 938-0785)

Note: Found on Model RB14K only.

$25.99

$

In Stock, Qty 9

0

17

MTD 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, Qty 5

0

18

MTD 710-3157

Hex Cap Screw, 7/16-20 x 3.25 (Grade 5)
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

19

MTD 725-1706

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

20

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

23

MTD 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

24

MTD 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0222

Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

26

MTD 783-1033A

Hitch Plate

Variations

MTD 783-1033A-0637

No Longer Available HITCH PLAT - POWDER BLACK (0637)

$

$

Not available

MTD 783-1033A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-1033A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-1033A-0691

No Longer Available HITCH PLAT - BLACK JACK (0691)

$

$

Not available

MTD 783-1033A-0716

No Longer Available HITCH PLAT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

MTD 748-0415B

Spacer, 3/8 x 1.54

$7.49

$

In Stock, Qty 10

0

28

MTD 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

Note: Found on Model RB14K only.

$30.99

$

In Stock, Qty 20+

0

29

MTD 783-0349

Battery Tray

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

31

MTD 783-0891B

Deck Stop

Variations

MTD 783-0891B-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0665

Deck Up-Stop Bracket - YARDMAN GREEN (0665)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0498

BRACKET-DECK UP STOP - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0691

BRACKET-DECK STOP - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

MTD 783-0891B-0716

BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$30.99

$

Usually ships in 3-6 days

0

32

MTD 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

33

MTD 732-3080

Compression Spring, 1.28 x 3.5
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 11

0

34

MTD 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

35

MTD 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

36

MTD 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 12

0

37

MTD 738-1132

Shoulder Screw, 1/4-20, .25 x .15

$5.49

$

In Stock, only 2 left!

0

38

MTD 736-0322

Flat Washer, .45 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0
