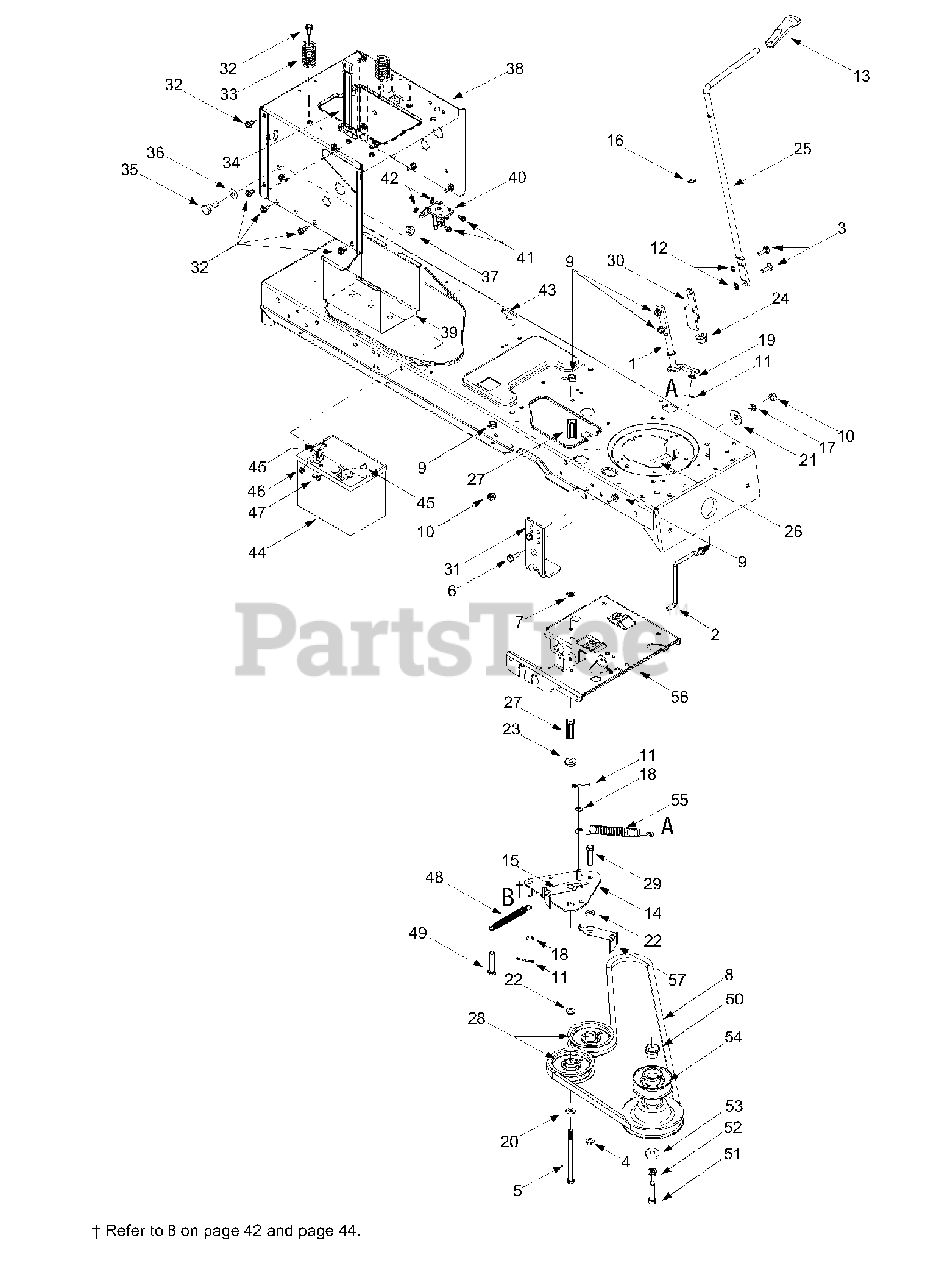

14AV818P205 - Ranch King Garden Tractor (2002) PTO Manual, Battery Parts Diagram

Garden Tractor

PTO Manual, Battery Parts Diagram

  • Title

1

MTD 647-0046A

PTO Engage Lever Assembly
(Superseded to 647-0064)

$

$

Not available

2

MTD 747-1243

Belt Keeper Rod

$

$

Not available

3

MTD 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 11

0

4

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

5

MTD 710-0831

Hex Cap Screw, 3/8-16 x 5.5

$

$

Not available

6

MTD 710-1238

Hex Head Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

8

MTD 754-0487

PTO Belt (Models w/ 46-inch deck)
(Superseded to 954-0487)

$62.99

$

In Stock, only 1 left!

0

MTD 754-0488

PTO Belt (Models w/ 50-inch deck)

$

$

Currently unavailable

9

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

MTD 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

12

MTD 726-0201

Speed Nut, .3125

$6.99

$

Usually ships in 3-6 days

0

13

MTD 731-2111A

PTO Knob
(Superseded to 731-2111B)

$

$

Not available

14

MTD 683-0302

PTO Engagement Plate Assembly

Variations

MTD 683-0302-0637

Engagement Plate Assembly - POWDER BLACK (0637)

$37.99

$

In Stock, only 1 left!

0

$37.99

$

In Stock, only 1 left!

0

15

MTD 732-0991A

Belt Guard

$14.99

$

Usually ships in 3-6 days

0

16

MTD 736-0108

Flat Washer, .510 x .750 x .033

$6.99

$

Usually ships in 3-6 days

0

17

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

19

MTD 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

20

MTD 736-0300

Flat Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

22

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 1 left!

0

23

MTD 738-0372A

Shoulder Spacer, .380
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

24

MTD 741-0708

Hex Split Flange Bearing, .5

$4.49

$

In Stock, only 3 left!

0

25

MTD 747-1112D

PTO Engagement Handle
(Superseded to 747-1112D-0637)

Variations

MTD 747-1112D-0637

PTO Engagement Handle - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

26

MTD 747-1286

Belt Keeper Rod
(Superseded to 747-1286A)

$

$

Not available

27

MTD 748-0415A

Spacer, 3/8 x 1.54
(Superseded to 748-0415B)

$7.49

$

In Stock, Qty 10

0

28

MTD 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

29

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

30

MTD 783-0744A

Engagement Stop

Variations

MTD 783-0744A-0637

Stop Bracket - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

MTD 783-0744A-4008

BRACKET-STOP - WINE RED (4008)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

31

MTD 783-0891B

Deck Stop

Variations

MTD 783-0891B-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0665

Deck Up-Stop Bracket - YARDMAN GREEN (0665)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0498

BRACKET-DECK UP STOP - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0691

BRACKET-DECK STOP - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-0891B-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

MTD 783-0891B-0716

BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$30.99

$

Usually ships in 3-6 days

0

32

MTD 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

33

MTD 732-3080

Compression Spring, 1.28 x 3.5
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 11

0

34

MTD 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

35

MTD 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

36

MTD 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 12

0

37

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

38

MTD 783-1031A

Hitch Plate

Variations

MTD 783-1031A-0691

HITCH PLATE-UPPER - BLACK JACK (0691)

$

$

Not available

MTD 783-1031A-0637

Hitch Plate - POWDER BLACK (0637)

$

$

Not available

MTD 783-1031A-0650

No Longer Available HITCH PLAT - RED METALLIC (0650)

$

$

Not available

MTD 783-1031A-0665

No Longer Available HITCH PLAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-1031A-0716

No Longer Available HITCH PLAT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

39

MTD 783-0349

Battery Tray

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

41

MTD 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0222

Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

43

MTD 683-0304

Lower Frame Assembly

Variations

MTD 683-0304-0637

No Longer Available LOWER FRAM - POWDER BLACK (0637)

$

$

Not available

MTD 683-0304-0650

No Longer Available LOWER FRAM - RED METALLIC (0650)

$

$

Not available

MTD 683-0304-0665

No Longer Available LOWER FRAM - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0304-0691

No Longer Available LOWER FRAM - BLACK JACK (0691)

$

$

Not available

MTD 683-0304-0716

No Longer Available LOWER FRAM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

44

MTD 725-1706

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

45

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

46

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

47

MTD 712-3044

Wing Nut, 1/4-20

$

$

Not available

48

MTD 732-1165

Extension Spring, .50 x 5.0
(Superseded to 732-04197)

$6.99

$

In Stock, Qty 12

0

49

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 11

0

50

MTD 750-0596

Spacer Cup
(Superseded to 750-0956)

$19.99

$

In Stock, only 2 left!

0

51

MTD 710-3029

Hex Head Cap Screw, 7/16-20 x 1.25

$4.49

$

In Stock, Qty 12

0

52

MTD 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

53

MTD 736-0322

Flat Washer, .450 x 1.25

$9.49

$

In Stock, Qty 8

0

54

MTD 756-0982B

Engine Pulley, 3.56 OD x 5.56

$72.99

$

In Stock, only 1 left!

0

55

MTD 732-0944

Extension Spring, .75 x 6.75

$10.99

$

In Stock, only 1 left!

0

56

MTD 783-0653D

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653D-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

57

MTD 732-1013

Belt Guard
(Superseded to 732-1013A)

$10.99

$

In Stock, only 1 left!

0
