14AV818P205 - Ranch King Garden Tractor (2001) Engine Accessories Parts Diagram

Garden Tractor

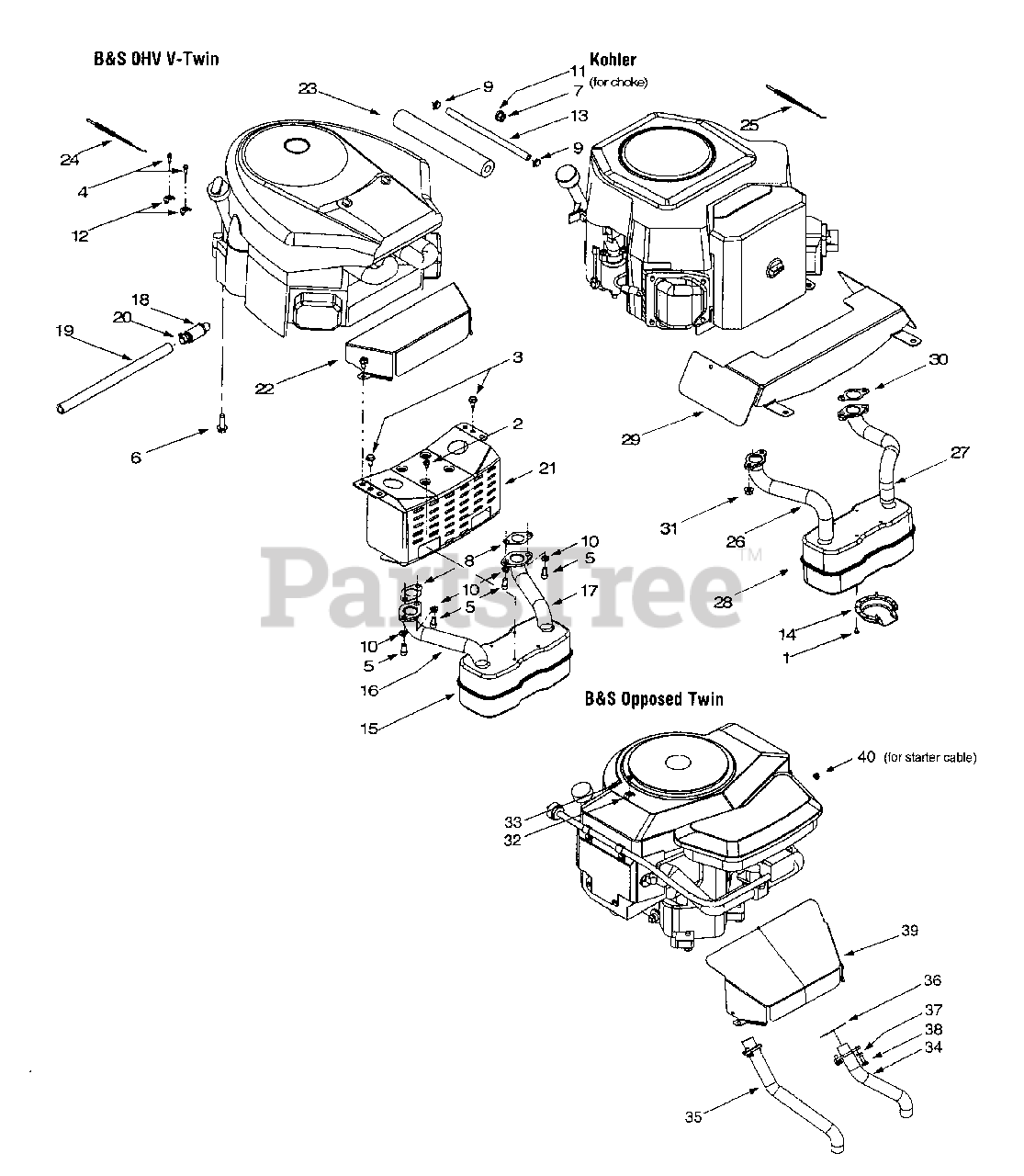

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0227

Self-tapping Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1237

Screw, #10-32 x .625

Note: (B&S OHV V-Twin)

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1314

Socket Cap Screw, 5/16-18 x .625
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

Self-tapping Screw, 3/8-16 x 1,25

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

Note: (B&S OHV V-Twin)

$6.99

$

In Stock, only 2 left!

0

9

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

12

MTD 751B221535

Casing Clamp

Note: (B&S OHV V-Twin)

$10.99

$

In Stock, Qty 10

0

13

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 4 left!

0

15

MTD 751-0616

Muffler, Twin Inlet
(Superseded to 951-0616B)

Note: (B&S OHV V-Twin & Opposed Twin)

$163.99

$

In Stock, Qty 16

0

16

MTD 751-0650

RH Exhaust Pipe
(Superseded to 751-0650B)

Note: (B&S OHV V-Twin)

$63.99

$

In Stock, only 1 left!

0

17

MTD 751-0651

LH Exhaust Pipe
(Superseded to 751-0651B)

Note: (B&S OHV V-Twin)

$60.99

$

In Stock, only 1 left!

0

18

MTD 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 2 left!

0

19

MTD 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

20

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

21

MTD 783-0615B

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

22

MTD 783-0625B

Engine Heat Shield
(Superseded to 783-0625C)

Note: (B&S OHV V-Twin)

$111.99

$

Usually ships in 3-6 days

0

23

MTD 722-0263

Foam
(Superseded to 723-3066-24)

Note: (Fits over fuel line)

$16.99

$

In Stock, only 3 left!

0

24

MTD 746-1086

Throttle Cable
(Superseded to 946-1086)

Note: (B&S OHV V -Twin & Opposed Twin)

$33.99

$

Usually ships in 3-6 days

0

25

MTD 746-1100

Throttle Cable
(Superseded to 946-1100)

Note: (Kohler)

$34.99

$

In Stock, Qty 9

0

26

MTD 751-0645

RH Exhaust Pipe
(Superseded to 751-0645A)

Note: (Kohler)

$93.99

$

Usually ships in 3-6 days

0

27

MTD 751-0644A

LH Exhaust Pipe
(Superseded to 751-0644B)

Note: (Kohler)

$146.99

$

Usually ships in 3-6 days

0

28

MTD 751-0805

Muffler, Twin Inlet
(Superseded to 951-0805A)

Note: (Kohler)

$123.99

$

Usually ships in 3-6 days

0

29

MTD 783-0881

Engine Heat Shield

Note: (Kohler)

$

$

Not available

30

MTD 721-0377

Exhaust Gasket
(Superseded to KH-24-041-49-S)

Note: (Kohler)

$

$

Not available

31

MTD 712-3086

Flange Nut, M8 x 1.25-6

Note: (Kohler)

$4.49

$

In Stock, only 2 left!

0

32

MTD 726-0272

Clamp, 9/16

Note: (B&S Opposed Twin)

$7.49

$

Usually ships in 3-6 days

0

33

MTD 712-0779A

Screw, #10-16 x .5

Note: (B&S Opposed Twin)

$

$

Currently unavailable

34

MTD 751-0623

LH Exhaust Pipe

Note: (B&S Opposed Twin)

$

$

Not available

35

MTD 751-0624

RH Exhaust Pipe

Note: (B&S Opposed Twin)

$

$

Not available

36

MTD 721-0346

Exhaust Gasket

Note: (B&S Opposed Twin)

$8.49

$

Usually ships in 3-6 days

0

37

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

Note: (B&S Opposed Twin)

$4.49

$

In Stock, Qty 11

0

38

MTD 710-0751

Hex Screw, 1/4-20 x .620

Note: (B&S Opposed Twin)

$3.99

$

In Stock, Qty 20+

0

39

MTD 783-0357A

Heat Shield
(Superseded to 783-0357B-0637)

Note: (B&S Opposed Twin)

Variations

MTD 783-0357A-0637

Heat Shield - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

40

MTD 712-0271

Hex Sems Nut, 1/4-20

Note: (B&S Opposed Twin)

$4.49

$

In Stock, Qty 20+

0
