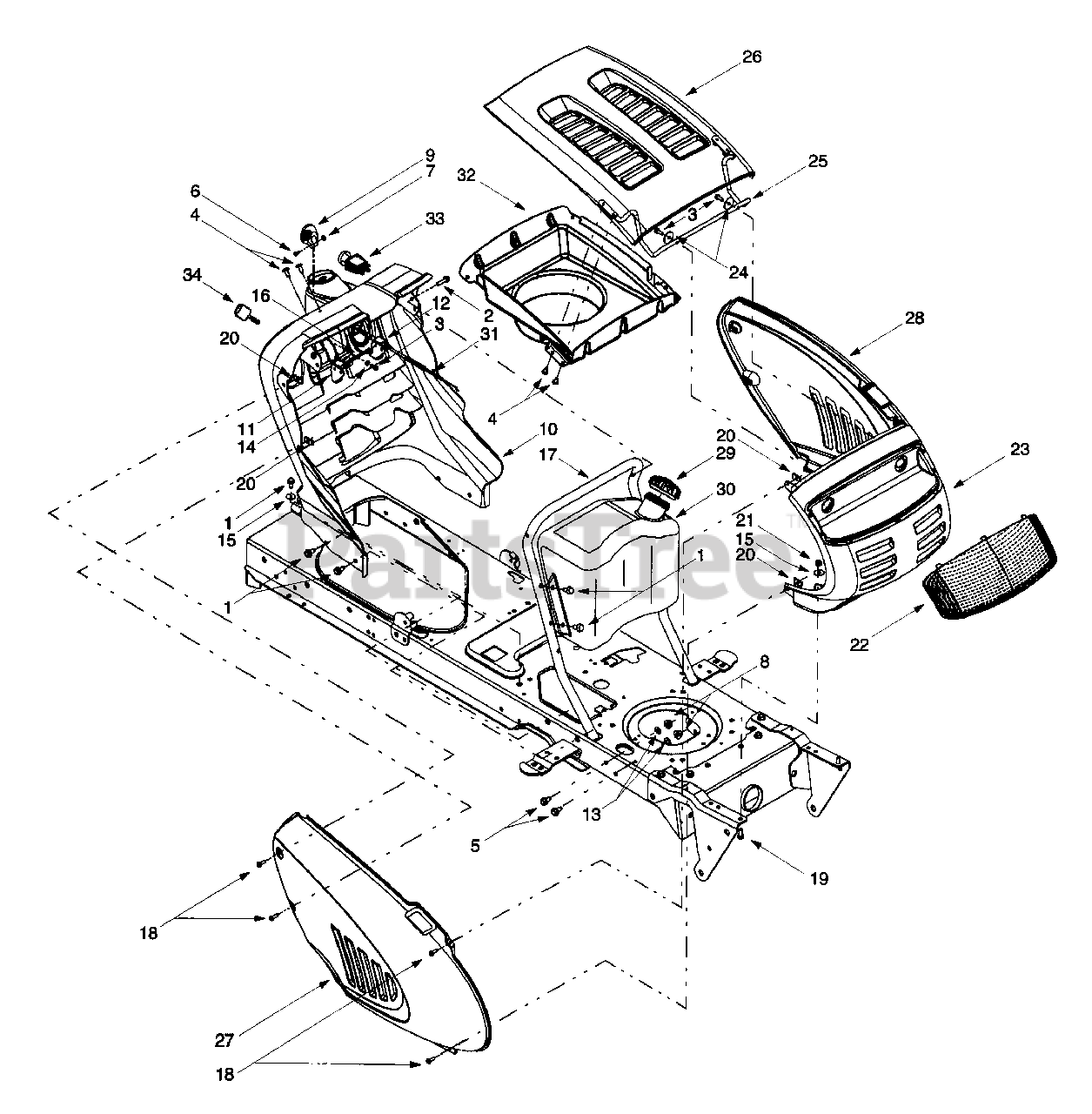

14AV809H063 - Troy-Bilt Garden Tractor (1999) Hood Style 9 Parts Diagram

Garden Tractor

Hood Style 9 Parts Diagram

  • Title

1

Troy-Bilt 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0788

Self Tapping Screw, 1/4-20 x 1.0

$7.49

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-0895

Self Tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1017

Torx Self Tapping Screw, 5/16-18 x .625

$8.49

$

In Stock, Qty 16

0

5

Troy-Bilt 710-1238

Screw, 5/16-18 x .875 (Grade 5)
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3217

Torx Screw, #8-32 x .375

$6.99

$

In Stock, Qty 6

0

7

Troy-Bilt 712-0142

Hex Nut, 8-32

$4.49

$

In Stock, Qty 9

0

8

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 731-1857

Throttle Control Lever

$14.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 731-2225

Dash Panel, 9-style
(Superseded to 631-04038)

$

$

Not available

11

Troy-Bilt 731-2226

Cruise Control Button

$16.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-2227

Parking Brake Button

$

$

Not available

13

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0142

Flat Washer, .281 x .5 x .063

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 747-1155

Brake/Cruise Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 749-1087

Dash Support Tube
(Superseded to 749-1087A-0637)

Variations

Troy-Bilt 749-1087-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

18

Troy-Bilt 710-0924

Pan Phillips Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 3 left!

0

21

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 731-2118

Lens, 9-style
(Superseded to 731-2118A)

$35.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 731-2119

Grille, 9-style
(Superseded to 731P2119A)

$

$

Not available

24

Troy-Bilt 736-0211

Flat Washer, .285 x 1.25 x .08

$6.99

$

In Stock, only 3 left!

0

25

MTD 747-1162

Hood Hinge Rod

$

$

Not available

26

Troy-Bilt 783-0783

Hood, 9-style
(Superseded to 783-0783A)

Variations

Troy-Bilt 783-0783-0638

HOOD:3 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-0783-0691

HOOD:3 STYLE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0783-0709

HOOD:3 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

27

Troy-Bilt 783-0784

RH Side Panel, 9-style
(Superseded to 783-0784A)

Variations

Troy-Bilt 783-0784-0638

PANEL-SIDE RH - MTD/TROY-BILT RED (0638)

$123.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0784-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0784-0709

PANEL-SIDE RH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

28

Troy-Bilt 783-0785

LH Side Panel, 9-style

Variations

Troy-Bilt 783-0785-0638

PANEL:SD:LH 9 STYLE - MTD/TROY-BILT RED (0638)

$142.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0785-0691

PANEL:SD:LH 9 STYLE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0785-0709

PANEL:SD:LH 9 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

29

Troy-Bilt 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 751-0659

Fuel Tank
(Superseded to 751-0659D)

$84.99

$

In Stock, Qty 5

0

31

Troy-Bilt 746-1085

Choke Knob/Cable Assembly
(Superseded to 946-1085A)

$30.99

$

In Stock, Qty 19

0

32

Troy-Bilt 731-2270

Hood Plenum, 9-style
(Superseded to 731-2270A)

$

$

Not available

33

Troy-Bilt 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 725-1744

Ignition Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

Troy-Bilt 725-1745

Ignition Key w/Plastic Cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0
