14AV809H063 - Troy-Bilt Garden Tractor (1999) Deck Assembly H Parts Diagram

Garden Tractor

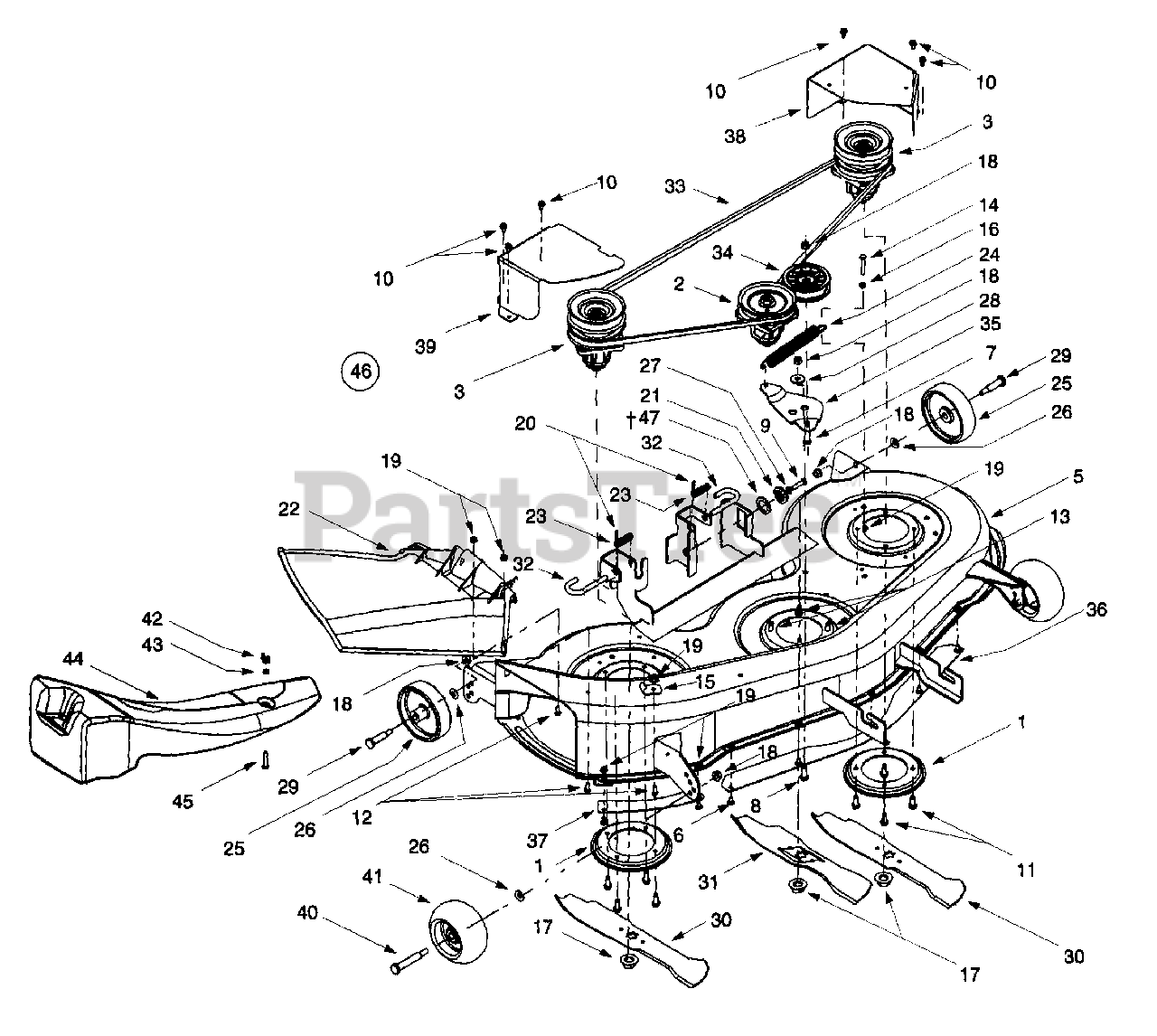

Deck Assembly H Parts Diagram

  • Title

1

Troy-Bilt 17982

Reinforcement Spindle Plate
(Superseded to 17982-0637)

Variations

Troy-Bilt 17982-0637

Spindle Plate, Black - POWDER BLACK (0637)

$

$

Not available

$

$

2

Troy-Bilt 618-0240

Center Spindle Assembly, 5 Dia.
(Superseded to 918-0240C)

$136.99

$

In Stock, only 3 left!

0

Troy-Bilt 756-0959

Pulley Only
(Superseded to 956-0959)

$

$

Not available

3

Troy-Bilt 618-0241

Double Pulley Spindle Assembly
(Superseded to 918-0241B)

$183.99

$

In Stock, only 1 left!

0

Troy-Bilt 756-0603

Double Pulley Only

$119.99

$

Usually ships in 3-6 days

0

5

MTD 683-0199A

46-inch Deck Shell
(Superseded to 683-0199C)

Variations

Troy-Bilt 683-0199A-0637

46" DECK SHELL - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 683-0199A-0665

46" DECK SHELL - YARDMAN GREEN (0665)

$

$

Not available

$

$

Troy-Bilt 683-0254

Deck Adjustment Bracket w/Weld Nut
(Superseded to 683-0254B)

Variations

Troy-Bilt 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0167

Carriage Screw, 1/4-20 x .5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

10

Troy-Bilt 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0650

Self Tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-0106

Hex Cap Screw, 1/4-20 x 1.25 (Grade 5)
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 16606

Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

16

Troy-Bilt 712-0291

Center Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 8

0

17

Troy-Bilt 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 714-0104

Internal Cotter Pin, .072 x 1.12

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 717-1553A

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 9

0

22

Troy-Bilt 731-1032A

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 5

0

23

Troy-Bilt 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 732-0594A

Extension Spring, .91 x 7.33
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 738-0347

Shoulder Spacer, .625 x .169
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 738-0373

Shoulder Spacer, .498 x 1.53
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 742-0611

Three-in-one Blade, Star Center, 16.28
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 742-0612

Three-in-one Blade, Star Center, 14.88
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 13

0

32

Troy-Bilt 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

33

Troy-Bilt 754-0349

Deck Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 756-0627

Flat Idler Pulley, 3.5 OD
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 783-0139

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

Troy-Bilt 783-0139-0637

Idler Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

36

Troy-Bilt 783-0141

Center Deck Skirt

Variations

Troy-Bilt 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 783-0142

RH Deck Skirt
(Superseded to 783-0142-0637)

Variations

Troy-Bilt 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 783-0747

LH Belt Cover
(Superseded to 783-0747B)

Variations

Troy-Bilt 783-0747-0498

Belt Cover, LH 46" Yellow - OLD CUB YELLOW (0498)

$58.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0747-0637

Belt Cover, LH 46" Black - POWDER BLACK (0637)

$58.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0747-0691

Belt Cover, LH 46" Black - BLACK JACK (0691)

$58.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0747-0716

Belt Cover, LH 46" Yellow - CUB YELLOW-99 (0716)

$58.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0747-0650

Belt Cover, LH 46" Red - RED METALLIC (0650)

$58.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0747-0665

Belt Cover, LH 46" - YARDMAN GREEN (0665)

$58.99

$

In Stock, only 1 left!

0

$54.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 783-0805

RH Belt Cover
(Superseded to 783-0805C)

Variations

Troy-Bilt 783-0805-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0805-0498

BELT COVER (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0805-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0805-0691

COVER-BELT RH - BLACK JACK (0691)

$

$

Not available

$

$

40

Troy-Bilt 738-3056

Shoulder Screw, .5 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 734-30586

Deck Wheel, 5

$

$

Currently unavailable

42

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 712-0291

Center Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 8

0

44

Troy-Bilt 731-1636

Mulch Plug

$149.99

$

In Stock, only 1 left!

0

45

Troy-Bilt 710-0578

Screw, 1/4-20 x 1.5

$4.49

$

Usually ships in 3-6 days

0

46

Troy-Bilt 753-0853

46-inch Deck Assembly Complete
(Superseded to 753-0875)

Variations

Troy-Bilt 753-0853-0637

DECK ASSEMBLY KIT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 753-0853-0665

KIT-DECK ASM COMP4 - YARDMAN GREEN (0665)

$

$

Not available

$

$

47

Troy-Bilt 736-0163

Flat Washer, 1.03 x 1.62 x .030

$4.49

$

In Stock, Qty 20+

0
