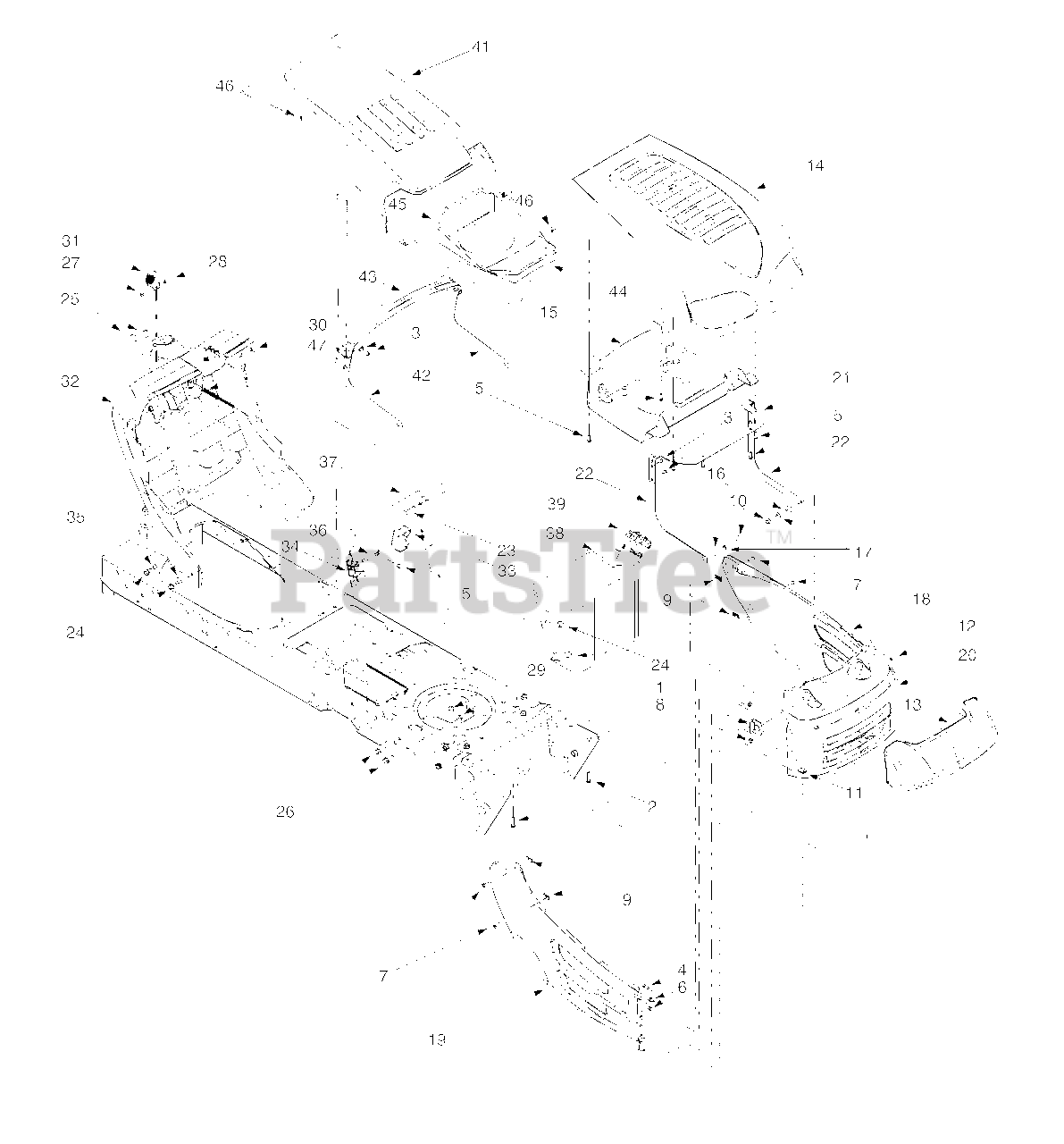

14AV808P016 - Statesman Garden Tractor (2000) (Southern States) Hood Style 7 & 8 Parts Diagram

Garden Tractor

Hood Style 7 & 8 Parts Diagram

  • Title

1

MTD 683-0195

Bracket Assembly
(Superseded to 683-0195-0637)

Variations

MTD 683-0195-0637

BRACKET ASM - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

2

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

6

MTD 710-0896

Screw, 1/4-15 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0924

Phillips Pan Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

10

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

MTD 726-0211

U-nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

12

MTD 726-0293

Retainer Nut, 3/8

$

$

Not available

13

MTD 731-1854

Headlight Lens
(Superseded to 931-1854A)

$82.99

$

In Stock, Qty 5

0

14

MTD 731-2300

Hood, 7-style, Red

$

$

Not available

MTD 731-2301

Hood, 7-style, Green

$

$

Not available

MTD 731-2302

Hood, 7-style, Black

$

$

Not available

MTD 731-2303

Hood, 7-style, Charcoal Grey

$

$

Not available

15

MTD 731-2306

Hood Plenum, 7-style

$

$

Not available

16

MTD 735-0126

Rubber Washer, .87 x .33
(Superseded to 735-0126A)

$

$

Not available

17

MTD 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

18

MTD 783-0475

LH Side Panel
(Superseded to 783-0475A)

Variations

MTD 783-0475-0499

PANEL-SIDE 8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0475-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0475-0638

PANEL-SIDE 8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0475-0665

PANEL-SIDE 8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0475-0691

PANEL-SIDE 8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0475-0709

PANEL-SIDE 8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

19

MTD 783-0476A

RH Side Panel
(Superseded to 783-0476B)

Variations

MTD 783-0476A-0629

PANEL-SIDE RH 8STY - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0476A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0476A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0476A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0476A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0476A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

20

MTD 783-0477

Grille
(Superseded to 783-0477A)

Variations

MTD 783-0477-0665

No Longer Available GRILLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0477-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0477-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0477-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0477-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0477-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

21

MTD 783-1034

Hood Bracket, 7-style

Variations

MTD 783-1034-0637

Hood Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 783-1038

Hood Side Bracket, 7-style
(Superseded to 783-1495-0637)

Variations

MTD 783-1038-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 710-0106

Hex Cap Screw, 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

24

MTD 710-0604A

Self-Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

25

MTD 710-1017

Truss Phillips Screw, 1/4-20 x .625

$8.49

$

In Stock, Qty 9

0

26

MTD 710-1238

Hex Washer Screw, 5/16-18 x .625
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-3217

Truss Phillips Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

28

MTD 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

29

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

30

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

31

MTD 731-1857

Throttle Control Knob

$14.99

$

In Stock, only 4 left!

0

32

MTD 731-2122

Dash Panel
(Superseded to 731-2122C)

$

$

Not available

33

MTD 731-2227

Parking Brake Button

$

$

Not available

34

MTD 731-2228

Plastic Plug

$

$

Not available

35

MTD 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

36

MTD 747-1196

Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

37

MTD 749-1087

Dash Support Tube
(Superseded to 749-1087A-0637)

Variations

MTD 749-1087-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 751-0659

Two-gallon Fuel Tank
(Superseded to 751-0659D)

Note: (Shown)

$84.99

$

In Stock, Qty 5

0

MTD 751-0658

Three-gallon Fuel Tank

$

$

Not available

39

MTD 751-0603

Fuel Cap (Fits Either Tank)
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

?40

MTD 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

41

MTD 783-0478A

Hood, 8-style
(Superseded to 983-0478B)

Variations

MTD 783-0478A-0499

HOOD-8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0478A-0629

No Longer Available HOOD-8 STY - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0478A-0638

HOOD-8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0478A-0662

HOOD-8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0478A-0665

HOOD-8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0478A-0691

HOOD-8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0478A-0709

HOOD-8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0478A-0724

No Longer Available HOOD-8 STY - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0478A-0732

HOOD-8 STYLE - SPARKLING GRAY (0732)

$

$

Not available

$295.99

$

Usually ships in 3-6 days

0

42

MTD 783-0551A

Hood Hinge Bracket, 8-style

Variations

MTD 783-0551A-0637

No Longer Available BRACKET-HO - POWDER BLACK (0637)

$

$

Not available

$

$

43

MTD 783-0553A

Hood Support Bracket, 8-style
(Superseded to 783-0553A-0637)

Variations

MTD 783-0553A-0637

BRACKET-HOOD SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 731-2247

Heat Shield
(Superseded to 731-2247A)

Note: (Units w/ B&S OHV V-Twin)

$

$

Not available

45

MTD 747-1184

Heat Shield Support Rod

$

$

Not available

46

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

47

MTD 746-1085

Choke Cable/Knob
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

MTD 731-2234

Hood Intake Bellow, 7-style,
(Superseded to 731-2234A)

Note: Not Shown (Units w/ B&S OHV V-Twin)

$29.99

$

Usually ships in 3-6 days

0
