14AU844H401 - Yard-Man Garden Tractor (1998) Electrical/Switches Parts Diagram

Garden Tractor

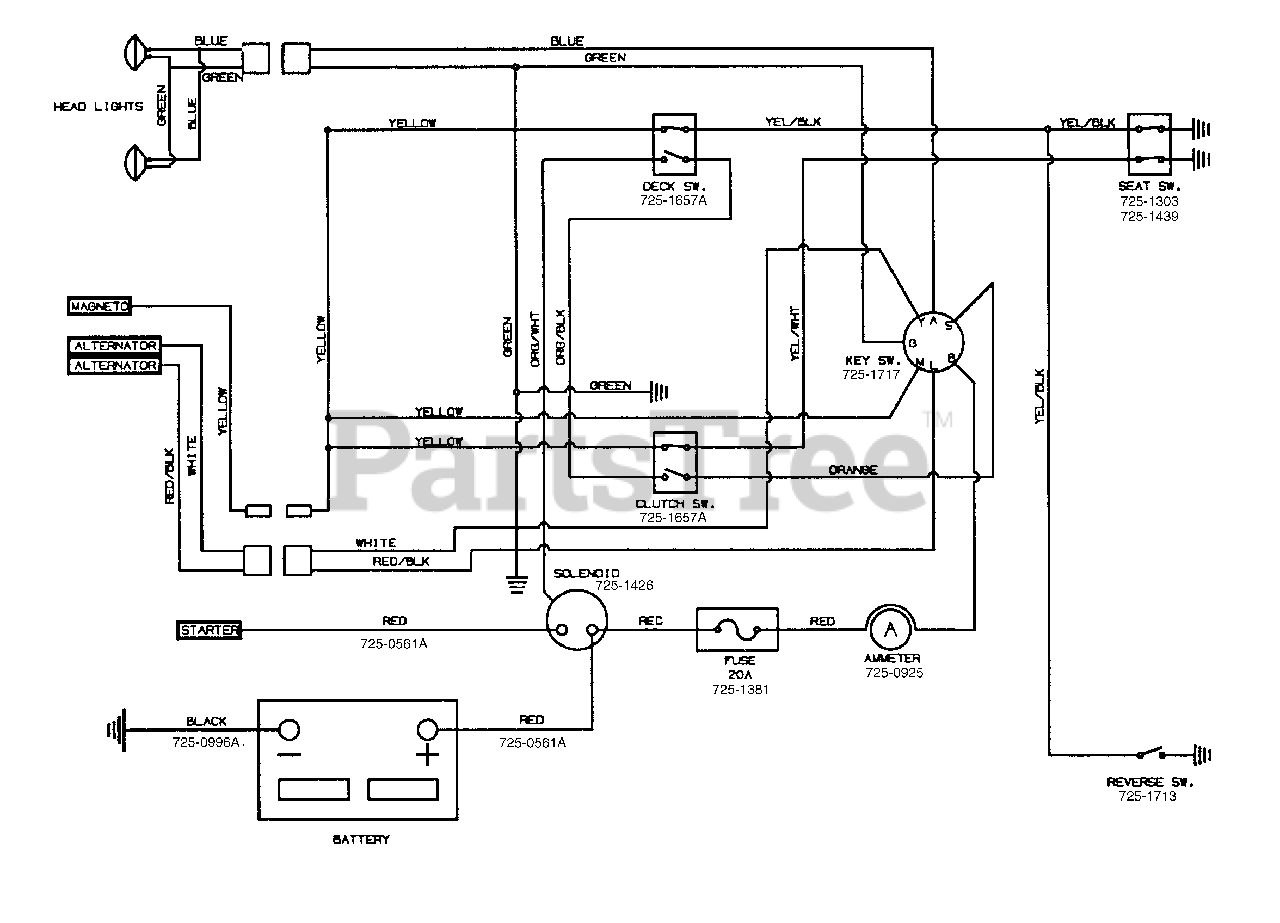

Electrical/Switches Parts Diagram

  • Title
725-1657A

MTD 725-1657A

USE 925-1657A SWITCH SAFETY
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

725-1426

MTD 725-1426

USE 925-1426A SOLENOID-12V
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

725-0561A

MTD 725-0561A

USE 629-0705 WIRE-RED W/BOOT
(Superseded to 629-0705)

$

$

Not available

725-1381

MTD 725-1381

USE 925-1381 FUSE-20A
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

725-0561A

MTD 725-0561A

USE 629-0705 WIRE-RED W/BOOT
(Superseded to 629-0705)

$

$

Not available

725-0996A

MTD 725-0996A

Battery - Black

$

$

Currently unavailable

725-1717

MTD 725-1717

USE 925-1717 SWITCH-IGNITION
(Superseded to 925-1717)

$52.99

$

In Stock, only 4 left!

0

725-1303

MTD 725-1303

USE 925-1303 SWITCH-SPRING
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

725-1439

MTD 725-1439

SWITCH-SEAT SPRING

$8.49

$

In Stock, Qty 10

0

725-1713

MTD 725-1713

SWITCH SAFETY REV

$12.99

$

Usually ships in 3-6 days

0

725-0925

MTD 725-0925

USE 925-0925 AMMETER
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

725-1657A

MTD 725-1657A

USE 925-1657A SWITCH SAFETY
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0
