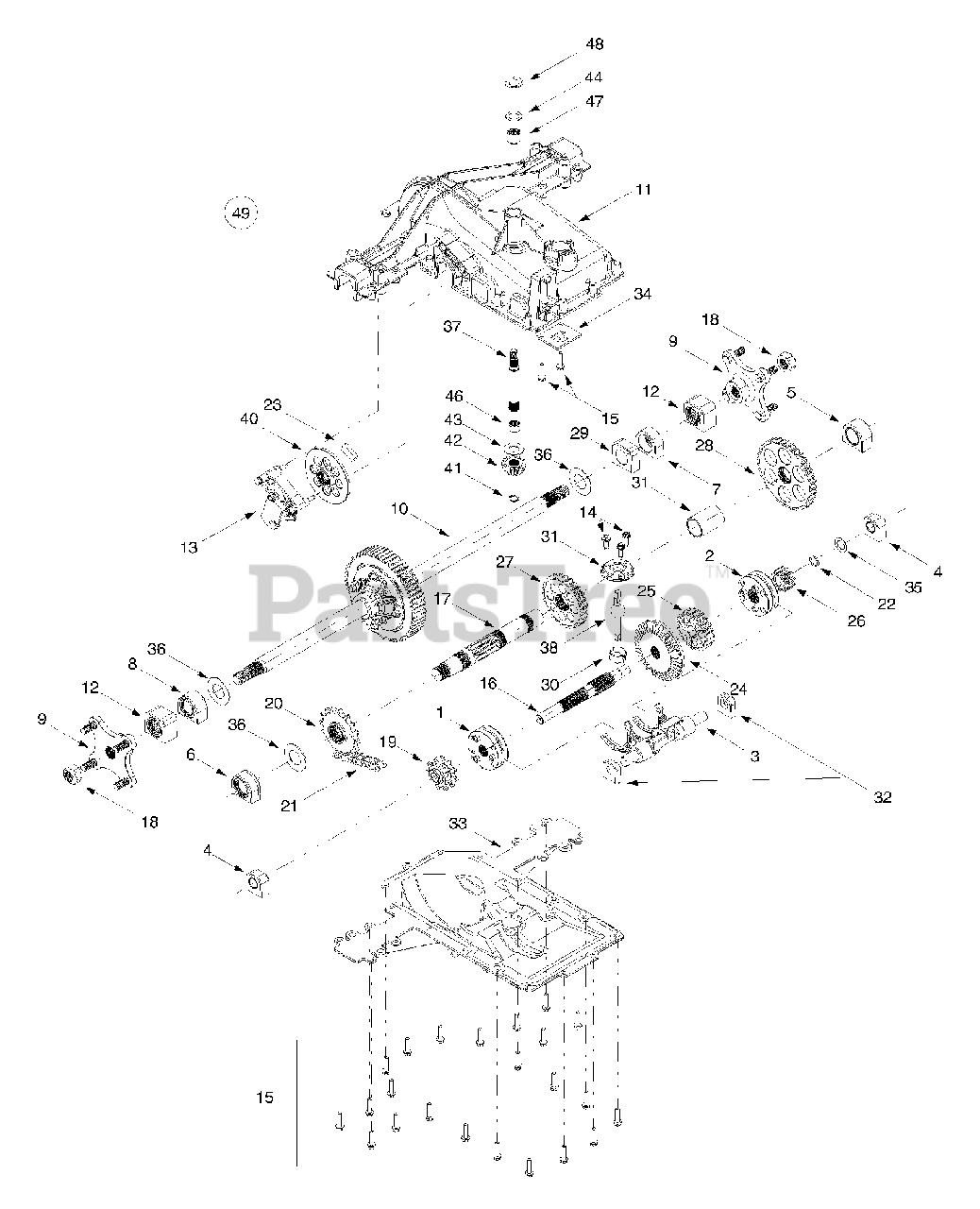

14AU807P352 - Yard Machines Garden Tractor (2002) (Walmart) Transmission Parts Diagram

Garden Tractor

Transmission Parts Diagram

  • Title

1

MTD 618-0225

Reverse Collar Assembly

$

$

Not available

2

MTD 618-0226

Hi-Lo Collar Assembly

$125.99

$

Usually ships in 3-6 days

0

3

MTD 618-0227A

Shift Fork Assembly

$

$

Not available

4

MTD 618-0284

Detent Block Assembly

$

$

Not available

5

MTD 618-0285

Output Bearing Block Assembly

$

$

Not available

6

MTD 618-0286

Output Seal Bearing Block Assembly

$51.99

$

Usually ships in 3-6 days

0

7

MTD 618-0287

Inboard Sealed Axle Block Assembly

$

$

Not available

8

MTD 618-0302

Inboard Sealed Axle Block Assembly

$

$

Not available

9

MTD 618-0365

Wheel Hub Assembly
(Superseded to 618P0579B)

$77.99

$

In Stock, only 3 left!

0

10

MTD 618-0368

Differential Axle Assembly
(Superseded to 918-0368A)

$

$

Not available

11

MTD 719-0379A

Upper Housing

$

$

Not available

12

MTD 641-0002A

Axle Bearing Block Assembly

$

$

Not available

13

MTD 661-0012

Brake Assembly
(Superseded to 961-0012)

$

$

Not available

14

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0788

Self-tapping Screw, 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

16

MTD 711-1051A

Drive Shaft

$

$

Not available

17

MTD 711-1216

Output Shaft

$160.99

$

Usually ships in 3-6 days

0

18

MTD 712-1329

Nut, 3/4-16

$12.99

$

Usually ships in 3-6 days

0

19

MTD 713-0446

9-tooth Sprocket
(Superseded to 913-0446)

$

$

Not available

20

MTD 713-0447

16-tooth Sprocket

$

$

Not available

21

MTD 713-0448

22-link Chain, .625
(Superseded to 913-0448)

$

$

Not available

22

MTD 716-0131

External Snap Ring
(Superseded to 916-0131)

$7.49

$

In Stock, only 1 left!

0

23

MTD 717-0678

Brake Pad
(Superseded to 917-0678)

$7.49

$

In Stock, only 1 left!

0

24

MTD 717-1438

41-tooth Bevel Gear
(Superseded to 917-1438A)

$

$

Not available

25

MTD 717-1439

20-tooth Spur Gear
(Superseded to 917-1439A)

$

$

Not available

26

MTD 717-1440

10-tooth Spur Gear

$

$

Not available

27

MTD 717-1441

27-tooth Spur Gear

$

$

Not available

28

MTD 717-1442

37-tooth Spur Gear

$

$

Not available

29

MTD 718-0500

Inner Axle Bearing Block

$

$

Not available

30

MTD 718-0504

Shifter Insert

$4.99

$

Usually ships in 3-6 days

0

31

MTD 718-0505

Shifter Cover

$21.99

$

Usually ships in 3-6 days

0

32

MTD 718-0537

Shifter Bearing Block

$

$

Not available

33

MTD 719-0385

Lower Housing

$

$

Not available

34

MTD 718-0540

Lockout Plate

$

$

Not available

35

MTD 736-0337

Flat Washer, 5/8 x 1.0

$4.49

$

In Stock, Qty 9

0

36

MTD 736-3046A

Flat Washer, 1.01 x 1.86 x .060

$8.99

$

Usually ships in 3-6 days

0

37

MTD 711-1235

Input Shaft

$

$

Not available

38

MTD 747-1140

Shift Lever

$56.99

$

In Stock, only 2 left!

0

?39

MTD 750-1033A

Spacer, 1.13 x 1.38 x 1.968

$

$

Not available

40

MTD 761-0215

Disc Brake

$20.99

$

In Stock, only 1 left!

0

41

MTD 716-0114

Retaining Ring, .56
(Superseded to 916-0114)

$6.99

$

In Stock, only 2 left!

0

42

MTD 717-1463

13-tooth Bevel Gear
(Superseded to 717-1463A)

$

$

Not available

43

MTD 736-0335

Flat Washer

$6.99

$

In Stock, Qty 8

0

44

MTD 736-0337

Flat Washer, 5/8 x 1.0 x .040

$4.49

$

In Stock, Qty 9

0

46

MTD 741-0335

Needle Bearing
(Superseded to 941-0335)

$18.99

$

In Stock, only 3 left!

0

47

MTD 741-0696

Needle Bearing

$30.99

$

Usually ships in 3-6 days

0

48

MTD 716-0231

E-ring, .75

$3.99

$

In Stock, Qty 20+

0

49

MTD 618-0376

Transmission Assembly Complete
(Superseded to 753-05002)

$2299.99

$

Usually ships in 3-6 days

0

MTD 737-0148

Grease-10 oz
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

MTD 737-0289

Grease

$

$

Currently unavailable
