14AS848H022 - Yard Machines Lawn & Garden Tractor (2000) (Cotter & Company) Hood Style 8 Parts Diagram

Lawn & Garden Tractor

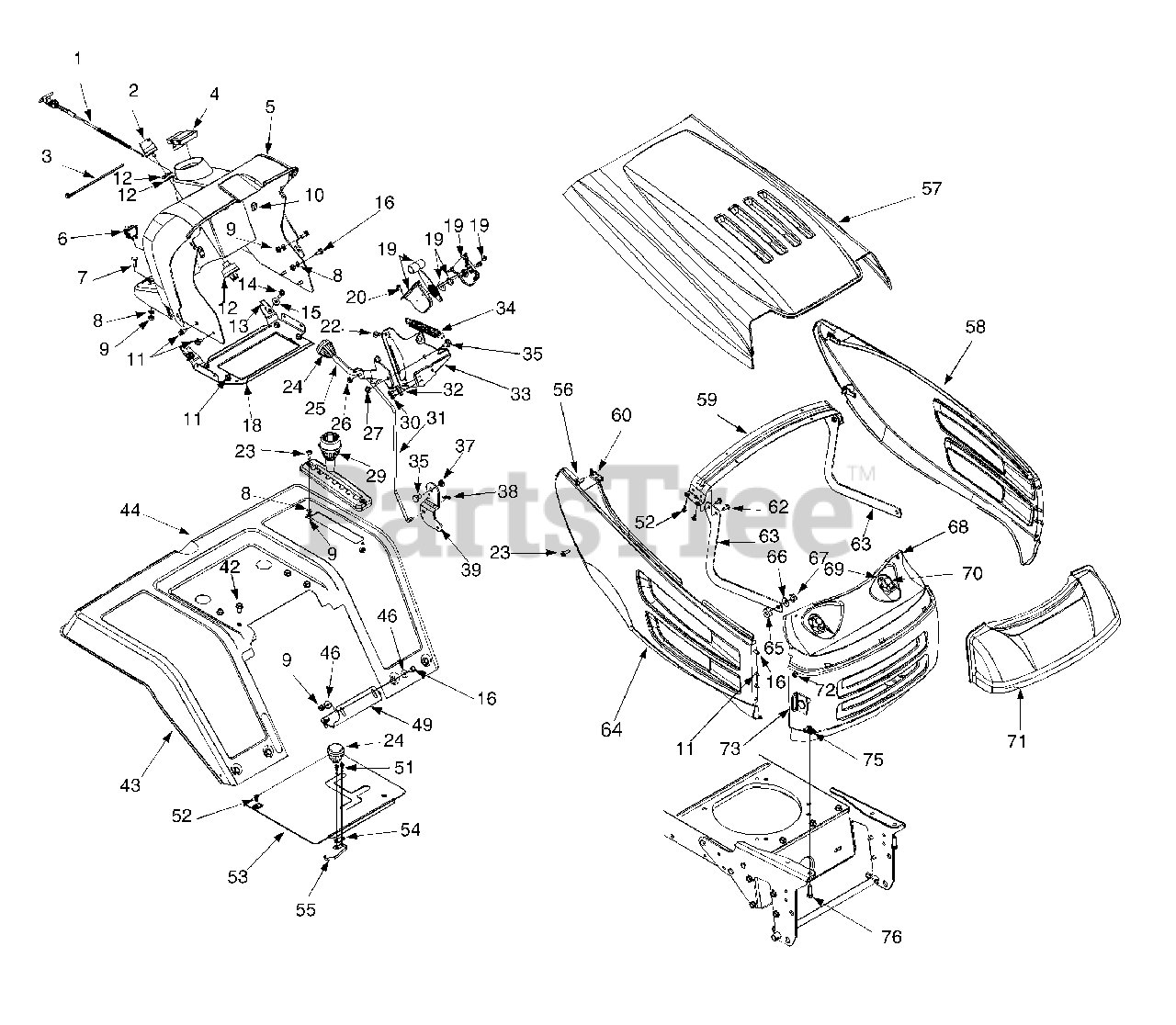

Hood Style 8 Parts Diagram

  • Title

1

MTD 746-0614A

Choke Cable

$24.99

$

In Stock, only 1 left!

0

2

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

3

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

4

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

5

MTD 731-1853

Dash Panel

$

$

Not available

6

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

7

MTD 710-0932

Carriage Bolt 1/4-20 x 1" Lg.
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

8

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

9

MTD 712-3006

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 19

0

10

MTD 17782

Choke Retainer

$

$

Not available

11

MTD 710-0896

Hex Wash. Hd. AB-Tapp Scr.

$4.49

$

In Stock, Qty 20+

0

12

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

13

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

14

MTD 710-0642

Hex Wash. Hd. TT-Tapp Scr.

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

18

MTD 783-0347A

Battery Bracket
(Superseded to 783-0347A-0637)

Variations

MTD 783-0347A-0637

BRACKET-MT BATTERY - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 831-0823A

Throttle Box Assembly

$32.99

$

In Stock, Qty 20+

0

20

MTD 710-0779A

Truss Mach. AB-Tap Scr.

$4.49

$

In Stock, Qty 12

0

22

MTD 710-1017

Truss Mach. AB-Tap Scr. .62" Lg.

$8.49

$

In Stock, Qty 9

0

23

MTD 710-0924

Pan Hd. Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

MTD 731-1774

7 Speed Shift Plate
(Superseded to 931-1774)

$31.99

$

In Stock, Qty 8

0

24

MTD 720-0232

Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

25

MTD 17500

PTO Lever

$

$

Not available

26

MTD 726-0106

Speed Cap Nut

$3.99

$

Usually ships in 3-6 days

0

27

MTD 712-3009

Hex L-Nut 5/16-18 Thd.

$6.99

$

In Stock, Qty 20+

0

29

MTD 720-0218

Knob

$19.99

$

Usually ships in 3-6 days

0

30

MTD 710-0224

Hex Wash. Hd. AB-Tap Scr.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

31

MTD 747-0750A

Deck Connection Rod

$28.99

$

Usually ships in 3-6 days

0

32

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

33

MTD 783-0461A

PTO Bracket
(Superseded to 783-0461A-0637)

Variations

MTD 783-0461A-0637

BRACKET-PT0 - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 732-0626

Ext. Spring 5.06" Lg.

$12.99

$

In Stock, only 1 left!

0

35

MTD 738-0155

Shld. Bolt 1.62" Lg.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

37

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

38

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

39

MTD 13887A

Control Deck Pivot Bracket

$

$

Not available

42

MTD 710-0726

Hex Wash. Hd. AB-Tapp Scr.

$4.49

$

In Stock, Qty 20+

0

43

MTD 17426A

Fender

Note: Model (14AS848H022)

Variations

MTD 17426A-0483

FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17426A-0499

No Longer Available FENDER-RR - CUB BEIGE (0499)

$

$

Not available

MTD 17426A-0606

No Longer Available FENDER-RR - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 17426A-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17426A-0638

FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17426A-0648

FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17426A-0650

No Longer Available FENDER-RR - RED METALLIC (0650)

$

$

Not available

MTD 17426A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17426A-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

MTD 17426A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17426A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17426A-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17426A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17426A-0692

No Longer Available FENDER-RR - AGWAY BLUE (0692)

$

$

Not available

MTD 17426A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

MTD 783-0351

Fender

Note: Model (14AJ848H131)

Variations

MTD 783-0351-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0351-0483

No Longer Available FENDER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0351-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0351-0638

FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0351-0648

No Longer Available FENDER - TECH GRAY (0648)

$

$

Not available

MTD 783-0351-0665

No Longer Available FENDER - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

MTD 731-0511

Trim Strip 81" Lg.

Note: Model (14AS848H022)

$3.99

$

Usually ships in 3-6 days

0

46

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

49

MTD 15847

Fender Brkt.-L.H.

Note: Model (14AS848H022)

Variations

MTD 15847-0637

No Longer Available BRACKET-FE - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17407

Fender Brkt.-L.H.

Note: Model (14AJ848H131)

Variations

MTD 17407-0637

No Longer Available BRKT-FENDE - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 15846

Fender Brkt.-R.H.

Note: Model (14AS848H022); Not Shown

Variations

MTD 15846-0637

Fender Brkt. R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17406

Fender Brkt.-L.H.
(Superseded to 17406-0637)

Note: Model (14AJ848H131); Not Shown

Variations

MTD 17406-0637

Fender Bracket-R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

52

MTD 710-0351

Truss Hd. B-Tapp Scr.

$4.49

$

Usually ships in 3-6 days

0

53

MTD 783-0348

Shift Cover

Variations

MTD 783-0348-0637

No Longer Available COVER-SHIF - POWDER BLACK (0637)

$

$

Not available

MTD 783-0348-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0348-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0348-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

54

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

55

MTD 725-1713

Spring Switch

$12.99

$

Usually ships in 3-6 days

0

56

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

57

MTD 783-0478

Hood
(Superseded to 983-0478B)

Variations

MTD 783-0478-0499

HOOD-8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0478-0638

HOOD-8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0478-0662

HOOD-8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0478-0691

HOOD-8 STYLE - BLACK JACK (0691)

$

$

Not available

$295.99

$

Usually ships in 3-6 days

0

58

MTD 783-0475A

Side Panel-L.H.
(Superseded to 783-0475C)

Variations

MTD 783-0475A-0499

PANEL-SIDE 8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0475A-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0475A-0638

PANEL-SIDE 8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0475A-0662

PANEL-SIDE 8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0475A-0665

PANEL-SIDE 8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0475A-0691

PANEL-SIDE 8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0475A-0709

PANEL-SIDE 8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0475A-0724

PANEL-SIDE 8 STYLE - CHAMPAGNE PLUS (0724)

$

$

Not available

$

$

59

MTD 783-0553A

Hood Support Bracket
(Superseded to 783-0553A-0637)

Variations

MTD 783-0553A-0637

BRACKET-HOOD SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

60

MTD 712-0185

U-Nut 5/16-18 Thd.

$

$

Not available

62

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

63

MTD 783-1309

Hood Hinge Bracket

Variations

MTD 783-1309-0637

No Longer Available BRACKET-HO - POWDER BLACK (0637)

$

$

Not available

$

$

64

MTD 783-0476B

Side Panel-R.H.

Variations

MTD 783-0476B-0629

PANEL-SIDE RH 8STY - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0476B-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0476B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0476B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0476B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0476B-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0476B-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0476B-0724

No Longer Available PANEL-SIDE - CHAMPAGNE PLUS (0724)

$

$

Not available

$

$

65

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

66

MTD 736-0105

Spr. Washer

$4.49

$

In Stock, Qty 20+

0

67

MTD 712-0431

Flange L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

68

MTD 726-0293

Retainer Nut

$

$

Not available

69

MTD 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

70

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

71

MTD 731-1854A

Lens
(Superseded to 931-1854A)

$82.99

$

In Stock, Qty 5

0

72

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

73

MTD 683-0195

Grille Bracket
(Superseded to 683-0195-0637)

Variations

MTD 683-0195-0637

BRACKET ASM - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

?74

MTD 783-0477

Grille
(Superseded to 783-0477A)

Variations

MTD 783-0477-0665

No Longer Available GRILLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0477-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0477-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0477-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0477-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0477-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

75

MTD 726-0211

U-Nut 5/16 Thd.

$4.49

$

In Stock, only 1 left!

0

76

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0
