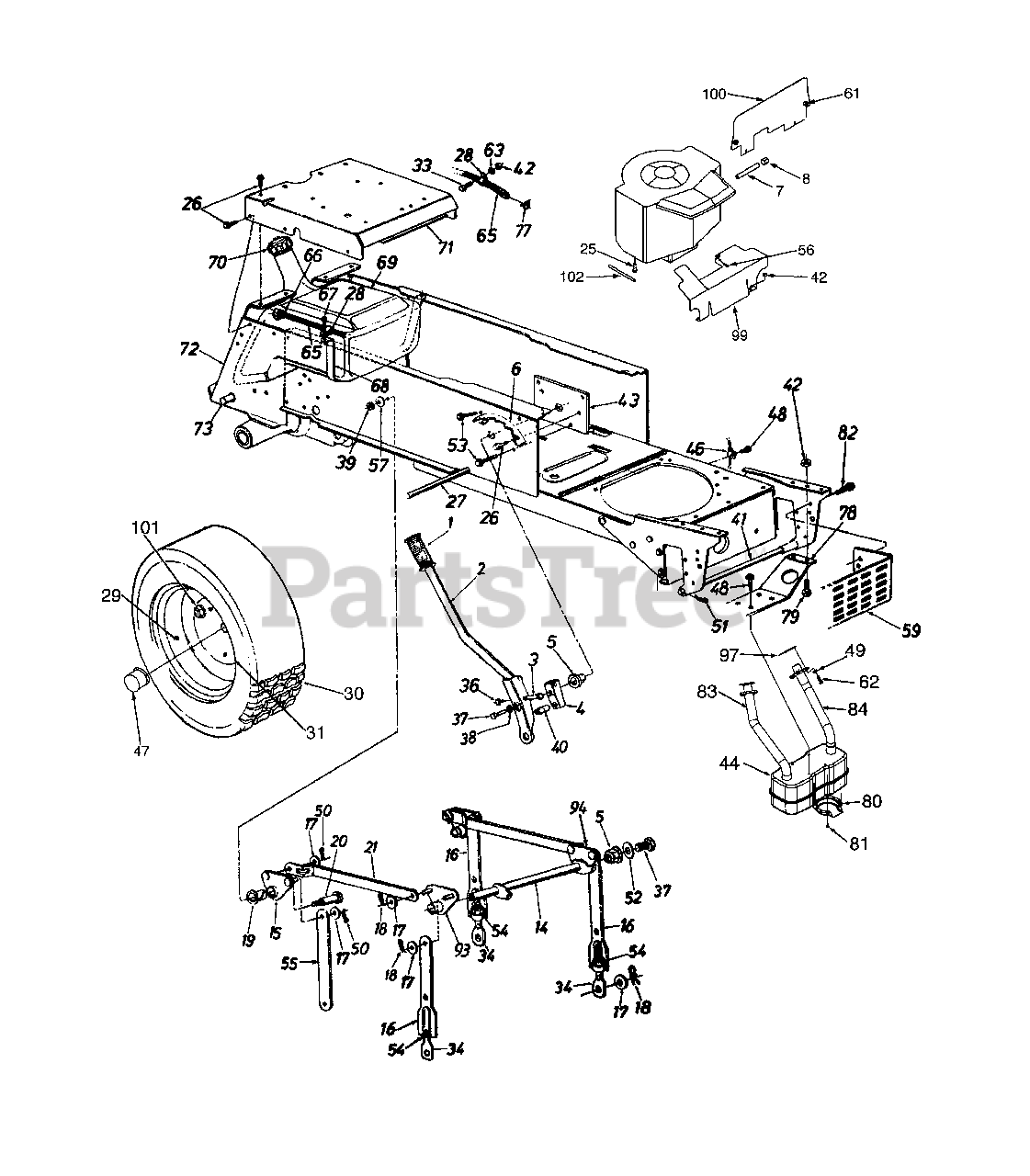

14AS83AH000 - Yard Machines Garden Tractor (1997) Deck Lift & Hanger Assembly/Wheels, Rear/Muffler/Fuel Tank Parts Diagram

Garden Tractor

Deck Lift & Hanger Assembly/Wheels, Rear/Muffler/Fuel Tank Parts Diagram

  • Title

1

MTD 720-0233

Grip
(Superseded to 920-0233)

$

$

Not available

2

MTD 97282

Lift Handle Ass'y.

Variations

MTD 97282-0637

No Longer Available HANDLE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 748-0274A

Lift Shaft Drive

$

$

Not available

5

MTD 741-0225

Plastic Hex Brg. 5/8" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

6

MTD 14231

Index Brkt. Deck Lift
(Superseded to 14231-0637)

Variations

MTD 14231-0637

Index Deck Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 737-0164

Oil Drain Pipe
(Superseded to 937-0164)

$

$

Not available

8

MTD 737-0143

Oil Drain Cap

$

$

Not available

14

MTD 983-0101

Lift Shaft Ass'y.

$

$

Not available

15

MTD 13895

Lift Pivot Brkt. Ass'y.

$

$

Not available

16

MTD 17303

Adj. Deck Lift Link
(Superseded to 17303-0637)

Variations

MTD 17303-0637

Deck Adjustment Link - POWDER BLACK (0637)

$16.99

$

In Stock, only 2 left!

0

$16.99

$

In Stock, only 2 left!

0

17

MTD 736-0192

Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090"

$4.49

$

In Stock, Qty 18

0

18

MTD 714-0101

Hairpin Cotter

$4.99

$

In Stock, only 2 left!

0

19

MTD 741-0591

Flange Brg. .63" I.D.

$4.49

$

In Stock, Qty 9

0

20

MTD 738-0445

Shld. Bolt 5/8" Dia. x .96" Lg. 3/8-16
(Superseded to 938-0445A)

$

$

Not available

21

MTD 13790

Connecting Link
(Superseded to 13790-0637)

Variations

MTD 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 710-0502A

Hex Tap Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

26

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 738-0435

Running Board Rod

$

$

Not available

28

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

29

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

30

MTD 634-0132

Rear Wheel Ass'y. Comp.

Variations

MTD 634-0132-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

MTD 634-0132-0941

No Longer Available WHEEL ASM - Carlisle Yellow (0941)

$

$

Not available

$

$

MTD 734-1728

Tire Only

Variations

MTD 734-1728-0901

TIRE-SQUARE TREAD - Carlisle (0901)

$125.99

$

Usually ships in 3-6 days

0

MTD 734-1728-0904

TIRE-SQUARE TREAD - Cheng (0904)

$125.99

$

Usually ships in 3-6 days

0

$125.99

$

Usually ships in 3-6 days

0

31

MTD 634-3178

Rear Wheel Rim Only
(Superseded to 634-04238)

Variations

MTD 634-3178-0499

Rim Assembly, 12.0 X 7.0 - CUB BEIGE (0499)

$172.99

$

Usually ships in 3-6 days

0

MTD 634-3178-0662

RIM ASM:12.0 X 7.0 - OYSTER GRAY (0662)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-3178-0674

RIM ASM:12.0 X 7.0 - YARDMAN YELLOW (0674)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-3178-0688

RIM ASM:12.0 X 7.0 - SPRING GREEN (0688)

$197.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

33

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

34

MTD 711-0817

Eye Bolt Adj. Link 1/2-13 Thd.
(Superseded to 911-0817)

$14.99

$

In Stock, only 4 left!

0

36

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

38

UNKNOWN

$

$

Not available

39

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

40

MTD 732-0369

Compression Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

41

MTD 738-0777A

Deck Connecting Rod

$37.99

$

Usually ships in 3-6 days

0

42

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

43

MTD 14170

Index Brkt. Reinforcement Plate
(Superseded to 14170-0637)

Variations

MTD 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 751-0616

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

?45

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

46

MTD 726-0273

Mounting Clamp

$7.49

$

In Stock, only 1 left!

0

47

MTD 34-0556

Hub Cap

$

$

Currently unavailable

48

MTD 10-0599

Hex TT-Tap Scr. 1/4-20 x .5" Lg.

$

$

Currently unavailable

49

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

50

MTD 714-0111

Cotter Pin .09 Dia. x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

51

MTD 714-0149B

Int. Cotter Pin

$4.49

$

In Stock, Qty 18

0

52

MTD 736-0231

Flat Wash. .34" I.D. x 1.12" O.D. x .125"

$4.99

$

In Stock, Qty 20+

0

53

MTD 710-0600

Hex AB-Tap Scr. 5/16-24 x .5"

$3.49

$

Usually ships in 3-6 days

0

54

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

55

MTD 14399

Deck Link
(Superseded to 14399-0637)

Variations

MTD 14399-0637

Deck Link - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

56

MTD 710-0919

Hex Slot Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 8

0

57

MTD 736-0219

Bell-Wash. .4" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

59

MTD 783-0023A

Heat Shield
(Superseded to 783-0023A-0637)

Variations

MTD 783-0023A-0637

SHEILD-HEAT - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 726-0328

Grommet

$

$

Not available

62

MTD 710-1177

Hex Bolt 5/16-18 x .75" Lg.

$

$

Not available

63

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

65

MTD 751-0535-60

Fuel Line 60" Lg.
(Superseded to 751-10349-72)

$60.99

$

In Stock, only 1 left!

0

66

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

67

MTD 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

68

MTD 17424

Fuel Tank Strap

$

$

Not available

69

MTD 751-0566

Gas Tank

$

$

Not available

70

MTD 751-0531B

Gas Gauge

$83.99

$

In Stock, Qty 5

0

71

MTD 683-0101A

Seat Plate

Note: New Part

$

$

Currently unavailable

72

MTD 783-0419

Hitch Plate
(Superseded to 783-0631)

Note: New Part

Variations

MTD 783-0419-0629

PLATE-HITCH - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0419-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

MTD 783-0419-0638

PLATE-HITCH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0419-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

73

MTD 738-0482

Hitch Rod

$

$

Not available

?76

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

77

MTD 726-0272

Hose Clamp

$7.49

$

Usually ships in 3-6 days

0

78

MTD 17958

Muffler Mounting Brkt.

$

$

Not available

79

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

80

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 4 left!

0

81

MTD 710-0148

Hex F-Tap Scr. #8 x .32" Lg.

$4.49

$

In Stock, Qty 16

0

82

MTD 710-0604

Hex TT-Tap Scr. 5/16"-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

83

MTD 751-0598

Exhaust Tube-R.H.

$

$

Not available

84

MTD 751-0599

Exhaust Tube-L.H.

$

$

Not available

93

MTD 683-0098

Pivot Brkt. Ass'y.-R.H.

$

$

Not available

94

MTD 683-0097

Pivot Brkt. Ass'y.-L.H.

$

$

Not available

97

MTD 721-0376

Gasket
(Superseded to KH-52-041-14-S)

$10.99

$

In Stock, only 2 left!

0

99

MTD 783-0105A

Lower Heat Shield

$

$

Not available

100

MTD 783-0104

Upper Heat Shield

$

$

Not available

101

MTD 712-3050

Lug Nut 7/16-14 Thd.

$9.99

$

In Stock, Qty 5

0

102

MTD 731-0511-10

Trim Strip 10" Lg.

$20.99

$

Usually ships in 3-6 days

0
