14AS825H302 - Yard Machines Garden Tractor (1997) (Builder's Square) Transmission Complete 618-0229 Parts Diagram

Garden Tractor

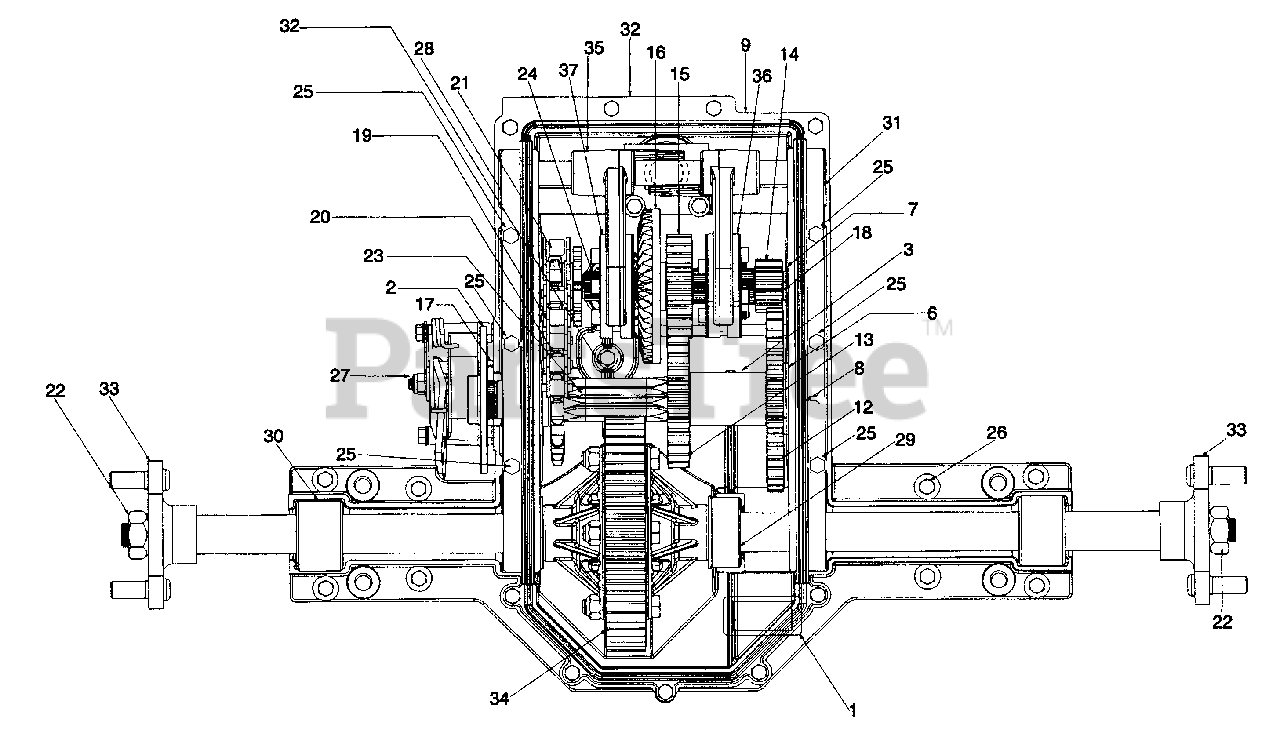

Transmission Complete 618-0229 Parts Diagram

  • Title

1

MTD 777-3045

For model I.D. Label

$

$

Currently unavailable

2

MTD 761-0209

Disc Brake

$

$

Not available

3

MTD 750-1033

Spacer 1.13" I.D. x 1.38" O.D.

$

$

Not available

6

MTD 736-3046

Stop Washer

$

$

Not available

7

MTD 736-0337

Fl-Wash. 5/8" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 9

0

8

MTD 721-0390

Gasket

$

$

Not available

9

MTD 721-0389

Main Gasket

$

$

Not available

?11

MTD 719-0338

Lower Housing

$

$

Not available

12

MTD 717-1442

Spur Gear 37T

$

$

Not available

13

MTD 717-1441

Spur Gear 27T

$

$

Not available

14

MTD 717-1440

Spur Gear 10T

$

$

Not available

15

MTD 717-1439

Spur Gear 20T
(Superseded to 917-1439A)

$

$

Not available

16

MTD 717-1438

Spur Gear 41T
(Superseded to 917-1438A)

$

$

Not available

17

MTD 717-0678

Brake Puck
(Superseded to 917-0678)

$7.49

$

In Stock, only 3 left!

0

18

MTD 716-0131

Snap Ring
(Superseded to 916-0131)

$7.49

$

In Stock, only 1 left!

0

19

MTD 713-0448

Chain Endless
(Superseded to 913-0448)

$

$

Not available

20

MTD 713-0447

Sprocket 16T

$

$

Not available

21

MTD 713-0446

Sprocket 9T
(Superseded to 913-0446)

$

$

Not available

22

MTD 712-0364

Lug Nut 5/8-18 Thd.

$

$

Not available

23

MTD 711-1072

Output Shaft--R.H.

$

$

Currently unavailable

24

MTD 711-1051

Drive Shaft
(Superseded to 711-1051A)

$

$

Not available

25

MTD 710-1347

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 2.62" Lg.

$

$

Not available

26

MTD 710-0642

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 661-0009

Brake Ass'y.--R.H.
(Superseded to 961-0009)

$

$

Not available

28

MTD 641-0004

Bearing Block Ass'y.--R.H.

$

$

Currently unavailable

29

MTD 641-0003

Bearing Block Ass'y.--Inner

$

$

Currently unavailable

30

MTD 641-0002

Bearing Block Ass'y.--Axle
(Superseded to 641-0002A)

$

$

Not available

31

MTD 641-0001

Bearing Block Ass'y.--L.H.

$

$

Currently unavailable

32

MTD 619-0017

Housing Ass'y.

$

$

Not available

33

MTD 618-0259

Hub Ass'y.--Wheel
(Superseded to 918-0259)

$

$

Not available

34

MTD 618-0228

Differential Ass'y.

$

$

Not available

35

MTD 618-0227

Shift Fork Ass'y.

$

$

Not available

36

MTD 618-0226

Collar Ass'y.--Hi-Lo

$125.99

$

Usually ships in 3-6 days

0

37

MTD 618-0225

Collar Ass'y.--Reverse

$

$

Not available
