14AS825H062 - Yard Machines Garden Tractor (2002) (Lowes) Deck Assembly H Parts Diagram

Garden Tractor

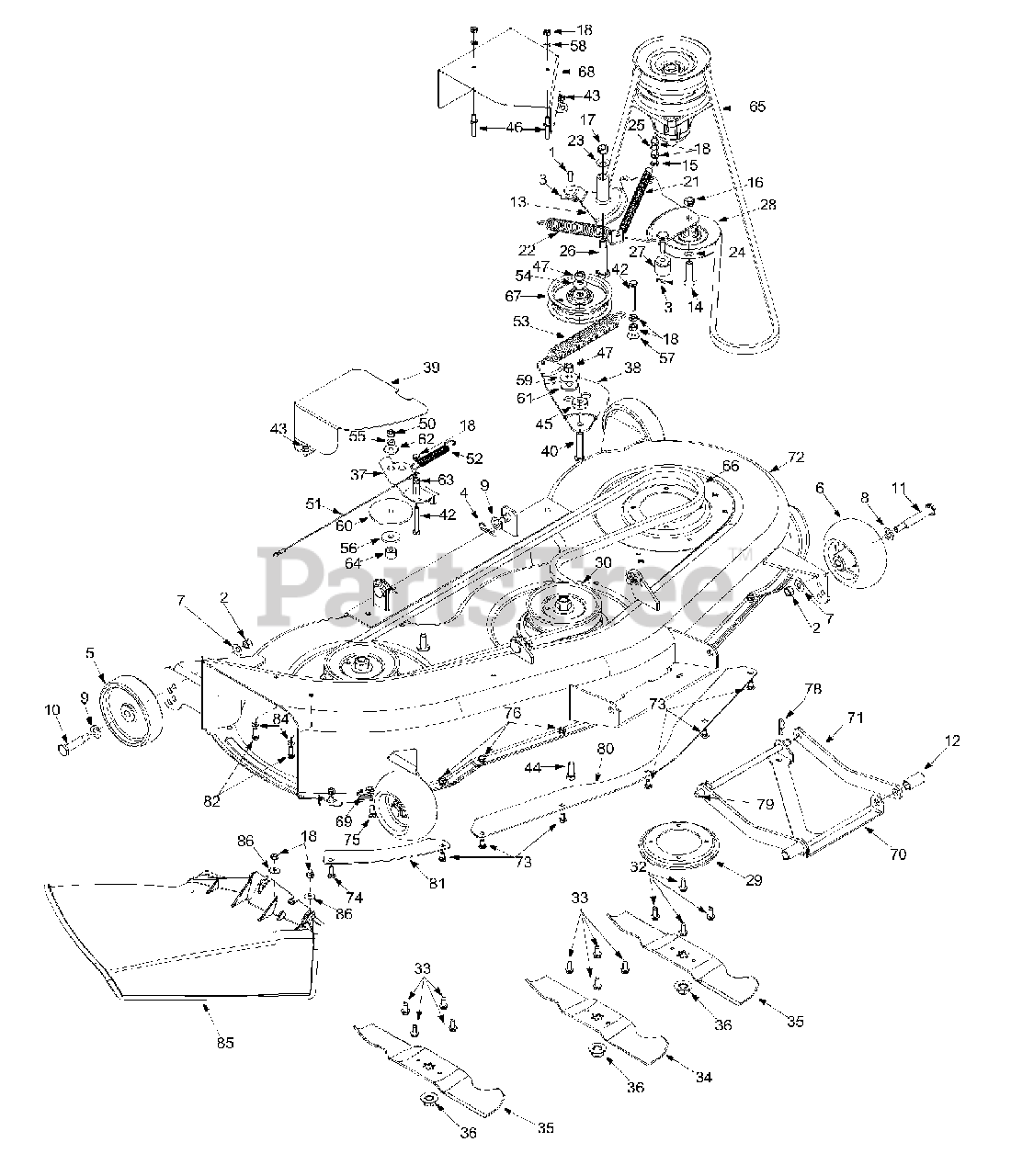

Deck Assembly H Parts Diagram

  • Title

1

MTD 711-0701

Clevis Pin
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

2

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

3

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

4

MTD 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

5

MTD 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

6

MTD 734-3058B

Deck Wheel
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

7

MTD 736-0105

Spring Washer

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

9

MTD 736-0192

Flat Washer

$4.49

$

In Stock, Qty 8

0

10

MTD 738-0533

Shoulder Screw

$7.99

$

Usually ships in 3-6 days

0

11

MTD 738-3056

Shoulder Screw
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

12

MTD 750-0932A

Spacer
(Superseded to 950-0932A)

$20.99

$

In Stock, Qty 11

0

13

MTD 14076A

Idler Bracket Assembly
(Superseded to 94076A-0637)

$

$

Not available

14
