14AR814K401 - Yard-Man Garden Tractor (2002) Deck Assembly 54-Inch Parts Diagram

Garden Tractor

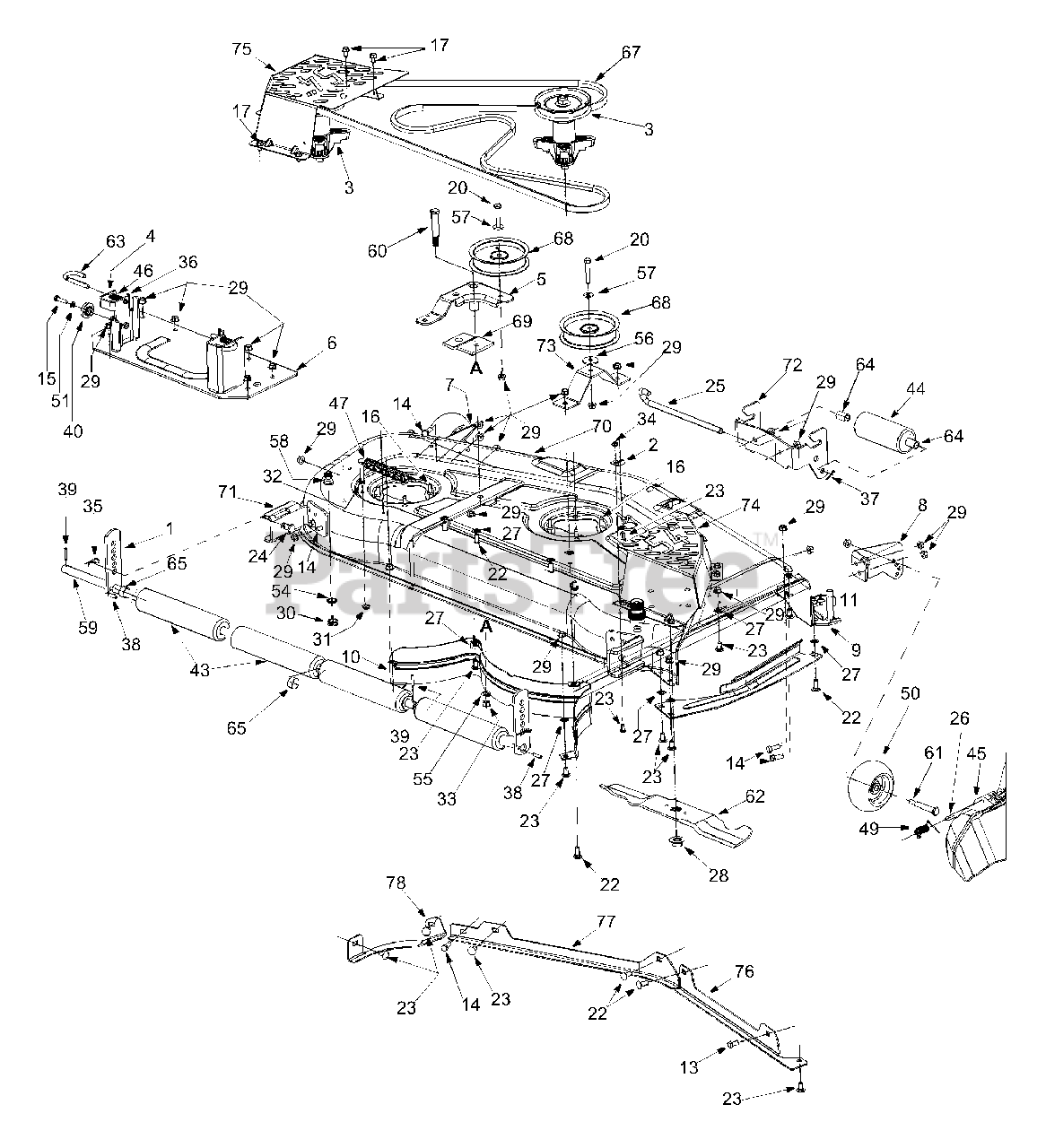

Deck Assembly 54-Inch Parts Diagram

  • Title

1

MTD 12650

Bracket, Adjustment, Height

Variations

MTD 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

MTD 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

2

MTD 96606

Bracket, Hook, Retainer

$7.49

$

In Stock, Qty 7

0

3

MTD 918-04608A

Spindle Assembly, Pulley

$153.99

$

In Stock, Qty 16

0

4

MTD 683-0254B

Bracket Assembly, Deck, Hanger LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

5

MTD 683-0459

Idlr Assembly, 54"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0459-0637

Idler Assembly, 54" GT - POWDER BLACK (0637)

$74.99

$

In Stock, only 1 left!

0

MTD 683-0459-4008

Idler Assembly, 54" GT - WINE RED (4008)

$74.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

6

MTD 683-0608

Bracket Assembly, Lift, 54"
(Superseded to 683-0608B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0608-0637

BRACKET ASM-LIFT - POWDER BLACK (0637)

$

$

Not available

MTD 683-0608-0650

BRACKET ASM-LIFT - RED METALLIC (0650)

$

$

Not available

MTD 683-0608-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

$91.99

$

Usually ships in 3-6 days

0

7

MTD 683-0609

Bracket Assembly, LH-Front

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0609-0637

No Longer Available BRACKET ASSY-FRONT - POWDER BLACK (0637)

$

$

Not available

MTD 683-0609-0650

No Longer Available BRACKET ASSY-FRONT - RED METALLIC (0650)

$

$

Not available

MTD 683-0609-0665

No Longer Available BRACKET ASSY-FRONT - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

MTD 683-0610

Bracket Assembly, RH-Front

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0610-0637

No Longer Available BRACKET ASM-FRONT - POWDER BLACK (0637)

$

$

Not available

MTD 683-0610-0650

No Longer Available BRACKET ASM - RED METALLIC (0650)

$

$

Not available

MTD 683-0610-0665

No Longer Available BRACKET ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

9

MTD 683-0617A-0637

Stop Assembly, Chute

$64.99

$

In Stock, only 3 left!

0

10

MTD 703-2093B

Baffle, RR, Inner
(Superseded to 703-2093C)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2093B-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, only 2 left!

0

$89.99

$

Usually ships in 3-6 days

0

13

MTD 710-0216

Hex Screw 3/8-16 x 0.75

$4.49

$

In Stock, Qty 15

0

14

MTD 710-0514

Hex Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-3011

Hex Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

21

MTD 710-0395

Hex Screw, 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

22

MTD 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-3178

Short Neck Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

24

MTD 911-0332

Pin, Clevis, .50 Dia x .78

$16.99

$

In Stock, Qty 17

0

25

MTD 711-1737

Pin, Roller, .5" Dia x 10.06

$25.99

$

In Stock, Qty 6

0

26

MTD 711-1762

Pin, Hinge, Dia .375 x 14.06

$18.99

$

In Stock, Qty 6

0

27

MTD 712-0229

Push Nut Retainer

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

29

MTD 712-0130

Nut, Lock, 3/8-16

$3.99

$

In Stock, Qty 11

0

30

MTD 912-0641

Hex Nut M16
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

31

MTD 912-0429

Nut, Flange Lock, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

32

MTD 912-3010

Nut, Hex, 5/16-18, Gr5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 9

0

35

MTD 914-0145

Pin, Click, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

36

MTD 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

37

MTD 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

38

MTD 715-0108

Pin, Spring 1/4 Dia x 1.00

$4.99

$

In Stock, Qty 15

0

39

MTD 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

40

MTD 917-04074

Adjustment, Deck, Gear

$13.99

$

In Stock, Qty 16

0

41

MTD 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

43

MTD 731-0335

Roller, Deck

$72.99

$

In Stock, Qty 11

0

44

MTD 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

45

MTD 931-3131A

Deflector, Chute

$108.99

$

In Stock, only 4 left!

0

46

MTD 932-0306A

Spring, Compression, .406 x .531 x 1.75

$8.49

$

In Stock, only 4 left!

0

47

MTD 732-0459C

Spring, Extension, .94 Dia x 6.74

$18.99

$

In Stock, only 3 left!

0

48

MTD 732-0934

Spring, Extension, 1.15 Dia x 5.99

$11.99

$

In Stock, only 1 left!

0

49

MTD 732-3070A

Torsion Spring .44 I.d. x 2.10

$11.99

$

In Stock, only 4 left!

0

50

MTD 753-04856A

Deck Wheel, 5" Dia.

$20.99

$

In Stock, Qty 20+

0

51

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

54

MTD 936-0760

Lock Washer

$4.49

$

In Stock, Qty 13

0

55

MTD 936-0921

Lock Washer
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

56

MTD 936-3039

Flat Washer .406 ID X 1.5 x 11ga
(Superseded to 736-3039)

$

$

Not available

57

MTD 736-3072

Washer, Flat .38 ID x.93 OD x.110

$4.49

$

In Stock, Qty 20+

0

58

MTD 737-04003D

Water Nozzle: Deck Wash-Out System

$23.99

$

In Stock, Qty 6

0

59

MTD 738-0295

Shaft, Roller

$124.99

$

In Stock, only 2 left!

0

60

MTD 738-1229A

Shoulder Screw

$12.99

$

In Stock, only 4 left!

0

61

MTD 938-0373

Shoulder Screw

$9.49

$

In Stock, Qty 20+

0

62

MTD 942-0677B

Blade, 18.50"

$30.99

$

In Stock, Qty 20+

0

63

MTD 747-1116

Deck Release Handle Rod, .375 Dia

$12.99

$

In Stock, Qty 6

0

64

MTD 950-0151

Spacer .550 ID x .755 OD x 1.1

$10.99

$

In Stock, Qty 20+

0

65

MTD 950-0212

Spacer, .82 ID x 1.00 OD x .53
(Superseded to 750-0212)

$

$

Not available

67

MTD 954-0642

Belt, V-Type, B Section

$82.99

$

In Stock, Qty 8

0

68

MTD 756-3105

Pulley, Idler, 5.0 Dia.

$73.99

$

In Stock, only 3 left!

0

69

MTD 783-04013A

Bracket, Stabilizing

Variations

MTD 783-04013A-0637

Stabilizer Bracket - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

MTD 783-04013A-4008

Stabilizer Bracket - WINE RED (4008)

$22.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

70

MTD 983-04127

Deck

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 983-04127-0637

SHELL-54" DECK - POWDER BLACK (0637)

$1098.99

$

Usually ships in 3-6 days

0

MTD 983-04127-0650

DECK-54" - RED METALLIC (0650)

$1098.99

$

Usually ships in 3-6 days

0

$1027.99

$

Usually ships in 3-6 days

0

70

MTD 983-04127

Deck, w/Water Nozzle Ftg.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 983-04127-0637

SHELL-54" DECK - POWDER BLACK (0637)

$1098.99

$

Usually ships in 3-6 days

0

MTD 983-04127-0650

DECK-54" - RED METALLIC (0650)

$1098.99

$

Usually ships in 3-6 days

0

$1027.99

$

Usually ships in 3-6 days

0

71

MTD 783-1453

Bracket, Mounting, 54" Roller

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1453-0637

BRACKET-MOUNT ROLLER - POWDER BLACK (0637)

$

$

Not available

MTD 783-1453-0638

BRACKET-MOUNT ROLLER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-1453-0650

BRACKET-MOUNT ROLLER - RED METALLIC (0650)

$

$

Not available

MTD 783-1453-0665

No Longer Available BRACKET-MO - YARDMAN GREEN (0665)

$

$

Not available

$

$

72

MTD 783-1454D

Bracket, Roller, Front

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1454D-0637

Front Roller Bracket - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 783-1454D-0650

Front Roller Bracket - RED METALLIC (0650)

$57.99

$

Usually ships in 3-6 days

0

MTD 783-1454D-4008

BRACKET-ROLLER FRO - WINE RED (4008)

$57.99

$

Usually ships in 3-6 days

0

MTD 783-1454D-0665

BRACKET-FRONT ROLLER - YARDMAN GREEN (0665)

$57.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

73

MTD 783-1455

Bracket, Idler

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1455-0637

BRACKET-IDLER - POWDER BLACK (0637)

$

$

Not available

MTD 783-1455-0716

BRACKET-IDLER - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-1455-0650

BRACKET-IDLER - RED METALLIC (0650)

$

$

Not available

MTD 783-1455-0665

No Longer Available BRACKET-ID - YARDMAN GREEN (0665)

$

$

Not available

$

$

74

MTD 783-1470A

Cover, Spindle RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1470A-0606

COVER-SPINDLE RH - MAJESTIC ORANGE (0606)

$86.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0637

Spindle Cover, RH - POWDER BLACK (0637)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0665

COVER-SPINDLE RH - YARDMAN GREEN (0665)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0716

COVER-SPINDLE RH - CUB YELLOW-99 (0716)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4021

Spindle Cover, RH - CUB YELLOW 2 (4021)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4028

Spindle Cover, RH - SEARS YELLOW (4028)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0691

COVER-SPINDLE RH - BLACK JACK (0691)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4008

COVER-SPINDLE RH - WINE RED (4008)

$86.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4044

COVER-SPINDLE RH - CRAFTSMAN RED (4044)

$86.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0650

COVER-SPINDLE RH - RED METALLIC (0650)

$

$

Not available

$86.99

$

Usually ships in 3-6 days

0

75

MTD 783-1471A

Cover, Spindle LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1471A-0606

COVER-SPINDLE LH - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-0637

Spindle Cover, LH - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-0650

COVER-SPINDLE LH - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-0716

Spindle Cover, LH - CUB YELLOW-99 (0716)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-4021

Spindle Cover, LH - CUB YELLOW 2 (4021)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-0665

COVER-SPINDLE LH - YARDMAN GREEN (0665)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-0691

COVER-SPINDLE LH - BLACK JACK (0691)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-4008

COVER-SPINDLE LH - WINE RED (4008)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-4028

COVER-SPINDLE LH - SEARS YELLOW (4028)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-4044

COVER-SPINDLE LH - CRAFTSMAN RED (4044)

$80.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

76

MTD 783-1482-0637

RH Skirt

$

$

Not available

77

MTD 783-1483-0637

LH Skirt

$41.99

$

Usually ships in 3-6 days

0

78

MTD 783-1484-0637

LH Extension Skirt

$58.99

$

Usually ships in 3-6 days

0

79

MTD 703-3279

Chute Stop

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

MTD 753-04000

54-inch Deck Assembly Kit

Note: (not shown)

Variations

MTD 753-04000-0637

KIT-DECK ASM COMP5 - POWDER BLACK (0637)

$

$

Not available

MTD 753-04000-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 753-04000-0665

No Longer Available KIT-DECK A - YARDMAN GREEN (0665)

$

$

Not available

$1886.99

$

Usually ships in 3-6 days

0
