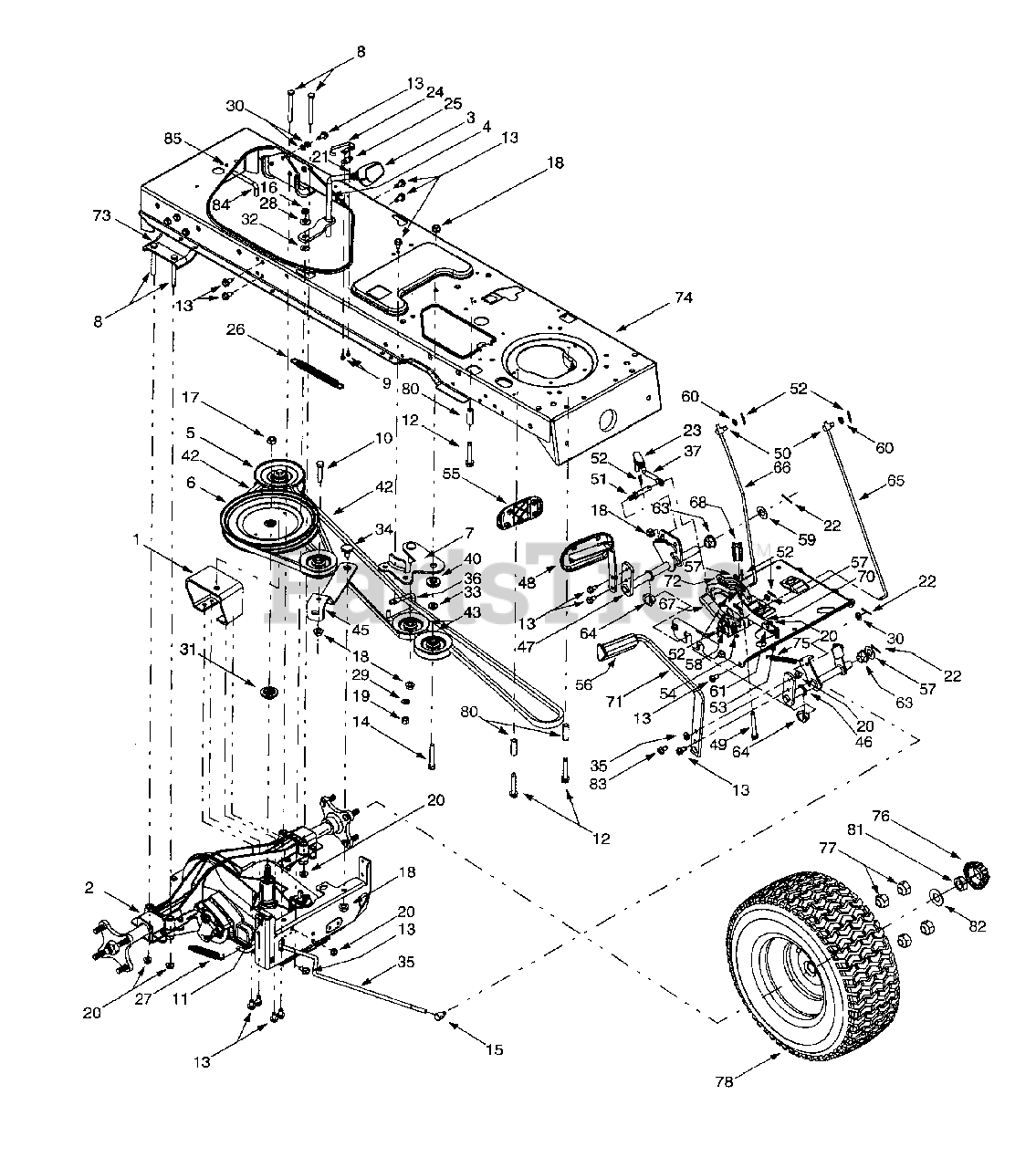

14AR807P131 - Huskee Garden Tractor (2001) (Tractor Supply) Drive, Wheels Rear, Control Parts Diagram

Garden Tractor

Drive, Wheels Rear, Control Parts Diagram

  • Title

1

MTD 618-0375

Variable-speed Bracket Assembly
(Superseded to 918-0375)

$

$

Not available

2

MTD 618-0376

Two-speed Transmission Assembly
(Superseded to 753-05002)

$2299.99

$

Usually ships in 3-6 days

0

3

MTD 631-0009A

Shift Knob
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

4

MTD 647-0037

Shift Lever

$

$

Not available

5

MTD 656-0050

Variable-speed Pulley Assembly

$

$

Not available

6

MTD 756-0665

Transmission Pulley, 8.5
(Superseded to 956-0665)

$73.99

$

Usually ships in 3-6 days

0

7

MTD 683-0251

Double-idler Bracket

$

$

Not available

8

MTD 710-0189

Hex Cap Screw, 5/16-18 x 3

$6.49

$

In Stock, Qty 5

0

9

MTD 710-0227

Self Tapping Screw, #8-18 x.5

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

11

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

12

MTD 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

13

MTD 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 19

0

15

MTD 711-0677

Ferrule, 5/16 x .312 Dia.
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

16

MTD 712-0181

Hex Jam Nut, 3/8-16

$4.49

$

In Stock, only 3 left!

0

17

MTD 712-0702

Hex Flange Nut, 7/16-20
(Superseded to 912-0702)

$18.99

$

In Stock, only 1 left!

0

18

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

MTD 712-0798

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 6

0

20

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-3008

Hex Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 16

0

22

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

23

MTD 723-3018

Ball Joint, 3/8-24
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

24

MTD 725-1713

Spring Switch

$12.99

$

Usually ships in 3-6 days

0

25

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

26

MTD 732-0384

Extension Spring, .62 Dia. x 6.12
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 11

0

27

MTD 732-0716

Extension Spring, .59 OD x 4.0
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

28

MTD 736-0105

Bell Washer, .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

30

MTD 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

31

MTD 718-0771

Pulley Hub, 1/2 Spline
(Superseded to 918-0771A)

$28.99

$

Usually ships in 3-6 days

0

32

MTD 736-0642

Flat Washer, .44 x .75 x .06

$3.99

$

Usually ships in 3-6 days

0

33

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

34

MTD 738-0322

Shoulder Screw, .625 Dia. x .21
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

35

MTD 747-1122

Brake Rod

$

$

Not available

36

MTD 747-1123A

Belt Guard

$

$

Not available

37

MTD 747-1127

Idler Adjustment Rod, 3/8

$42.99

$

Usually ships in 3-6 days

0

?38

MTD 710-1026

Self-tapping Screw, 1/4-20 x 1.75

$6.99

$

In Stock, Qty 12

0

?39

MTD 747-1185

Transmission Belt Guard Rod

$

$

Not available

40

MTD 748-0416

Shoulder Spacer, .380 ID

$

$

Not available

42

MTD 754-0467

Drive Belt, Lower 90.8" Long
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

42

MTD 754-0468

Drive Belt, Upper 41.5" Long
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 12

0

43

MTD 756-0981A

Flat Idler, 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

?44

MTD 783-0667A

Transmission Torque Bracket
(Superseded to 783-0667A-0637)

Variations

MTD 783-0667A-0637

BRACKET-TRANS TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 783-0669

Idler Bracket
(Superseded to 783-0669-0637)

Variations

MTD 783-0669-0637

Idler Bracket - POWDER BLACK (0637)

$20.99

$

In Stock, only 1 left!

0

$20.99

$

In Stock, only 1 left!

0

46

MTD 647-0031

Brake Control Shaft Assembly
(Superseded to 753-05606)

$

$

Not available

47

MTD 647-0032

Speed Control Shaft Assembly
(Superseded to 647-0032A-0637)

$

$

Not available

48

MTD 683-0266

Drive Pedal Assembly

$

$

Not available

49

MTD 710-1135

Self Tapping Screw, 5/16-18 x 2.5

$

$

Not available

50

MTD 711-0736

Ferrule, 1/4-20

$13.99

$

In Stock, only 1 left!

0

51

MTD 711-1363

Pin, 3/8-16 x 2.43

$4.49

$

Usually ships in 3-6 days

0

52

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

53

MTD 732-0437

Compression Spring, .34 OD x 1.0

$10.99

$

In Stock, only 1 left!

0

54

MTD 732-0955

Extension Spring, .5 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

55

MTD 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

56

MTD 735-3049

Brake Pedal Pad
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

57

MTD 736-0140

Flat Washer, .281 x.5 x .0625

$7.49

$

In Stock, Qty 6

0

58

MTD 736-0142

Flat Washer, 9/32 x 1/2 x 1/16

$4.99

$

In Stock, Qty 20+

0

59

MTD 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

60

MTD 736-0204

Flat Washer, .344 x .062 x .03

$4.49

$

In Stock, Qty 20+

0

61

MTD 738-0155

Shoulder Screw, .437 x 1.62
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

?62

MTD 738-0507B

Shoulder Screw, .5 x .434

$4.49

$

In Stock, Qty 20+

0

63

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

64

MTD 741-3065A

Split Hex Flange Bearing
(Superseded to 741-3065B)

$8.49

$

In Stock, Qty 20+

0

65

MTD 747-1137

Cruise Control Rod

$

$

Not available

66

MTD 747-1138

Brake Lock Control Rod

$

$

Not available

67

MTD 748-0413

Cruise Latch

$32.99

$

Usually ships in 3-6 days

0

68

MTD 748-0415A

Spacer, 5/16 x 1.54
(Superseded to 748-0415B)

$7.49

$

In Stock, Qty 10

0

?69

MTD 783-0653B

Steering Support Bracket
(Superseded to 783-04612-0637)

$89.99

$

In Stock, only 3 left!

0

70

MTD 783-0732

Drive Lockout Bracket
(Superseded to 783-0732A)

$34.99

$

Usually ships in 3-6 days

0

71

MTD 783-0773

Brake Pedal

Variations

MTD 783-0773-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0773-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

MTD 783-0773-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

MTD 783-0773-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0773-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

MTD 783-0773-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

$

$

72

MTD 783-0780A

Neutral Return Bracket
(Superseded to 753-04872)

Variations

MTD 783-0780A-0637

KIT-NEUT RTN BRKT - POWDER BLACK (0637)

$

$

Not available

$

$

73

MTD 783-0693

Axle Bracket

Variations

MTD 783-0693-4008

BRACKET-AXLE - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-0693-0637

BRACKET-AXLE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

74

MTD 683-0304

Lower Frame Assembly

Variations

MTD 683-0304-0637

No Longer Available LOWER FRAM - POWDER BLACK (0637)

$

$

Not available

MTD 683-0304-0650

No Longer Available LOWER FRAM - RED METALLIC (0650)

$

$

Not available

MTD 683-0304-0665

No Longer Available LOWER FRAM - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0304-0691

No Longer Available LOWER FRAM - BLACK JACK (0691)

$

$

Not available

MTD 683-0304-0716

No Longer Available LOWER FRAM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

75

MTD 732-0963

Extension Spring, .5 OD x 6.37

$9.99

$

In Stock, only 4 left!

0

76

MTD 731-2290

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

77

MTD 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, only 1 left!

0

78

MTD 634-0202

Wheel Assembly Complete, 23 x 9.5 x 12
(Superseded to 634-0202A)

Variations

MTD 634-0202-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$323.99

$

Usually ships in 3-6 days

0

MTD 634-0202-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$323.99

$

Usually ships in 3-6 days

0

MTD 634-0202-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$323.99

$

Usually ships in 3-6 days

0

$323.99

$

Usually ships in 3-6 days

0

MTD 634-3178

Rim Only
(Superseded to 634-04238)

Variations

MTD 634-3178-0499

Rim Assembly, 12.0 X 7.0 - CUB BEIGE (0499)

$172.99

$

Usually ships in 3-6 days

0

MTD 634-3178-0662

RIM ASM:12.0 X 7.0 - OYSTER GRAY (0662)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-3178-0674

RIM ASM:12.0 X 7.0 - YARDMAN YELLOW (0674)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-3178-0688

RIM ASM:12.0 X 7.0 - SPRING GREEN (0688)

$197.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 734-1728

Tire Only, Square Shoulder

Variations

MTD 734-1728-0901

TIRE-SQUARE TREAD - Carlisle (0901)

$125.99

$

Usually ships in 3-6 days

0

MTD 734-1728-0904

TIRE-SQUARE TREAD - Cheng (0904)

$125.99

$

Usually ships in 3-6 days

0

$125.99

$

Usually ships in 3-6 days

0

?79

MTD 750-0768

Split Spacer, .25 x .37 x 1.32

$

$

Not available

80

MTD 750-0566

Spacer, .372 x .26 x 1.03
(Superseded to 750-0566A)

$9.99

$

In Stock, only 1 left!

0

81

MTD 712-3026

Jam Nut, 3/4-16

$4.99

$

In Stock, Qty 7

0

82

MTD 736-0316

Flat Washer, .78 x 1.59 x .06

$4.49

$

In Stock, Qty 20+

0

83

MTD 710-1260A

Hex Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

84

MTD 747-1185

Transmission Belt Guard Rod

$

$

Not available

85

MTD 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0
