14AQ94RP848 (GT 2200) - Toro Garden Tractor (2011) DRIVE SYSTEM ASSEMBLY Parts Diagram

Garden Tractor

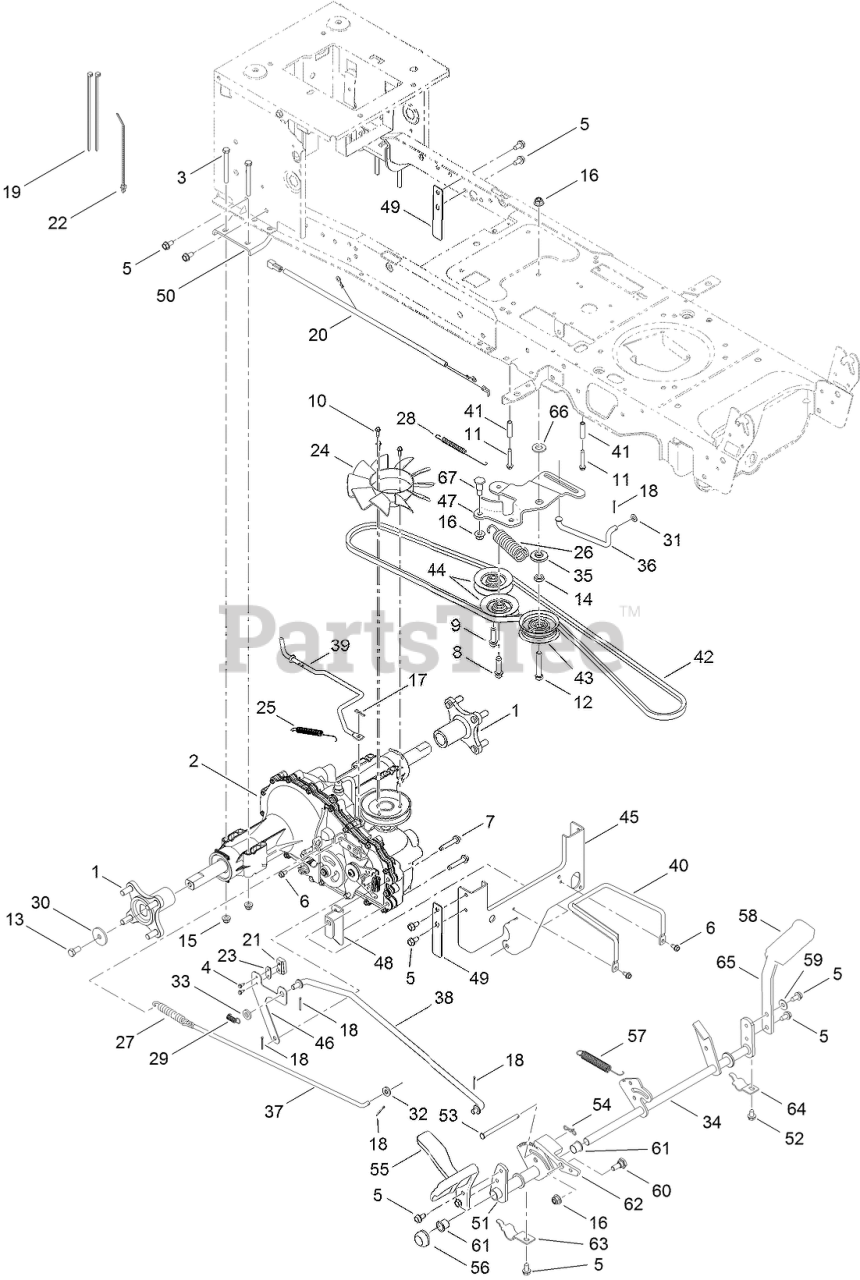

DRIVE SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0738

WHEEL HUB ASM

$

$

Not available

2

Toro 119-9085

TRANSMISSON

$3849.99

$

Usually ships in 3-6 days

0

3

Toro 112-6238

SCREW-HH

$

$

Not available

4

Toro 112-0626

SCREW-HWHTF

$7.49

$

In Stock, only 3 left!

0

5

Toro 112-6070

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

6

Toro 112-0524

SCREW-HWHTF

$7.49

$

In Stock, Qty 5

0

7

Toro 119-9086

SCREW-TAPTITE

$

$

Not available

8

Toro 112-0469

SCREW-TAP

$

$

Not available

9

Toro 112-6143

SCREW-TAP

$

$

Not available

10

$

$

Not available

11

Toro 112-0839

SCREW-TAP

$6.99

$

In Stock, only 2 left!

0

12

Toro 112-6009

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

13

Toro 112-0768

SCREW-HH

$

$

Not available

14

Toro 112-0493

NUT-JAM

$7.49

$

In Stock, only 4 left!

0

15

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

16

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

17

Toro 112-0459

PIN-COTTER

$

$

Not available

18

Toro 112-0568

PIN-COTTER

$7.99

$

In Stock, only 2 left!

0

19

Toro 112-0527

TIE-CABLE

$7.49

$

Usually ships in 3-6 days

0

20

Toro 119-8489

HARNESS-JUMPER

$33.99

$

Usually ships in 3-6 days

0

21

Toro 112-0602

SWITCH-SPRING, SHORT

$14.99

$

Usually ships in 3-6 days

0

22

Toro 112-0866

TIE-CABLE

$7.49

$

Usually ships in 3-6 days

0

23

Toro 112-0625

PLATE-INSULATOR

$8.49

$

Usually ships in 3-6 days

0

24

Toro 119-9088

FAN-BLADE

$76.99

$

Usually ships in 3-6 days

0

25

Toro 112-6244

SPRING-EXTENSION

$

$

Not available

26

Toro 119-9142

SPRING-EXTENSION

$

$

Not available

27

Toro 112-0350

SPRING-EXTENSION

$23.99

$

In Stock, only 1 left!

0

28

Toro 119-3989

SPRING-EXTENSION

$19.99

$

Usually ships in 3-6 days

0

29

Toro 112-0875

SPRING-EXTENSION

$16.99

$

Usually ships in 3-6 days

0

30

Toro 112-0534

WASHER-FLAT

$

$

Not available

31

Toro 119-8492

WASHER-FLAT

$8.99

$

Usually ships in 3-6 days

0

32

Toro 112-0579

WASHER-FLAT

$11.99

$

Usually ships in 3-6 days

0

33

Toro 112-0544

WASHER-FLAT

$7.49

$

In Stock, Qty 6

0

34

Toro 119-8429

BRAKE CONTROL ASM

$

$

Not available

35

Toro 119-8419

SPACER-SHOULDER

$9.99

$

Usually ships in 3-6 days

0

36

Toro 119-8420

ROD-BYPASS, FOOT PEDAL

$27.99

$

Usually ships in 3-6 days

0

37

Toro 119-9089

ROD-BRAKE

$

$

Not available

38

Toro 119-9090

ROD-CONTROL

$

$

Not available

39

Toro 119-9091

ROD-DISENGAGE

$

$

Not available

40

Toro 119-9092

KEEPER-BELT

$28.99

$

Usually ships in 3-6 days

0

41

Toro 112-5831

SPACER

$8.99

$

In Stock, only 4 left!

0

42

Toro 119-9093

BELT-V

$77.99

$

Usually ships in 3-6 days

0

43

Toro 112-0313

PULLEY-IDLER, FLAT

$55.99

$

Usually ships in 3-6 days

0

44

Toro 112-6149

PULLEY-IDLER, Y TYPE

$50.99

$

In Stock, only 4 left!

0

45

Toro 119-9104

BRACKET-TORQUE

$

$

Not available

46

Toro 112-6243

BRACKET-ACTUATOR, SWITCH

$

$

Not available

47

Toro 119-8427

BRACKET-IDLER, CENTER DOUBLE

$67.99

$

Usually ships in 3-6 days

0

48

Toro 119-9094

BRACKET-DECK

$

$

Not available

49

Toro 119-9095

BRACKET-PLATE

$

$

Not available

50

Toro 119-9105

BRACKET-AXLE

$45.99

$

Usually ships in 3-6 days

0

51

Toro 119-9096

BRACKET-PEDAL, HYDRO

$

$

Not available

52

Toro 112-0556

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

53

Toro 119-8431

PIN-CLEVIS

$

$

Not available

54

Toro 112-0990

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

55

Toro 119-8499

PEDAL-CONTROL
(Superseded to 125-1800)

$

$

Not available

56

Toro 119-8432

CAP-PUSH

$

$

Not available

57

Toro 119-8433

SPRING-EXTENSION

$12.99

$

Usually ships in 3-6 days

0

58

Toro 119-8434

PAD-PEDAL, BRAKE

$

$

Not available

59

Toro 112-0435

WASHER-BELL

$

$

Not available

60

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

61

Toro 119-8435

BEARING-FLANGE

$

$

Not available

62

Toro 119-8436

LATCH-CRUISE

$

$

Not available

63

Toro 119-8437

BRACKET-STRAP, PEDAL SUPPORT

$

$

Not available

64

Toro 119-8438

BRACKET-STRAP, PEDAL SUPPORT

$

$

Not available

65

Toro 119-8439

BRACKET-PEDAL, BRAKE

$36.99

$

Usually ships in 3-6 days

0

66

Toro 119-9065

WASHER-FLAT

$9.99

$

Usually ships in 3-6 days

0

67

Toro 119-9143

SCREW-SHOULDER

$18.99

$

Usually ships in 3-6 days

0
