14AQ81TK766 - Troy-Bilt Big Red 54" Garden Tractor (2006) Engine Accessory Parts Diagram

Big Red 54" Garden Tractor

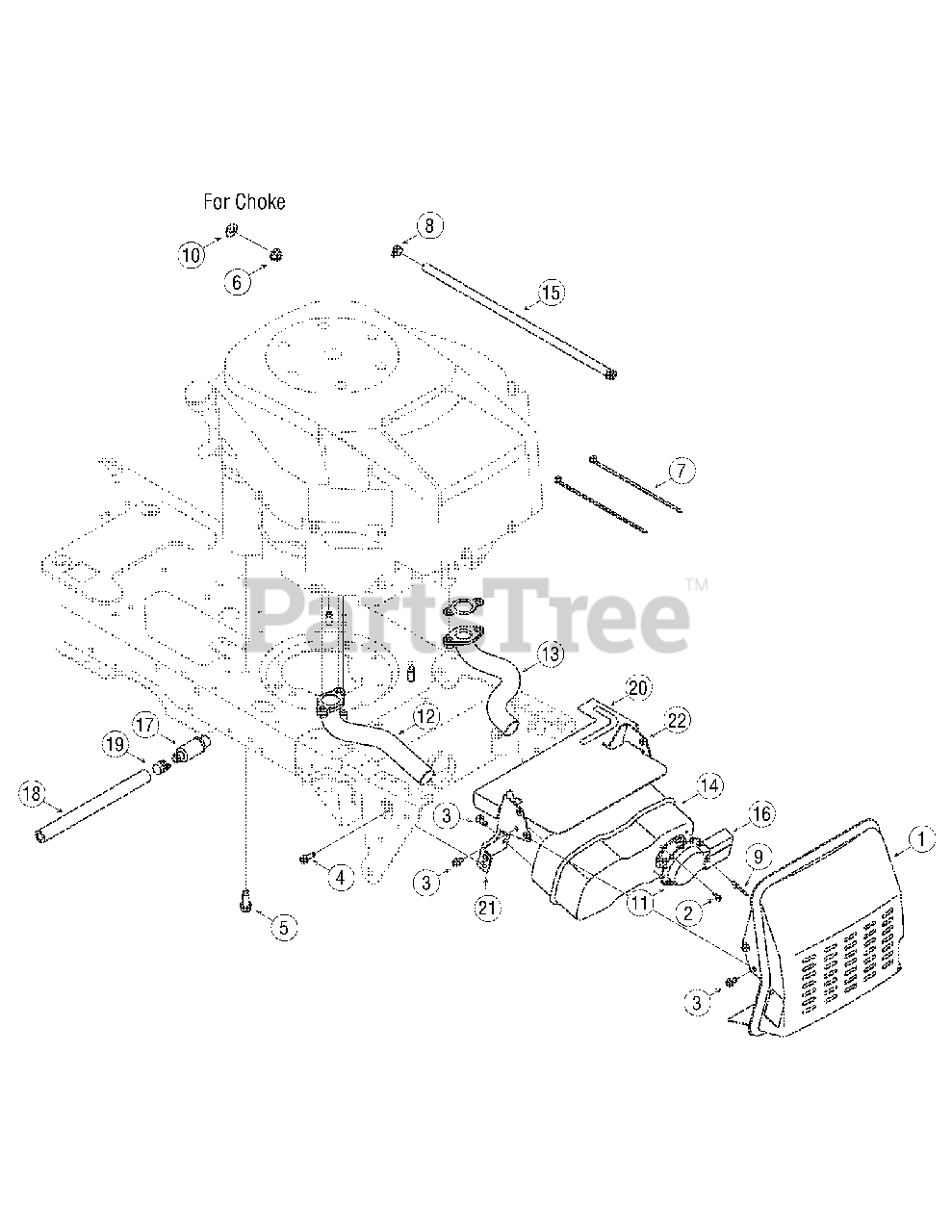

Engine Accessory Parts Diagram

  • Title
1

Troy-Bilt 683-04256

Muffler Shield Assembly
(Superseded to 683-04256-0637)

Variations

Troy-Bilt 683-04256-0637

Muffler Shield Assembly - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0227

AB Screw #8-18 x.500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0599

TT Screw 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0642

TT Screw 1/4-20 x.750

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0654A

TT Sems Screw 3/8-16 x 1

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-3005

Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

9

$6.99

$

In Stock, Qty 7

0

10

Troy-Bilt 736-0300

Flat Washer.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 751-10006

Exhaust Pipe RH

$152.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 751-10007

Exhaust Pipe LH

$223.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 751-10161

Dual Inlet Muffler
(Superseded to 951-10161)

$86.99

$

In Stock, only 1 left!

0

15

$9.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 751-10353

Muffler Deflector, Long
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 751-3141

Oil Drain Hose Extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

19

Troy-Bilt 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

20

Troy-Bilt 783-04573

Muffler Bracket LH

Variations

Troy-Bilt 783-04573-0637

Muffler Bracket, LH - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04573-4008

BRACKET:MFLR:LH - WINE RED (4008)

$6.49

$

In Stock, only 1 left!

0

$18.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 783-04574

Muffler Bracket RH

Variations

Troy-Bilt 783-04574-0637

Muffler Bracket, RH - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-04574-4008

BRACKET:MFLR:RH - WINE RED (4008)

$

$

Not available

$

$

22

Troy-Bilt 783-04783

Heat Shield
(Superseded to 783-04783A)

$

$

Not available
